Automatic Large Size Heat Print Machine With High Temperature

Categories Heat Sublimation Machine
Brand Name: SAER
Model Number: SR 3200
Certification: CE Certification
Place of Origin: Shanghai of China
MOQ: 1 Set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 1000 sets per month
Delivery Time: Whithin 5 working days after receive the payment
Packaging Details: Non fumigation wooden pakage
Product Name: Heat Sublimation machine
Color & Page: Multicolor
Dimensions(L*W*H): 4350mm*1310mm*1230mm
Usage: Textile fixation
Working width: 3200mm
Color Mode: Dual CMYK
Take Up working Method: Directly Out Or Roll To Roll
Gross Weight: 680kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    Automatic Large Size Heat Print Machine With High Temperature

    Automatic Large Size Heat Sublimation Machine With High Temperature


    Consist of


    3.2M Sublimation machine and one filter


    Products Features


    1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.

    2. Our machine have excellent heat insulation,can save more power for you.

    3. Easy to load the media in and out oven during your machine working

    4. Blackbody tube have more thermal efficiency

    5. Intelligent PID Temperature Control

    6. Feeding and Taking up Are synchronous
    7. Perfect oil & water collect solution in oven..

    8. Quick Tail Gas Treatment
    9. Convenient to Maintain
    10. Easy to Set up and Operate

    11. Easy to open the caver to clean inside of oven
    12. Easy to change the active carbon from the filter

    13. Perfect heat insulation,can touch our machine without danger of scald


    Adopting the most advanced thermal energy technology low power consumption,saves electricity and conserve energy costs.


    Specifications


    Product Name

    Direct Heat Sublimation machine

    Model

    SR 3200

    Blackbody Tube Working Model

    Far Infrared

    Mainly Use

    Appear and fix the printed ink color

    Power

    6.5kw(include filter fan)

    Maximum Width

    3200mm

    Heat Tube Dimension

    3400mm

    Working Temperature Control

    Room temperature ~250°C

    Temperature Control Method

    PID

    Tension Control

    3kg(optional counterweight to control tension)

    Maximum Speed

    0~2800mm/min

    Filter Fan Speed

    0~300m³/h

    Filter Fan Power

    400W

    Working Voltage

    220v 50hz

    Machine size

    4350mm*1310mm*1230mm(not include filter

    Net Weight

    625kg(not include filter)

    Gross Weight

    1025kg(Include filter and package)

    Operating mode

    Instrument control, manual, automatic opera

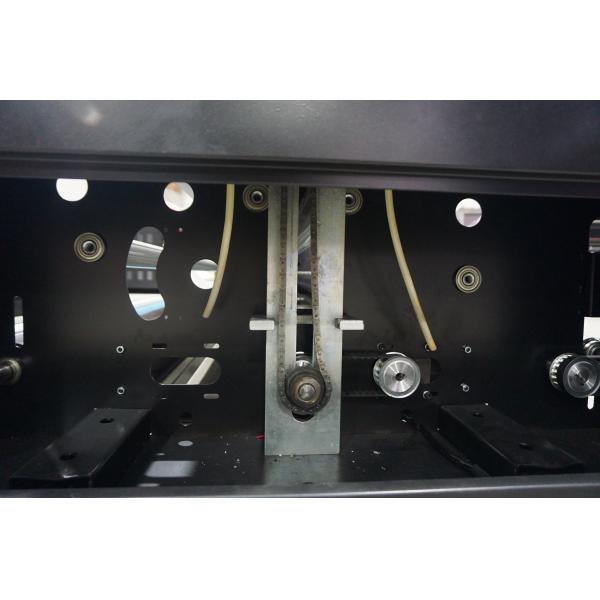

    Machine Detail Picture:




    Advantage


    1. Sublimation machine includes a heater and a filter.
    2. It can be joint with any piezo printer such as Mutoh,Mimaki, Roland etc. printer for sublimation printing.
    3. Sulimation machine can fix the color of the printed fabric and make color brighter by high temperature.

    4. the printed fabric by sublimation machine has good effect , it can wash and does not fade.


    Applications


    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.


    After Sales Service


    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier


    Heated Samples
