| Categories | Cable Stringing Equipment |
|---|---|
| Brand Name: | Boyu |
| Model Number: | TY2x70 |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets/month. |
| Delivery Time: | 15~25 days |
| Packaging Details: | Container |
| Type: | Tension Machine For Overhead Stringing |
| Max intermittent pull: | 2x70kN |
| Max continuous pull: | 2x60kN |
| Bull-wheel diameter: | 1700mm |
| Max conductor diameter: | 45mm |
| Overall dimension (length*width*height): | 4700*2300*2700mm |
| Engine: | Cummins |
| Diesel: | 77kw(103hp) |
| Company Info. |
| Yixing Boyu Electric Power Machinery Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

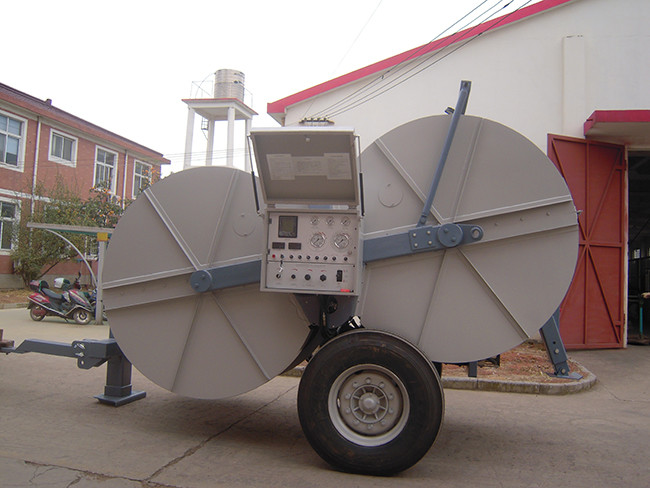

Cable Stringing Equipment TY2x70 Max Intermittent Pull 2x70kN Tension Machine For Overhead Stringing
TY2x70 Hydraulic Tensioner The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains | |
Characteristics Bull-wheel diameter: 1700mm Max conductor diameter: 45mm Groove number: 2x6 Total weight: 9000kg Overall dimension (length*width*height):4700*2300*2700mm | Performance Max intermittent pull: 2x70kN Max continuous pull: 2x60kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 2x30kN/1x60kN Max reverse pulling force: 2*60kN/1*120kN Max reverse pulling speed: 3km/h |
Main configuration Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor: German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth | Engine Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V |
Hydraulic Transmission The machine can realize step less speed. The machine is provided with tension presetting system. | |
Configuration 2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Hydraulic oil cooling system 2 digital meter and speed counters Control instruments for hydraulic system and diesel engine Rigid axle for towing at max speed of 30km/h with mechanical parking brake Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor Grounding connection point | Additional Devices Lighting system for the trailer 2 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller Trailer for towing at max speed of 30 km/h Digital speed and meter counter Air brake system for the trailer |
| Other Model | |||||
| Model | Bull-wheel diameter | Max conductor diameter | Groove number | Total weight | Overall damension |
| mm | mm | kg | mm | ||
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 |
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 |
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 |
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 |
| TY2x70IV | 1500 | 40 | 2x8 | 10000 | 5500*2280*2700 |
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 |
| TY4x50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
| Other Model | |||||||||
| Model | Max intermittent tension | Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | km/h | kw(hp) | V | ||
| TY2X35 | 2x40/ 1x80 | 2x35/ 1x70 | 2.5 | 5 | 2x20/ 1x40 | 5 | 77(103) | Water | 24 |
| TY2X40 | 2x45/ 1x90 | 2x40/ 1x80 | 2.5 | 5 | 2x20/ 1x40 | 5 | 77(103) | Water | 24 |
| TY2X50 | 2x55/ 1x110 | 2x50/ 1x100 | 2.5 | 5 | 2x25/ 1x50 | 5 | 77(103) | Water | 24 |
| TY2X70 | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 5 | 77(103) | Water | 24 |
| TY2x70IV | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 5 | 77(103) | Water | 24 |
| TY2X90 | 2x100/ 1x200 | 2x90/ 1x180 | 2.5 | 5 | 2x40/ 1x80 | 2 | 130kw (2500r/min) | Water | 24 |
| TY4x50 | 4x50/ 2x200 | 4x40/ 2x80 | 2.5 | 5 | 4x20/ 2x40 | 1.25 | 77(103) | Water | 24 |
|
