| Categories | PCAP Touch Monitor |
|---|---|
| Brand Name: | KeeTouch |
| Model Number: | KOT-0101U-CA4P |
| Certification: | FCC, CE, CB, RoHS,UL,BIS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1piece |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Pieces per Week |
| Delivery Time: | 7-15 work days |
| Packaging Details: | Carton |
| Suggested Resolution: | 1280*800 |
| Brightness: | 300cd/m2 |
| Contrast Ratio (Typ.): | 8000:1 |
| Video Input: | VGA/HDMI |
| Support Colors: | 16.2M |
| Response Time: | 16s |
| Thickness: | 3.75±0.2(mm) |
| Touch Test: | ≥50,000,000 times |
| Product name: | PCAP Touch Monitor |
| Warranty: | one year |
| Company Info. |
| Keetouch Co., Ltd. |
| View Contact Details |
| Product List |
PCAP Touch Monitor Description
It is designed with flat Aluminum bezel and looks very modern sleek to meet your installation need. The size range of our regular LCD PCAP touch screen monitor is from 7 inch to 43 inch, the other sizes can be tailored to meet customers’ need.
PCAP Touch Monitor Specifications
| Complete Machine | ||||
| Model No. | KOT-0101U-CA4P(KOT-101P-002) | |||
| Type | OT | |||
| Display Type | 16:10 Ratio 10.1＂TFT-LCD, LED backlight | |||
| Active Area | 216.96*135.6(mm) | |||
| Monitor Dimensions (W*H*D) | 259.5*182.5*50(mm) | |||
| Suggested Resolution | 1280*800 WXGA | |||
| Support Colors | 16.2M | |||
| Brightness (Typ.) | Pure LCD Panel | 300cd/m2 | ||
| With Touch Monitor | 255cd/m2 | |||
| Response Time (Typ.) | 16ms | |||
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 85°/85° | ||
| Vertical(up/down) | 85°/85° | |||
| Contrast Ratio (Typ.) | 800:1 | |||
| Video Input | VGA/HDMI | |||
| Frequency (H/V) | 30～80KHz / 60～75Hz | |||
Power Supply | Type: External brick Display voltage: DC 12V±5% Input (line) voltage: 100-240 VAC, 50-60 Hz | |||
Environment | Operating Temp. | 0～50°C | ||
| Operating RH | 20%～80% | |||
| Storage Temp. | -20～60°C | |||
| Storage RH | 10%～90% | |||
| MTBF | ≥ 50,000 hours | |||
| LED Back Light Life (Typ.) | ≥ 50,000 hours | |||
| Weight(N.W/G.W) | 1.85Kg(1 pcs)4.5Kg(2pcs in one package) | |||
| Package dimensions | 332*220*285mm(2pcs in one package) | |||
| Power Consumption | Standby Power: ≤1W Operating Power: ≤13W | |||
| Mount Interface | 1. VESA 75mm 2. Mount bracket, horizontal or vertical mount | |||
| OSD Control | Buttons | AUTO,+,POWER,-,MENU | ||
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |||
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS | |||
| Regular Warranty | 1 year | |||
| Touch Screen | |
| Touch Type | 10.1" capacitive touch screens |
| Touch input | USB |
| Response Time | ≤10ms |
| Hardness | 6H |
| Light Transmittance | >85% |
| Support System | WIN7,WIN8,WIN10support 10points, XP support single point |
| Active Area | 216.96*135.6(mm) |
| Thickness | 3.75±0.2(mm) |
| Touch Test | ≥ 50,000,000 times |
| Input Voltage | DC 5V±5% |

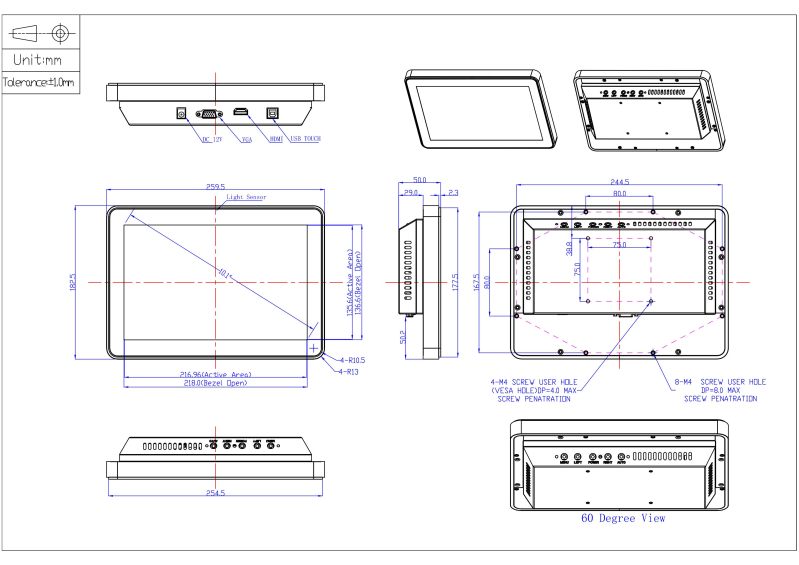

PCAP Touch Monitor Mechanical Dimensions
Our Advantages:
1) Comprehensive product lines:
PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PC, sheet metal cases.
2) Lead time
We have the stock of regular PCAP touch monitor for urgent order.For bulk order or customized items, we will do our best to provide them as fast as we can to meet your lead-time without any delay.
3) After-services
Our after-services team is ready for you everyday for any technique problem, quick solve the problem for you, and also can fly to your location to support if necessary.
Applications
Our PCAP Touch Monitors are extensively mounted in industries for retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
FAQ
1. What’s your MOQ?
Our minimum order quantity is 1pc only.
2. What are the shipping ways?
We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
3. What package do you provide?
Our package usually is carton.
|
