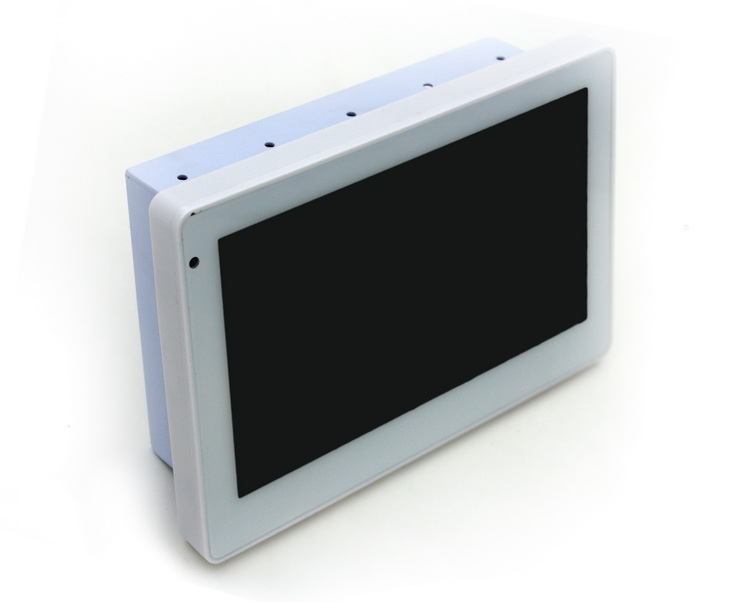

Tablet PC With Uart TTL RS232 RS485 Serial Port

Tablet PC With Uart TTL RS232 RS485 Serial Port

For smart home and control

• IPS Screen (G+G glass)
• Android OS
• Inwall / Onwall version
• CBVS , HDMI, Serial port , GPIO , Uart interface
• No buttons design
• Slim Body with 3 Brackets for wall mounting
• Camera & Mic
• Support ROOT permissions for private application
• No battery design
• Auto power on
• 12V DC / 24V DC available for power
• Auto web application (one web page can be showed only on the screen)
• POE feature (IEEE 802.3 af)

Builtin HDMI (standard ) jack, CVBS port, Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out.



It is Wall Tablet / Desk Tablet, no battery , no buttons (with auto power on feature), it is a serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...

Q896 INTERFACE:

1.HDMI OUT
2.CVBS IN
3.DC IN (9-24V)
4.RJ45
5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING

Built in 2 Uart interfaces which could be converted to TTL / RS232 / RS485 GPIO for different applications:

Tablet PC with RS485 on the back (uart converted):

Tablet with RS232 (DB9):

Schematic diagram of embedded installation:



Dimensions:



Powerful Android screen can be used for many applications, more details can be showed if any need, welcome OEM orders.
