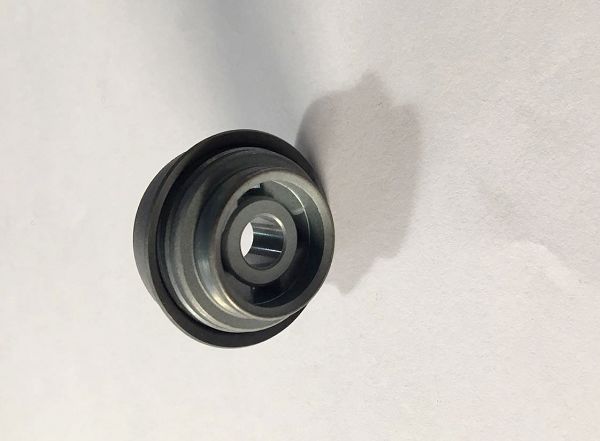

Good Tensile Strength Bushing Wafer Banded Piston Applied In Automotive Front Shocks

Good tensile strength bushing wafer banded piston applied in automotive front shocks

Four square holes design
the pistons are used in primary market
lateral force 800N added after piston is inclosed in dampers,amplitude +/-25mm,
piston ring don't drop down and no abnormal abrasion after 4 million times vibration
net weight is 28.58g

Specifications:

Main property of our parts for shock absorber:

1.Density of powder metallurgy piston: no less than 6.3g/cm3
2.Density of powder metallurgy valve seat: no less than 6.5g/cm3
3.Density of powder metallurgy rod guide: no less than 6.6g/cm3
4.Efficiency steaming treatment and surface treatment
5.Good quality and competitive price

Description:

SPEC: D35XD8X11.5

Unique design for the fluid channels

Material: Fe-C-Cu for sinter piston, PTFE + graphite for PTFE disc

Density is 6.0 g / cm3

Steam treatment for sinter piston

Net weight is 38.32g

XIA YI is engaged in developing and manufacturing different kinds of shock absorber piston absorber pistons, they have advantages of low friction, good seal etc. We have test machines such as hardness meter (D), projector, analysis balance, friction wear testing machine, blow-off testing machines, fatigue testing machine and so on. Other items that we can't test in our company, we will send standard block samples to Shanghai Plastics Research Institute, so that we can assure the consistency of the raw material.

We have set up good cooperative relationship with some big shock absorber factories home and abroad. Our mass production piston types are:ø25,ø27,ø30,ø31,ø32,ø35,ø36,ø40,ø45.

Advantages:

multi-lip piston

Superior hard chrome piston finish

Maximum safety and stability

Available for different types of vehicles

Customer own design available

Optimum corrosion resistance

Superior design and engineering

Applications:

Car or motorbike shock absorbers

Sinter parts widely used in :
1) Electric power tools parts
2) Pneumatic tools parts
3) Types of Gears / Pinion / Sprocket / Helical Gear/Belve gear/Gear box etc.
4) Garden Tools parts
5) Automobile Parts
6) Structure parts
7) Sinter Copper alloy Powder metallurgy parts
8) Sintered stainless steel parts

Competitive Advantage:

Fast delivery

Good quality

Professional team with much experience

Picture show:

XIAYI, founded in 2006, was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. XIAYI is a specialized factory that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery parts and related automatic equipment. XIAYI has a strong R&D team with full of creative spirit. XIAYI develop new products and new equipment every year and was awarded two patents of utility model and invention patents.

The products include shock absorber piston, rod guider, base valve, oil seal, piston rod, bracket, spring seat, valves, guide pipe, bearing bush, copper bush, guide ring, PTFE ring and gasket, in addition XIAYI design and manufacture automatic machine such as banding machine and groove cutting machine.

As a manufacturer, XIAYI insists on pursuing better quality on and on. We control the quality from raw material to assure the consistency from one batch. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact before delivery.

As a seller, our products are exported to the whole world and sold nationally for more than 8 years. About 30% parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationship with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. XIAYI persons will always welcome customers from all over the world to visit and negotiate.
