| Categories | Subminiature Fuse |
|---|---|
| Brand Name: | Aolittel |
| Model Number: | MTS |
| Certification: | UL,CUL,VDE,CQC,PSE,KC,ROHS |
| Place of Origin: | Dongguan,China |
| MOQ: | 1000PCS |
| Price: | USD 0.018 to 0.03 Per Piece |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 7,000,000 Pieces Per Week |
| Delivery Time: | 7 Workdays |
| Packaging Details: | Bulk;1000pcs/Bag 5 Bag/Box 4 box /Carton 40*26*25cm 16.5kg/Carton Tape:1000pcs/box 10 box /carton 58*36*23cm 9.5kg/Carton |
| Product Type: | Time Lag Subminiature Fuse 8.4mm 250V |
| Color: | Black (Brown can be available if required) |
| Rated Voltage: | 250VAC |
| Rated current: | 50mA-10A |
| Breaking Capacity: | 100A |
| Characteristic: | Time-Lag T |
| Mounting: | PCB,THT |
| Admissible Ambient Air Temp.: | -55 °C to 125 °C |
| Climatic Category: | 40/085/21 acc. to IEC 60068-1 |
| Housing Material: | Thermoplastic, UL 94V-0 |
| Terminal material: | Tin-Plated Copper |
| Unit Weight: | 0.78 gram |
| Storage Conditions: | 0 °C to 40 °C, max. 70% r.h. |
| Soldering Methods: | Wave |
| Solderability: | 235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta |
| Resistance to Soldering Heat: | 260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb |
| Resistance to Vibration: | acc. to IEC 60068-2-6, test Fc |
| Life Test: | 1000h @ 0.60 x In @ 70°C (acc. to EIA/IS-722, Test 4.4.1) |
| Load Humidity Test: | MIL-STD-202, Method 103B 0.1 x In @ 0.85 r.H. @ 85°C |
| Moisture Resistance Test: | MIL-STD-202, Method 106E (50 cycles in a temp./mister chamber) |
| Terminal Strength: | Tensile load min. 9 N (acc. to EIA/IS-722, Test 4.5.5) |
| Case Resistance: | acc. to EIA/IS-722, Test 4.7 >100 MΩ (between leeds and body) |
| Mechanical Shock: | MIL-STD-202, Method 213B (Shock 50g, half sine wave, 11 ms) |
| Resistance to Solvents: | MIL-STD-202, Method 215A |
| Flammability: | UL 94V-0 (acc. to EIA/IS-722, Test 4.12) |
| Current Carrying Capacity: | acc. to EIA/IS-722, Test 4.3.3 |
| Company Info. |
| Aolittel Technology Co.,Ltd |
| View Contact Details |
| Product List |
Eaton Cooper Bussmann SR-5 Substitute Time Lag Subminiature Fuse 8.4mm 250V With Global Certificates
Description
Ao littel MTS Subminiature Fuse are in radial leaded and time-lag thru-hole ,it is international accepted for primary and secondary overcurrent protection since designed to IEC 60127-3,Sheet 4 and can mount into PCB or plug into BK/PCS holder directly, also along with high inrush withstand capability.Nowadays, SMT technology became mature and trend would be SMT manufacturing and prodcut would be smaller and smaller, Ao littel MTS subminiature fuse is compatible with leaded and lead-free reflow and wave solder.Recently, we also developed new product smaller size and high voltage type-300V/350V,contact us to get further info.
__________________________________________________________________________
Download________
| Ao littel Subminiature Fuse Family Member | ||||
| No. | Voltage | Blow | Series | Remark |
| 1 | 250V | Time Lag | MTS | |
| 2 | 250V | Fact-acting | MFS | |
| 3 | 300V | Time Lag | NTS | |
| 4 | 300V | Fact-acting | NFS | |
| 5 | 350V | Fact-acting | FMS | |
| 6 | 350V | Time Lag | TMS | |
| 7 | 250V/300V | Time Lag | MTC | Mini size |
Agency Overview
Agency | Ampere Range | Agency File Number |
| UR | 50mA ~ 6.3A | E340427(JDYX2) |
| C-UR | 50mA ~ 6.3A | E340427(JDYX8) |
| VDE | 50mA ~ 6.3A | 40039420 |
| CQC | 50mA ~ 6.3A | CQC16012154495 |
| PSE | 50mA ~ 6.3A | PSE16021073 |
| KC | 50mA ~ 6.3A | SU05052-16004/16005/16006 |
Advantages
• Solderability: EIA-186-9E Method 9
• High frequency vibration: MIL-STD-202F,Method 201A
• Operating temperature: -55°C to +125°C
• Soldering heat resistance: 260°C, 10 Sec. max (IEC 60068-2-20)
• Reduced PCB space requirements
• Direct solderable or plug-in versions
• Internationally approved
• Low internal resistance
• Shock safe casing
• Vibration resistant
• Available from 0.050A to 10A
• Fully automatic production by machine can keep competitive
Electrical Characteristics
● Approved
○ Pending
Part No. | Ampere Rating | Voltage Rating | Max Voltage Drop (mv) | I2TMelting Integral(A2.S) | Agency Approvals | ||||
| UL | VDE | CQC | PSE | KC | |||||
| MTS0050A | 50mA | 250V | 555 | 0.02 | ● | ○ | ○ | ○ | ○ |
| MTS0100A | 100mA | 250V | 355 | 0.11 | ● | ○ | ○ | ○ | ○ |
| MTS0125A | 125mA | 250V | 323 | 0.12 | ● | ○ | ○ | ○ | ○ |
| MTS0160A | 160mA | 250V | 296 | 0.17 | ● | ○ | ○ | ○ | ○ |
| MTS0200A | 200mA | 250V | 272 | 0.21 | ● | ○ | ○ | ○ | ○ |
| MTS0250A | 250mA | 250V | 251 | 0.41 | ● | ○ | ○ | ○ | ○ |
| MTS0315A | 315mA | 250V | 237 | 0.63 | ● | ○ | ○ | ○ | ○ |
| MTS0400A | 400mA | 250V | 211 | 1.22 | ● | ○ | ○ | ○ | ○ |
| MTS0500A | 500mA | 250V | 202 | 2.34 | ● | ● | ● | ● | ● |
| MTS0630A | 630mA | 250V | 191 | 2.88 | ● | ○ | ○ | ○ | ○ |
| MTS0800A | 800mA | 250V | 172 | 3.92 | ● | ○ | ○ | ○ | ○ |
| MTS1100A | 1A | 250V | 200 | 5.77 | ● | ● | ● | ● | ● |
| MTS1125A | 1.25A | 250V | 200 | 8.34 | ● | ○ | ○ | ○ | ○ |
| MTS1160A | 1.6A | 250V | 190 | 13.60 | ● | ● | ● | ● | ● |
| MTS1200A | 2A | 250V | 170 | 25.90 | ● | ● | ● | ● | ● |
| MTS1250A | 2.5A | 250V | 170 | 42 | ● | ● | ● | ● | ● |
| MTS1300A | 3A | 250V | 165 | 45 | ● | ○ | ○ | ○ | ○ |
| MTS1315A | 3.15A | 250V | 150 | 64 | ● | ● | ● | ● | ● |
| MTS1400A | 4A | 250V | 130 | 92 | ● | ○ | ○ | ○ | ○ |
| MTS1500A | 5A | 250V | 130 | 140 | ● | ● | ● | ● | ● |
| MTS1630A | 6.3A | 250V | 130 | 208 | ● | ● | ● | ● | ● |
| MTS1800A | 8A | 250V | 100 | 265 | ○ | ○ | ○ | ○ | ○ |
| MTS2100A | 10A | 250V | 100 | 295 | ○ | ○ | ○ | ○ | ○ |
Fusing Characteristics
% of Ampere Rating(In) | Blowing Time |
| 150%* In | 60 min Minimum |
| 210%* In | 2 min Max |
| 275%* In | 400 ms~10 s |
| 400%* In | 150 ms~3 s |
| 1000%* In | 20 ms~150 ms |
Dimension in mm
Packaging
a.The following items indicated on the label:
Part number, ratings (voltage, current), interrupting type and safety mark.
b. Packing Quantity
A:
Bulk packing:
Bulk 1000 pcs in per poly bag;
5 poly bags in per inner box(L240±2 * W170±2 * H110±2);
4 inner boxes in per outer carton(L240±2 * W170±2 * H110±2)
Weight : 16.5kg/Carton
B:
Taped packing:
1000 pcs per inner box(L328±2 * W197±2 * H40±2)
10 inner boxes per outer carton(L580±5 * W360±5 * H230±5)
Weight : 9.5kg/Carton
Reliable Test
| Materials | Base/Cap: Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins: Copper, Tin-plated |
| Lead Pull Strength | 10 N (IEC 60068-2-21) |
| Solderability | 260ºC, ≤ 3s. (Wave) 350ºC, ≤ 1s. (Soldering Iron) |
| Soldering Heat Resistance | 260ºC, 10s. (IEC 60068-2-20) 350ºC, 3s. (Soldering Iron) |
| Operating Temperature | -40ºC to +85ºC (Consider re-rating) |
| Climatic Category | -40ºC/+85ºC/21 days IEC 60068-1,-2-1,-2-2,-2-78) |
| Stock Conditions | +10ºC to +60ºC RH ≤ 75% yearly average, without dew, maximum value for 30 days-95% |
| Vibration Resistance | 24 cycles at 15 min. each (IEC 60068-2-6) 10 - 60 Hz at 0.75 mm amplitude 60 - 2000 Hz at 10G’s acceleration |
Ao littel Fuse Factory Tour

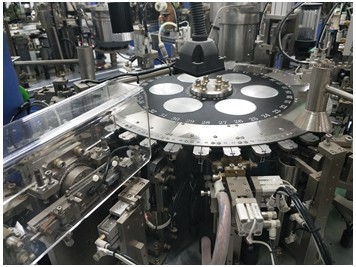

Fuse Element Production Machine |
Fuse assembly machine |
SMD Fuse Machine |
Subminiature fuse element machine |
Taping Machine for Subminiature Fuse |
IQC Inspection |
Surge testing |
Workshop |
|
|
 |  |
|
