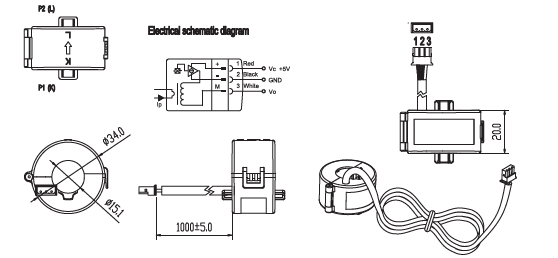

Small Size DC/AC Split Core Current Transformer / Split Core Current Sensor

100A 50/60Hz Sensor Split Core Current Transformer DC/AC Current Transformer

Feature:

Small size
Low temperature drift, broad band

Perfect reaction time
Without the insertion loss, strong anti-jamming capability

Current Overload Ability

Application:

Static conversion for DC motor traction static conversion

Speed regulation of ACfrequency conversion ,servo motor

Power supply for battery/welding machine UPS'SMPS

Usage Instruction:

1. Primary current direction should be as per the arrow in CT case.
2. Primary conductor temperature not more than 1000C
3. When primary conductor fully occupy the CT hole, then performance of di/dt and response time are the best

Attention:

The core surface should be waterproof.
If core surface is rust, it should be polished for removing rust and coated with rust-proof oil.
Keep surface of core clean.
Can design product as per customers' special requirements.

Company information:

Shenzhen Chuangyin Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test equipments, by many years’ experience for three dedicated engineering teams, the annual output of medium &low current transformer and voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.

Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. Factories and products have passed ISO9001:2015, ISO 14001：2015， ISO 45001:2018 UL, CQC, CE, KEMA CNAS certificates.

ISO 9001-2015 COMPLETA.pdf

Chuangyin’s product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.
