| Categories | Inverters |
|---|---|
| Brand Name: | Hanfong |
| Model Number: | XA-150 |
| Certification: | CE ROSH ISO |
| Place of Origin: | Guangzhou |
| MOQ: | 100pcs |
| Price: | $9.68/pcs |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 20000pcs/month |
| Delivery Time: | 25 working day |
| Packaging Details: | 69*41.5*23.6cm 40 piece/carton |
| Colour: | black |
| Net Weight: | 0.42kg |
| Gross Weight: | 0.65kg |
| Overall Dimension: | 15*10.2*5.7cm |
| Package Dimension: | 20*10.7*6.7cm |
| Carton Dimension: | 69*41.5*23.6cm 10 piece/carton |

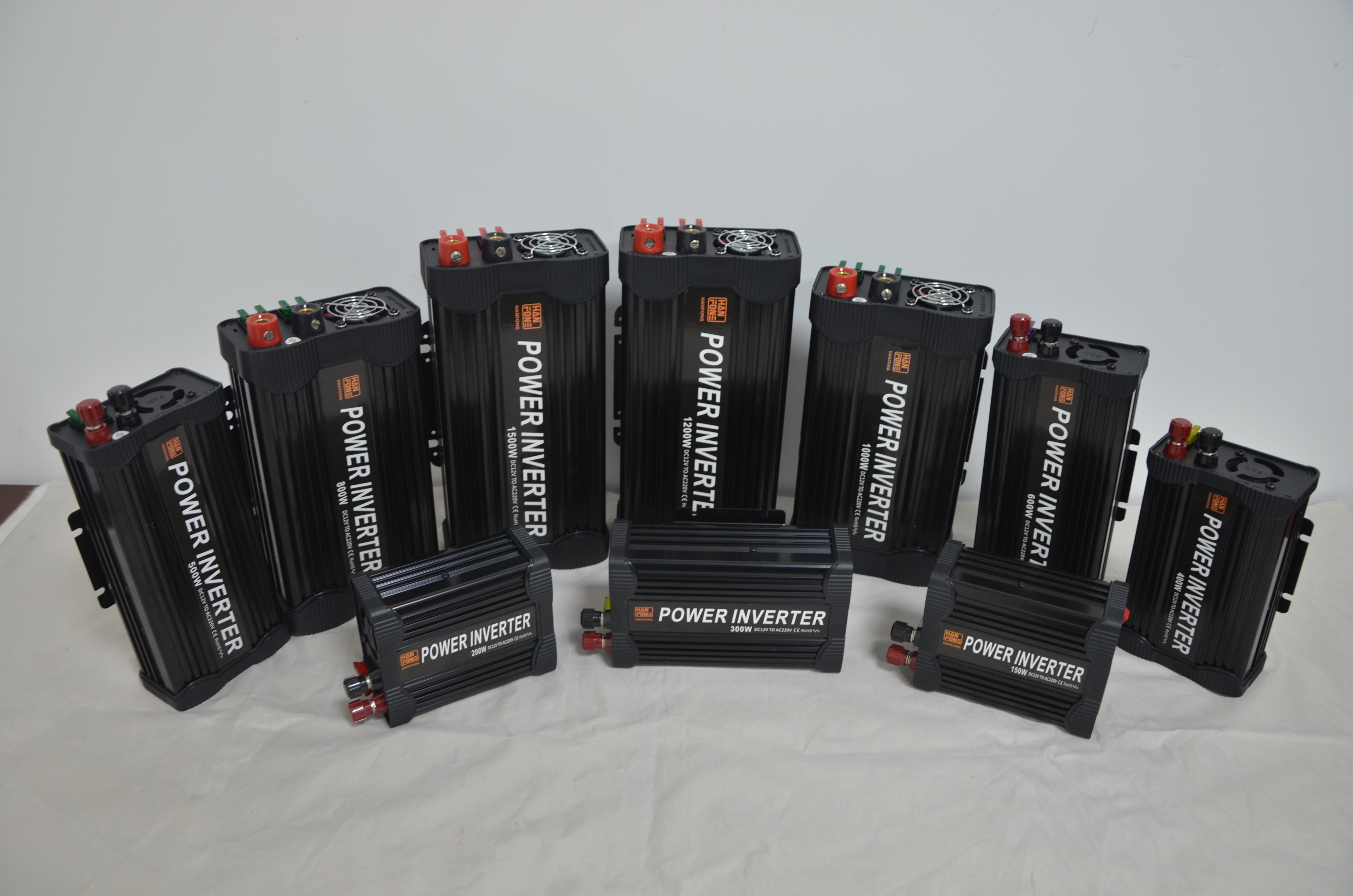

XA Series Power Inverter
This power inverter is modified sine wave inverter which converts
DC power to AC power. Full power inverter with strong protections.
Its output voltage is always within 10% of rated voltage until it
shutdown for overload or other reasons.
1.Efficiency up to 90%, super surge capacity to start difficult
load
2.Strong adaptable and stable load
3.External fuse,easy to replace,restart safely
4.Smart chip, MCU single chip control
5.Five types of buzzing,easy to estimate which protection the
inverter belong to
6.Temperature control fan,Dual USB2.1A
7.Soft start output, can protect the appliance
8.Able to load energy-saving lamp
Applications:
Camera, fan, hair dryer, electric light, electric kettle, electric
shaver, TV set, CD player, mobile phone, notebook, portable device,
in-vehicle and etc.
Specifications:
| Product Model | XA150 | XB150 | XC150 |
| Input Voltage | DC 12V | DC 24V | DC 48V |
| Working Voltage | DC10V-15.5V | DC20-30V | DC40-60V |
| Input Current | 12.5A | 6.3A | 3.2A |
| Conversion Efficiency | >85% | ||
| Continuous Output Power | 150W | ||
| Peak Power | 300W | ||
| Output Voltage | AC 100V-120V/210-240V | ||
| Output Frequency | 50Hz-60Hz | ||
| Output Current | 0.68A | ||
| Output Waveform | Modified Sine Wave | ||
| Temperature Protection | ≥70℃ | ||
| Operating Temperature | 0℃～40℃ | ||
| Cooling Method | Wind Cooling(start up when power on) | ||
| Buzzer Alarm | No | ||
| Fuse | 10A*1+15A*1 | 7.5A*2 | 5A*2 |
| Low Voltage Turn Off | 10±1V | 20±1 | 40±1 |
| High Voltage Turn Off | 15±1V | 30±1 | 60±1 |
| Fault Indicator | Under Voltage/Over Voltage:LED Red Light,Automatic Recovery | ||
| Overload:LED Red Light | |||
| Over temperature:LED Red Light,Automatic Recovery | |||
| Short Circuit:LED Red Light,Automatic Recovery | |||
| Input Reverse:Fuse Blown | |||
| Net Weight | 0.42kg | ||
| Gross Weight | 0.645kg | ||
| Overall Dimension | 15*10.2*5.7cm | ||
| Package Dimension | 20*10.7*6.7cm | ||
| Carton Dimension | 69*41.5*23.6CM 40 piece/carton | ||
|
