Name: Cable Machine Big Size Cable Laying Machine Drum Twister Type Laying Up Machine with Steel Wire Armoring
Brand: Herrman
Price: 1 USD

Home > Cable Manufacturing Equipment >

Cable Machine Big Size Cable Laying Machine Drum Twister Type Laying Up Machine with Steel Wire Armoring

Categories	Cable Stranding Machine
Brand Name:	Herrman
Model Number:	1000, 1250, 1600, 2000, 2500, 3150, 4500mm
Certification:	CQC, CE, ISO, SGS
Place of Origin:	Anhui, China
MOQ:	1 Set
Price:	By Negotiation
Payment Terms:	T/T, L/C, D/A, OA, D/P
Supply Ability:	18 Sets Per Year
Delivery Time:	120 days
Packaging Details:	Plastic Film
Usage:	Laying-up Cable
Final Product:	Power Cable
Max. Rotating Speed:	50r/min
Max. Bobbin Size:	4500mm
Max. Linear Speed:	50m/min
Motor Power:	75KW

Contact Now

Add to Cart

Company Info.

Anhui Herrman Machinery Co.,ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Cable Machine Big Size Cable Laying Machine Drum Twister Type Laying Up Machine with Steel Wire Armoring

Cable Machine Big Size Cable Laying Machine Drum Twister Type Laying Up Machine with Steel Wire Armoring

1. Usage

The machine is used for laying up cable and steel wire armouring for power cable.

2. Type

Pay-off stand

Φ1000, Φ1250, Φ1600, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500

Take-up stand

Φ1600, Φ1800, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500, Φ4000, Φ4200

Steel-wire pay-off stand

Φ500, Φ630

3. Main Technical Specification

Model		JPD-2500	JPD-3150	JPD-3600
Max. laying-up OD		Φ20 –Φ120	Φ25 –Φ130	Φ25 –Φ130
Max. rotating speed of rum twister and pay-off stand		50	30	30
Laying-up pitch		Step-less, adjustable	Step-less, adjustable	Step-less, adjustable
Max. linear speed		50	40	40
Max. haul-off force	Standard	3000	3000	3000
Max. haul-off force	With 96pcs steel wire armoring	5000	6000	6000
Non-metallic taping device	Max. speed	500	500	500
	Taping pitch	Step-less, adjustable	Step-less, adjustable	Step-less, adjustable
	Tape reel	Φ600 xΦ80	Φ600 xΦ80	Φ600 xΦ80
	Tape width	15 - 80	15 – 80	15 - 80
Metallic taping device	Max. speed	300	300	300
	Taping pitch	Step-less, adjustable	Step-less, adjustable	Step-less, adjustable
	Tape reel	Φ800 xΦ200	Φ800 xΦ200	Φ800 xΦ200
	Steel tape width	15 - 60	15 - 60	15 - 60
Central pay-off stand		PN2500	PN3150	PN3600
Pay-off stand		PN1600	PN2000	PN2500
Take-up drum head size		PN2500	PN3150	PN3600
Steel wire armoring specification		PND500	PND630	PND630
Main motor power		45	55	75
Central payoff stand motor power		22	45	55

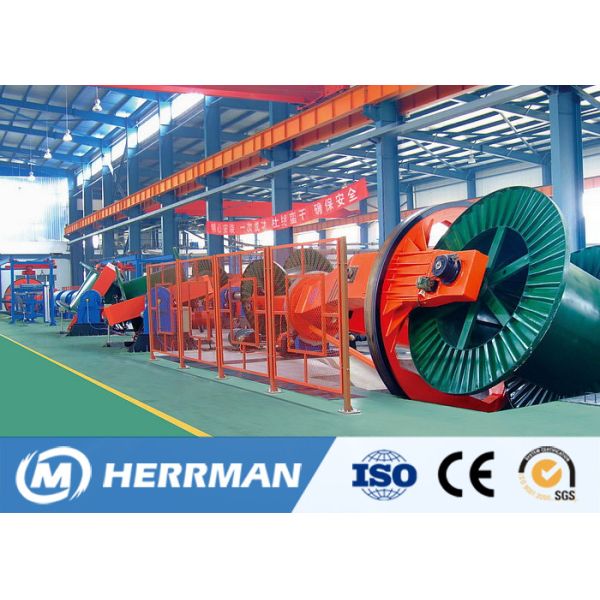

4. Photo
