FSEP Model Self Propelled Full Electric Aerial Order Picker Customized Color

Categories Electric Order Picker
Place of Origin: China
Brand Name: CHEN LIFT
Model Number: FSEP3-2.7
MOQ: 1 set
Price: Negotiable
Packaging Details: Packed with Pallet, Wrapped with Film
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Certification: CE ISO9001:2008 IPAF member
Max. Platform Height: 2.7m
Max. Working Height: 4.12m
Loading Capacity: 300kg
Platform Size: 600*640 mm
Lifting Motor: 24V/1.6kw
Overall Weight: 450kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FSEP Model Self Propelled Full Electric Aerial Order Picker Customized Color

FSEP Model Self Propelled Full Electric Aerial Order Picker


Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.

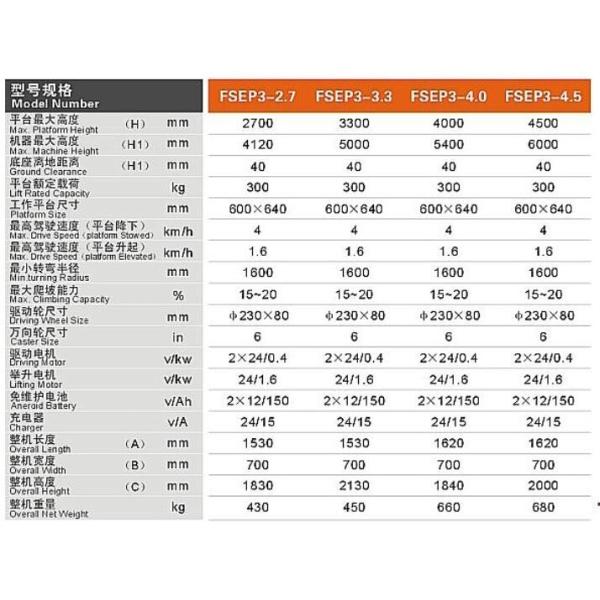

Product nameWhole Electromotion Aerial Order Picker -FSEP3-2.7
Load capacity300KG
Drive motorDC motor
Battery12V/120Ah battery
ColorYellow , Red ,Green ,or Customized
Max .Platform Height2700mm/3300mm/4000mm/4500mm
Overall length &Width&height1530*700*1830mm
Charger24V/15Ah
Platform size600*640mm
Operating typeStand

Structure Principle & Instruction

1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.


The structure of Self-propelled Aerial Order Picker is as below:


Company Introduction

ChenLift is an ISO 9001 accredited company which has been focusing on manufacturing&exporting Aerial Work Platform Battery-powered Forklifts and warehouse equipment for many years in China. With the strong capacity of R&D and manufacture, nowadays ChenLift becomes one of the leading brand of battery-powered warehouse equipment at home&abroad.
