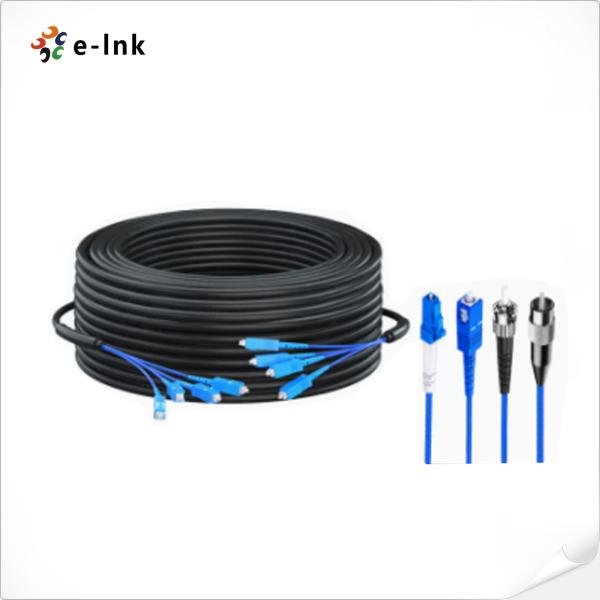

OS2 9/125uM Outdoor Armored Cable 2 Core SM Fiber Patch Cord 50 Meters

Categories SFP Optical Transceiver Module
Brand Name: E-link
Model Number: LNK-2OFC-SC-SC-50
Certification: CE,FCC,RoHs
Place of Origin: China
MOQ: 1 pcs
Price: Negotiation
Payment Terms: Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability: 2000pcs/per month
Delivery Time: 7 Working days
Packaging Details: Fiber Patch Cable Standard Export Package
Keywords: OS2 Fiber Patch Cable
Cable Length: 50 Meters
Connector: SC To SC
Fiber Port: 2 Core
Material: LSZH
Color: Black
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OS2 9/125uM Outdoor Armored Cable 2 Core SM Fiber Patch Cord 50 Meters

Outdoor Armored OS2 9/125μm 2 Core SM Fiber Patch Cable 50 Meters SC To SC Connector
Outdoor Armored Cable Advantages

►Outdoor Armored Cable, 9/125, 2-12 Core, Single mode
►Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
►Novel flute design, easily strip and splice, simplify the installation and maintenance
►Ceramic connectors ensure low signal loss, and high reliability

OS2 2-Core SM Fiber Patch Cable Technical Indexes

Fiber TypeOS2 9/125μm G.652D
Fiber Core2-12
MaterialPVC
Dimension850±50μm
Dimension2.8±0.1 mm
MaterialSUS 204
MaterialPolyester yarn
Dimension5.0±0.2mm
ItemsUnitSpecifications
Crush(Long Term)N/10cm300
Crush(Short Term)N/10cm1000
Min. Bend Radius (Dynamic)mm20D
Min. Bend Radius (Static)mm10D
Operating Temperature-40℃to +85℃
Storage Temperature-40℃to +85℃

Armored Fiber Patch Cable Overview

E-link Armored Fiber Patch Cable is considered ruggedized Fiber Optics. The transmission speeds are equal to common fiber optic cable, but the optical cable is equipped with a shield that is encased by a protective braid, which increases the durability. Armored Fiber Cable is designed to withstand in the harsh environments.



Ruggedized Fiber Optical Cable Ordering Information

ModelDescription
LNK-2OFC-SC-SC-5050 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable
LNK-2OFC-SC-SC-100100 Meters SC to SC Outdoor Armored 2-Core SM Fiber Patch Cable
LNK-4OFC-SC-SC-5050 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable
LNK-4OFC-SC-SC-100100 Meters SC to SC Outdoor Armored 4-Core SM Fiber Patch Cable
LNK-6OFC-SC-SC-5050 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable
LNK-6OFC-SC-SC-100100 Meters SC to SC Outdoor Armored 6-Core SM Fiber Patch Cable
LNK-8OFC-SC-SC-5050 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable
LNK-8OFC-SC-SC-100100 Meters SC to SC Outdoor Armored 8-Core SM Fiber Patch Cable
LNK-12OFC-SC-SC-5050 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable
LNK-12OFC-SC-SC-100100 Meters SC to SC Outdoor Armored 12-Core SM Fiber Patch Cable
