Categories | Block Ice Machine |
---|---|
Applicable Industries: | Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops, Other |
Condition: | New |
Place of Origin: | China |
Brand Name: | FOCUSUN |
Ice Shape: | ICE BLOCK |
Voltage: | 220V - 440V |
Power: | 35KW |
Dimension(L*W*H): | 12192*2438*2896 mm |
Weight: | 8000 KG |
Warranty: | 1.5 years |
Key Selling Points: | High quality & Long Service Life |
Ice storage capacity: | Other |
Machinery Test Report: | Provided |
Video outgoing-inspection: | Provided |
Warranty of core components: | 1.5 years |
Core Components: | PLC, Compressor |
Compressor brand: | Other, Bitzer, GEA |
Application: | Industrial |
Brand: | FOCUSUN |

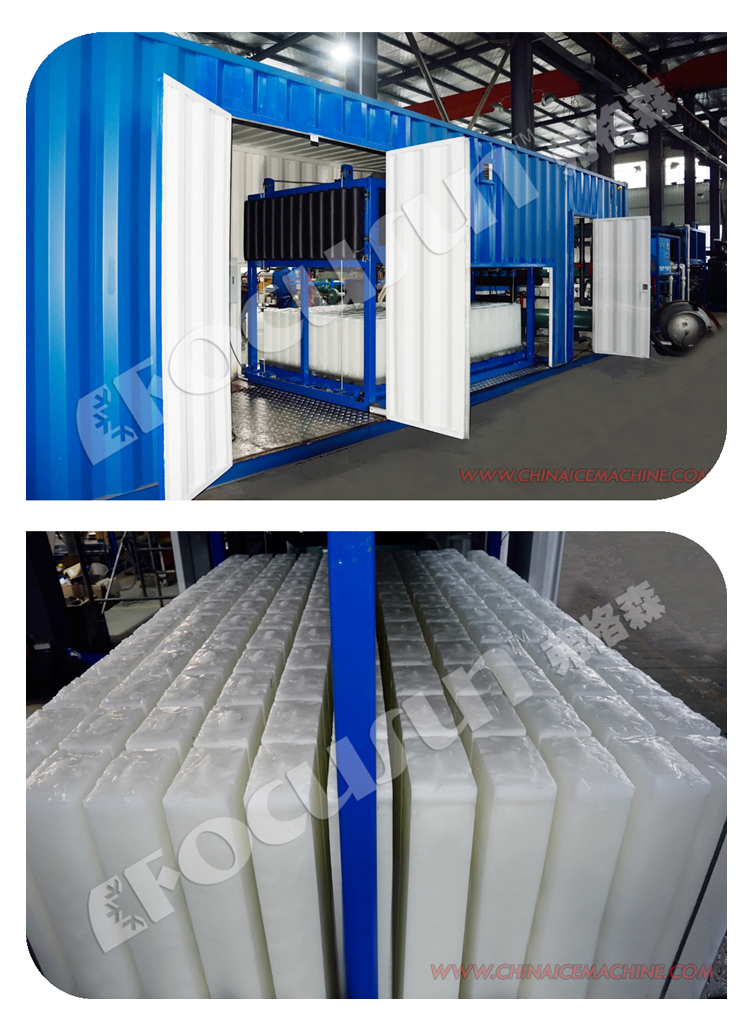

Product name: | Containerized Direct cooling block ice maker machine + Cold room |
Ice making capacity: | 5 tons / day |
Cooling way: | Water cooling condenser |
Refrigerant: | R22 / R404A / R507 etc |
Ice block Size: | Customized |
Control system: | Siemens PLC Control System |
Compressor: | Bitzer |
Expansion valve: | Danfoss Valve |
Power supply: | 3P/220V-440V/50Hz/60Hz(Optional) |
Packaging Details: | 1. Standard container. 2. A complete block ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine comes into use, customer only need prepare power for the machine. 4. All required components |
Port: | Shanghai Port, China |
Supply Ability: | 10 Set/Sets per Quarter |
Price: | $54,500.00/units 1-2 units |
MOQ: | 1pc |
Company Info. |
Focusun Refrigeration Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Highlights of the Focusun Block Ice Maker Machines
Introduction
Conventional Ice Block Plant needs a large brine pool which needs long time to freeze frist. then you put ice can filled with water into the freezing pool, it takes too much time;It uses chilled brine water as a secondary refrigerant, circulates in a brine water tank and conduct with the water inside ice cans.
Block ice fail to reach the food standards due to the pollution of chemical elements in the industrial brine water during the ice melting and doffing process. The ice is suit for fish industry, but is not applicable for human consumption.
Compare:
Our FOCUSUN direct cooling block ice machine give the Best Solution:
The Ice modue consist of aluminium,The freon evaporate inside, freezing the ice directly
so,
1. It's direct freezeing type
2. Need fewer time, freezing 15 kg ice block just needs 5.5 hours ;
3. Aluminium plate never corrode, food grade and sanitary ;
4. Don't need large room, hoist, noise, dirty pool, never !
5. Compact system, Easy to transport ,easy to operate, easy to get enough more blocks !
This innovative direct cooling or we can called direct refrigeration or direct freezing block ice machine using aluminum freezing plates. The material is completely conforms to food standards.
All parts of Focusun direct system block ice machine which contact with water are made of SUS304 or aluminum alloy material. The produced ice is clean and hygiene, complying with HACCP certification requirement. Ice could be eaten directly.
Our engineer go all over the world to help you to install & commission our block ice plant after you bought from us. Like in India, Canada, middle east, South Africa, the Philippines, Brazil, England, and Australia.
1 All-in-one refrigeration systems.
2 Specially-designed evaporator, aluminum freezing plate, conforms to food standards.
3 Clean and sanitary block ice, suitable for human consumption.
4. Also can be used for cooling, fish cooling ,etc.
5 The refrigerant can be used globally, in line with national and international standards.
6 PLC controls and self-protects from breakdowns during water filling, ice making and harvesting.
7 Production capacity: 1ton to 30tons (if you choose non-containerized, no limitation about the largest capacity) with block ice weight of 5kg, 10kg, 15kg, 20kg, 25kg and 50kg)
Focusun headquarter is located in Shanghai city, production and R&D team is located in Taizhou city, Jiangsu province, with more than 35,000 square meters of standardized modern plant. Our main products include all kinds of ice maker, such as block ice machine, tube ice machine, flake ice machine, cube ice machine, plate ice machine.
There must be one product suits your business! Professional sales teams combined with excellent working experience production. Bring products from factory directly to you, cost of different marketing channels saving.
Dear future paterner,
Thank you for browsing our website. We look forward to win-win cooperation. Whether you are a reseller or end user, we will suppot your business. We are online, just send your enquiry to us.
![]() |
