Rising Stem Din F4 F5 Water Valve BS5163 Cast Ductile Iron Gate Valve With PN10 PN16 PN25

Categories industrial valves
Brand Name: DEYE
Model Number: DY-GV-Z-7
Certification: ISO9001:2015 PED
Place of Origin: CHINA
MOQ: 10PCS
Price: USD2-USD20000 each
Payment Terms: T/T, L/C, D/P
Supply Ability: 1000pcs one month
Delivery Time: 20 days for usual order, 7 days for stocked items
Packaging Details: carton box+ ply wooden cases or carton+ Pallets
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Rising Stem Din F4 F5 Water Valve BS5163 Cast Ductile Iron Gate Valve With PN10 PN16 PN25

Rising Stem Din F4 F5 Bs5163 Cast Ductile Iron Gate Valve With PN10 PN16 PN25


Iron Gate Valve Model No. GV-Z-7


ductile iron DIN PN16 Flat resilient Gate valve for drinking Water. Temperature: -30℃-+125℃


Quick Detail


Design standard: DIN3352 EN1171, BS5163, AWWAC515

End connection: RF. Flange

Face to face: DIN33352 F4 short type,F5 Long Type, BS5163, AWWAC515

Working temperature: -30℃~+125℃.

Test and inspection: API 598.

Gland Gate valve

Product Range Size: 2"-48" DN50-DN1200

Connection: Flange ends conform to EN1092-1

Inside and outside FEB coating Min. 250 Microns.


Specifications:


Rising Stem Din F4 F5 BS5163 Cast Ductile Iron Gate Valve
MaterialIron
Design standardDIN3352 EN1171, BS5163, AWWAC515
End connectionRF. Flange
Size RangeDN50-DN1200 (2”-48”)
Pressure RangePN10, PN16, 150LBS
Face to faceDIN33352 F4 short type,F5 Long Type, BS5163, AWWAC515
Working temperature-30℃~+125℃
Test and inspectionAPI 598
Product Range Size2"-48" DN50-DN1200
ConnectionFlange ends conform to EN1092-1
Inside and outside FEB coating Min250 Microns
Available Body MaterialCast Iron GG25, Ductile iron GGG40, GGG50
Available Disc MaterialDuctile iron, Bronze
Optional Seat RingEPDM, NBR, Brass, Bronze, SS304, SS316
Optional DesignDIN /BS/ ANSI with difference Face to face length
Optional EndsBS4504/EN1092-1 PN16/ ANSI B16.5 RF
Optional surface colorRAL5002, RAL5015. RAL5005, red, black. Or customized
Optional OperationHandwheel /Chain wheel/ electric Actuator/pneumatic actuator

Products Range:


Available Body Material: Cast Iron GG25, Ductile iron GGG40, GGG50

Available Disc Material: Ductile iron, Bronze

Optional Seat Ring: EPDM, NBR, Brass, Bronze, SS304, SS316

Optional Design: DIN /BS/ ANSI with difference Face to face length

Optional Ends: BS4504/EN1092-1 PN16/ ANSI B16.5 RF

Size Range: DN50-DN1200 (2”-48”)

Pressure Range: PN10, PN16, 150LBS.

Optional surface color: RAL5002, RAL5015. RAL5005, red, black. Or customized

Optional Operation: Handwheel /Chain wheel/ electric Actuator/pneumatic actuator


Performance

• PN10/16/PN25/150PSI/225PSI Resilient Seated Gate Valve is operating by the EPDM covered iron wedge

moving perpendicular to the flow axis through a worm machined stem multi turned

• 100% tight sealing is achieved through EPDM covered wedge fully contacting

The fusion bonded epoxy coated flow surface

• In each time the valve is opened, the flow on the line cleans the sealing surface,

Prevents from dirt and deposits

• With its short installation length ( DIN 3202 F4), does not occupy a big place

• It has ductile iron body and stainless steel stem

• Inner and outer surfaces are coated with minimum 250 microns fusion bonded epoxy

• Suitable to install actuator and gearbox

• Suitable to use with ground and underground applications. Can be operated with extension spindle

• Very low head loss rating. Can be operated with lower torque ratings, no maintenance needed

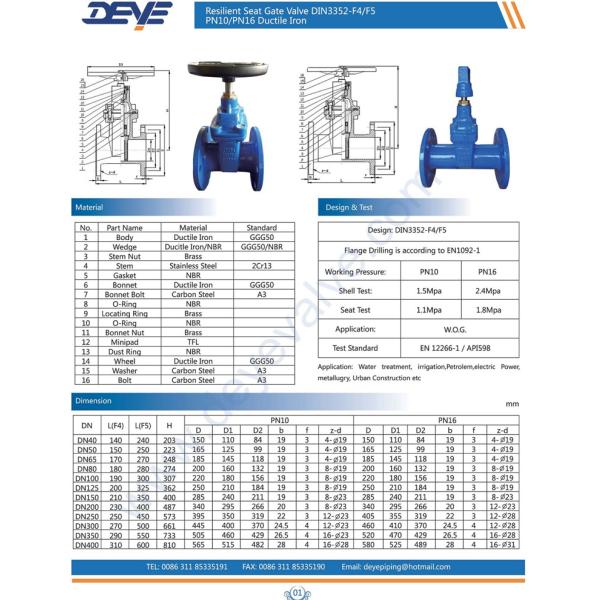

Technical Data Sheets:



APPLICATIONS


Hot Water, Cold Water, Fluids without acidity or alkalinity properties
