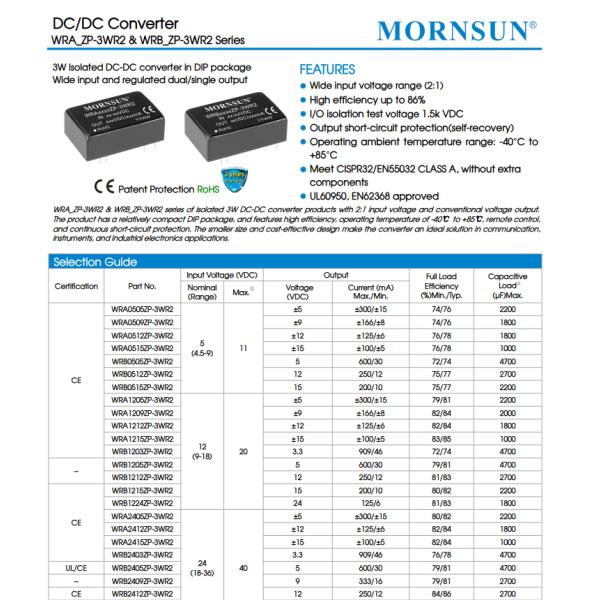

WRB0505ZP-3WR2 Isolated Module DC Converter 1 Output 5V 600mA 4.5V - 9V Input
ISOLATED MODULE DC DC CONVERTER
Specifications of WRB0505ZP-3WR2
| TYPE | DESCRIPTION |
| Category | DC DC Converters |
| Mfr | Mornsun America, LLC |
| Series | WRB_ZP-3WR2 (3W) |
| Package | Tube |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 74% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 7 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1; 62368-1 |
Features of WRB0505ZP-3WR2
* Wide input voltage range (2:1)
* High efficiency up to 86%
* I/O isolation test voltage 1.5k VDC
* Output short-circuit protection(self-recovery)
* Operating ambient temperaturerange: -40°Cto+ 85°C
* Meet CISPR32/EN55032 CLASS A, without extracomponents
* UL60950, EN62368 approved
Applications of WRB0505ZP-3WR2
All the DC/DC converters of this series are tested before delivery
using the recommended circuit shown in Fig. 2
Environmental & Export Classifications of WRB0505ZP-3WR2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
|
