TFT Batching Weighing Controller With Panel Mounted Box And USB Port Connected

LCD Display TFT Batching Weighing Controller With Panel Mounted Box and USB port Connected

Main Features:

EMC design with high anti-jam for industrial environment.
DC24V power input with reverse polarity protection.
Cortex-A8 CPU with 600MHz Clock, 128M Flash.
7” [800×480] or 10.2” [1024×600] TFT touch panel.
24-bit ∑-△ADC with internal resolution 1/1,000,000.
High sampling frequency 800Hz.
Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
Auto Zero Tracking.
Fall Value Auto Correction.
Auto Pause for Deviation Alarm.
Auto Re-feed for Negative Deviation Alarm.
Target Batch Count & Target Batch Weight Control.
3-speed[high/medium/low] feeding control by DOs or AOs.
Definable DI/DO/AO/COM[Communication Port].
Recipe Number: 100.

Technical Specification:

Power Supply	DC24V±20%,Max.10w.
Display	HMI
Sampling Frequency	800Hz
A/D Convert	24-bit
LAN	Optional Ethernet
USB1	Connect mouse, software download, data backup
Max. Connection number of Loadcell	8 Loadcells (350Ω)
DI	7 Normally Open Switch Inputs
DO	18 Normally Open Transistor Switch Outputs
AO4	Analog Signal Output: 4~20mA.

Button Operation

Name	Operation	State Indicator	Authorization
【Auto】	Auto / Manual [Emergency Stop] switch.	Green: Auto state. Grey: Manual state.	All Users
【Start】	Start.	Green: Running state. Grey: Stop state.
【Re-run】	Clear Alarm & Recover Running.
【Stop】	【E-stop】: Emergency Stop.
【Stop】	【Last】Last Batch [Normal Stop]. Stop after the present batch finished.	Flashing Red.
【E-stop】	Emergency Stop.
【Alarm】	Alarm Query / Clear Alarm. ‘Auto/Pause’ state: Recover Running after clearing alarm.	Red: Alarm state.
【Bag】	Bag-clamp/release Request.	Green: Bag-clamping state. Grey: Bag-releasing state.
【Print】	Report Print: [ Auto Print]: Print Batch Records. [Total]: Print Totalizing Report. [Recipe]: Print Working Recipe.
【Lock】	Screen-locking: Locking/unlocking the operating buttons of main display interface. Auto Screen-locking: Refer to parameter [901].	Flashing Red: Locked. Grey: Unlocked.
【Menu】	Enter Main Menu.
【User】	User Login. Display: Operator / Engineer / Admin.
【Inhibit】	Inhibit/Allow Switch.	Red: The lane is OFF. Grey: The lane is ON.
【Zero】	Zero Fine Adjustment [No Power-down Protection].	Flashing green.
【High】	Manual Start/Stop High-speed Feeding.	Green: Working state.
【Med】	Manual Start/Stop Medium-speed Feeding.
【Low】	Manual Start/Stop Low-speed Feeding.
【Dump】	Manual Start/Stop Dumping.
【Clear】	Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Packing Speed.		Engineer Administrator

Data Display & Quick Setting

Name	Description	Authorization
Biggest Digits	Real-time Weight [Weight Unit].
[HI]	Weight Upper Limit Alarm.
[OL]	Overload Alarm.
Bigger Digits	Final Feeding Weight.
[▲]/[HI]	Positive Deviation Alarm.
[▼]/[LO]	Negative Deviation Alarm.
[Date&Time]	Date&Time.

[RUN]	Auto Running state.
[PAUSE]	Pause state.
[P_SW]	DI switch ‘Dumping Gate Closed in Place’ turned on.
[ZERO]	Weight ≤ Non-load Zero Range.
[STAB]	Weight is stable.
[Feeder]	Feeder is working.
[FED]	Feeding Ended.
[FIN]	Target Batch [Count/Weight] Finished.
[LABEL]/[GAS]/ [SEW]/[CUT]	In the process of ‘Labeling on Bag’ / ‘Filling Gas into Bag’ / Bag-sewing / Thread-cutting.
[SPLY]	In the process of ‘Supplying Material into Feeding Hopper’.
[Au-supply DI]	‘Material Auto-supply Permit’ DI truns ON/OFF.

[RECIPE]	‘Working Recipe’ Setting.	All Users
[TARGET]	‘Target Value’ Setting.	All Users
[SP1]	SP1 Lead Value for High-speed Feeding.
[SP2]	SP2 Lead Value for Medium-speed Feeding.
[FALL]	SP3 Fall Value for Low-speed Feeding.
[FALL]	‘AUTO FALL’: Fall Value Auto Correction function is open. ‘FREE FALL’: Fall Value Auto Correction function is closed.
[BAT. CNT]	Target Batch Count.
[CYCLES]	Batch Count.
[BAT. WT]	Target Batch Weight.
[TOTAL]	Totalized Weight.
[CPM]	Packing Speed [Cycles/min].
[Packing Mode]	Combination / Multi-hopper. Combination / Single-hopper. Respective / Single-hopper. Refer to Parameter [303] ‘Packing Mode’.

4-Scale Weighing Controller For Respective / Combination Packing With 4-weighing-hopper&1/4-bag and Multi-hopper packing / Single-hopper packing

Outline Size:

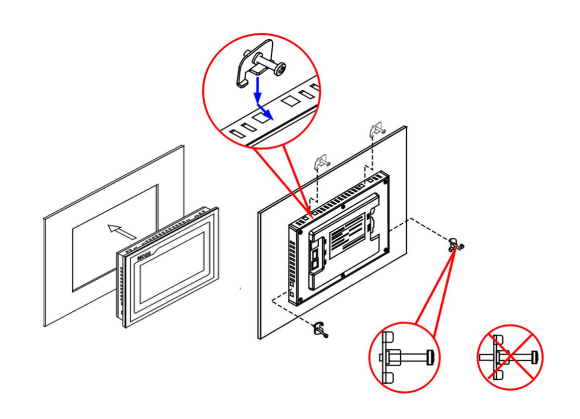

Installation Mode

Terminal Diagram

Software Function

Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
Load Calibration and Loss Calibration functions available.
10 Recipes for packing control.
Optional ‘Fall Value Auto Correction’ function.
Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-feed’ functions.
Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
The Batch Records can be printed automatically.
Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.
