MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

MTP MPO flange Adapter, aligned or opposed alignment keys, Telecom/Data Center Trunk Cabling And Casettes

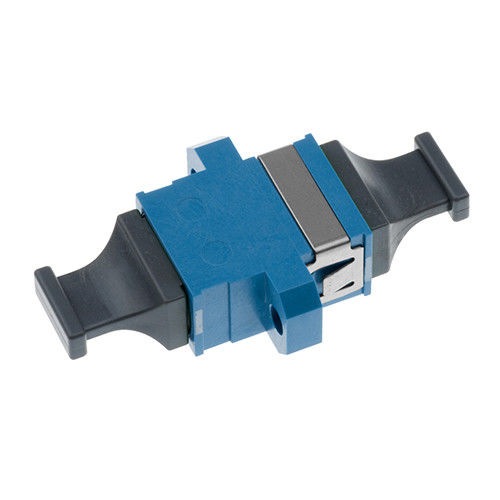

MPO Adapter is a small device used to connect fiber-optic cables with MPO connector,MTP is a high performance MPO connector engineered for better mechanical and optical performance.
MTP adapter has two types as key-up to key-down and key-up to key-up. It provides the connection between cable to cable or cable to equipment in the MTP style. It works for any MTP Connector from 4 fiber to 72 fiber, widely used in trunk cabling and casettes. This adapter meets appropriate standards and is perfect for your parallel optics and MTP adapter needs.

Our MPO/MTP adapter provides alignment for a male and female MPO/MTP connector. The housing is available with MTP or SC footprint, aligned or opposed alignment keys, different colors and with options for flange or flangeless body.The adapter body material is polyetherimide with a stainless steel spring clip.

Features

Low insertion loss
High return loss
Ease of installation
Reliability
Low environmental sensitivity

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
