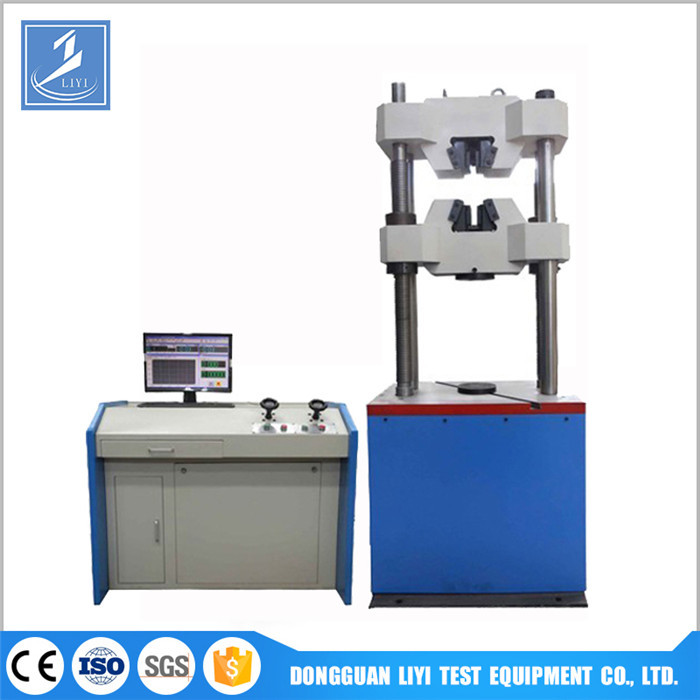

Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display
LYWEW-300B 300ton CE standard hydraulic tensile press machine host adopt the cylinder under the host. It is mainly used for metal, nonmetal tensile, compression, bending test, etc. Suitable for metallurgy, construction, light industry, aviation, space, material, universities and colleges, scientific research units, and other fields.
2.1 the host
Host adopt the cylinder under host, stretching space is located at
the top of the host, compression, bending test space between the
host beam under the above and the workbench
2.2 the transmission system
Under beam lifting motor reducer, chain drive mechanism, screw pair
drive, realize the tensile, compression space adjustment
| Max. Load capacity | 300KN |
| Test force measurement range | 6-300 kN |
| Accuracy of Test force display | ±1% |
| The piston stroke | 200mm |
| The piston movement speed | 50 mm/min |
| Displacement measurement resolution | 0.01 mm |
| Displacement measurement accuracy | ±1% |
| The max tensile test space | 550 mm(Including the piston stroke) |
| The max compression space | 500 mm |
| The flat sample clamp thickness | 40mm (pull clamps, customized) |
Clamping width | 40mm |
| Round clamping diameter | φ6-φ26 mm |
| The compression plate size | 170*170mm |
| The clamping way | Hydraulic clamping |
| The bending roller spacing | 30-350mm |
| The piston stroke | 250mm |
| Power supply | Three phase 380V±10%V,50Hz |
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem
controller freely, even it's not from our factory. What you need to
do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
|
