| Categories | Fiber Optic Tools |
|---|---|
| Brand Name: | Eloik |
| Model Number: | ALK-88A |
| MOQ: | 1piece |
| Price: | 920$/PIECE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000piece per month |
| Delivery Time: | 5-7days |
| Packaging Details: | carton box |
| Warranty Time: | 1year |
| Actual average loss: | 0.02dB(SM) 0.01dB(MM) 0.04dB(DS) 0.04dB(NZDS) |
| Splicing Time: | 7s |
| Heating Time: | 35 SecondS |
| Applicable fiber diameter: | Cladding diameter of 125μm coating diameter 250-900μm |
| Maximum storage: | 5000 set of the latest record storage |
| Display: | 4.3 inches LCD color screen |
| Connectiong time: | 9 secondS |
| Dimensions: | 150mmx130mmx126mm |
| Weight: | 1.89Kg |
| Single package size: | 42X24X32 cm |
| whatsapp: | +8615797626358 |

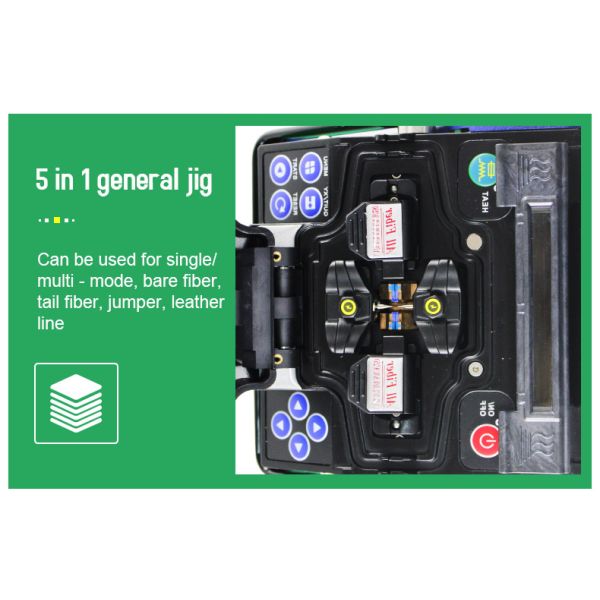

splicing Eloik ALK-88A Fiber Optic Fusion Splicer fiber splicer machine
| Applicable Optical Fiber Types | SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift) |
| Applicable Optical Fiber Core Number | Single core |
| Applicable Optical Fiber Diameter | Cladding diameter: 80-150μm, Coating diameter: 100～1000μm |
| Fusion splice Model | Prestore:40 groups, User define: 80 groups |
| Average using Splice Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS),0.04db(BIF/UBIF) |
| Echo Loss | Better than 60dB |
| Fusion splice Duration Time | 9sec(typical parameter) /7 the sec (fast mode) |
| Loss Estimation of Fusion Splice | Exist |
| Tension Test | 2N |
| Monitor | 4.3 inches colorized LCD, Support in both Chinese and English, Spanish, Russian, French, Portuguese and other display |
| Power Supply | 6800mAh Lithium battery, 13.5V/5A power adapter |
| Optical Fiber Magnification Times | X/Y:180times,X or Y:360 times |
| Battery | Typically work 220 times(Fusion splicing / Heating /Hot stripping), Single battery charge 2Hour,can be recycled 500 times |
| Splice Results Storage | 10000 groups of the latest records |
| Data Interface | USB2.0 |
| Operating Environment | Elevation:0~5000m, Relative humidity:0~95%,Temperature:-20°C~55°C,Maximum wind speed:15m/s |
| Storage Environment | Relative humidity:0~95%, Temperature:-40°C~80°C (Except Battery), Temperature:-10°C~40°C (Battery) |
| Weight of the Equipment | 1.93kg(Include battery) |
| High altitude operation | Cornering, machines can be directly hung on the operators neck normal operation |
| Applicable Optical Fiber Cable Diameter | 250μm, 900μm, 2~3mm |
| Applicable Sleeve Length | 60mm, 45mm, 40mm(FP-03) |
| Heating time | 20mm,40mm Fusion-Protection Sleeves only need 7-10s 60mm Fusion-Protection Sleeves 17s (customizable) |
| Heating temperature | 180~250°C(customizable) |
