| Categories | Dental X Ray Machine |
|---|---|
| Brand Name: | XIEJIAN |
| Model Number: | BLX-8 plus |
| Certification: | CE/ISO |
| Place of Origin: | CHINA |
| MOQ: | 1set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,alipay,paypal |
| Supply Ability: | 1000set/month |
| Packaging Details: | carton case |
| Tube Voltage: | 65kv |
| Tube Current: | 1mA |
| Time Exposure: | 0.1~~1.8s |
| High pressure generator: | 30kHz DC |
| Rated Power: | 60w |
| Color: | White |
| warranty: | 2 year |
Imaging Handheld Digital X Ray Machine Wireless Medical X-Ray Equipments
Product introduction:
This model combines the advantages of similar products found at home and abroad; it eliminates the shortcomings of the on-frequency X-ray machine (high current intensity and excess amounts of scrap x-rays).Using a Toshiba 0.3 micro-focus tube.The tube voltage frequency of this machine is 30 KHz,and the tube current is 1 MA. The radiation scope is at an angle of 24 degrees, located within a distance of 1.2 meters ahead. This is an innovative Chinese design named the ""Green X-ray Machine.""
Warning: After turning on the machine, wait for 1 minute, the voltage can be stabilized before normal use;After each photo, you have to wait 30 seconds before you can take a normal photo.
TECHNICAL SPECIFICATIONS:
| Tube Voltage | 65kv |
| Tube Current | 1mA |
| Time Exposure | 0.1~~1.8s |
| High pressure generator | 30kHz DC |
| Rated Power | 60w |
| Focal Spot To Skin Distance | >20CM |
| Focus Spot Size | 0.3mm(TOSHIBA) |
| Charger Input Voltage | AC110V~220V |
| Supply Frequency | 30Hz |
| Radiation Leakage | <20ugy/h |
| Battery | 24V DC 2600MA |
| Weight | 4.3KG |
| Dimensions | 37 cm×31 cm×28cm (L×W×H) |

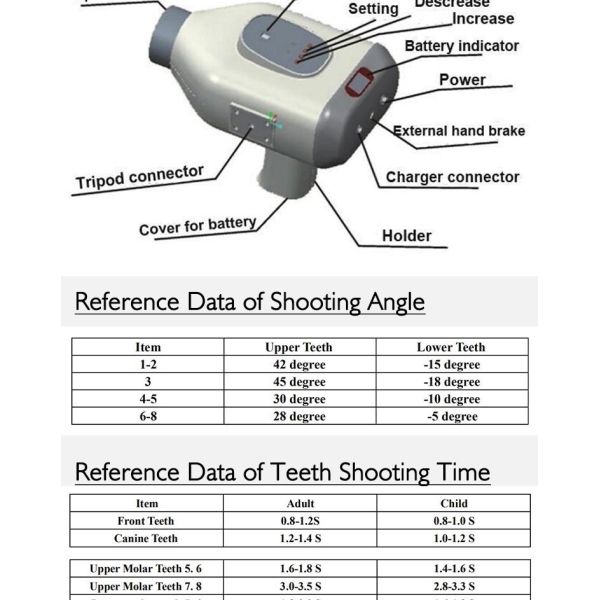

Reference of the Angles :
| Tooth | Upper | Lower |
| January 2 | 42 | -15 |
| 3 | 45 | -18 |
| April 5 | 30 | -10 |
| June 8 | 28 | -5 |
Reference of the time of exposure:
| Tooth | Adult | Child |
| Central & Lateral | 0.2-0.3s | 0.2-0.3s |
| Cuspid & 1st Bicuspid | 0.3-0.4s | 0.3-0.4s |
| Upper 5,6 | 0.5-0.6s | 0.5-0.6s |
| Upper 7,8 | 1.3-1.8 s | 1.2-1.5.s |
| Lower 5,6 | 0.5-0.6s | 0.4-0.5 s |
| Lower 7,8 | 0.6-0.8 s | 0.5-0.7 s |
Packing List:
Main machine 1pcs
Power line 1pcs
User manual 1pcs
At present, we are dealing on seven categories like dental equipment, dental orthodontic series, dental supplies, dental material, dental decoration and dental accessories etc, amounts to more than six hundreds kind of products, such as NSK/KAVO dental handpiece, woodpecker brand of curing light and apex locator series ect. autoclave, water distiller, ultrasonic Scaler, orthodontic arch wire and bracket, dental study model, dental chair etc.
