| Categories | OEM Pressure Sensor |
|---|---|
| Brand Name: | Atech pressure sensor |
| Model Number: | PS19 pressure sensor I2C output |
| Certification: | CE RoHs Exprosion proof |
| Place of Origin: | China |
| MOQ: | 1pc |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs month |
| Delivery Time: | 7 work days |
| Packaging Details: | standard export packing according to customer's requirements Low Cost I2C/SPI Digital Pressure Sensor for water air oil test |
| Range: | -100Kpa...0Kpa- -10Kpa....7Mpa |
| output signal: | IIC pressure sensor |
| supply voltage: | 3.3V 5V |
| sensor cell: | sillicon pressure sensor |
| Application: | swimming pool robot |
| Response time: | <1ms |
| Company Info. |
| Atech sensor Co.,Ltd |
| View Contact Details |
| Product List |
3.3V output 10MPa I2C output digital pressure sensor for swimming pool sweeping robot

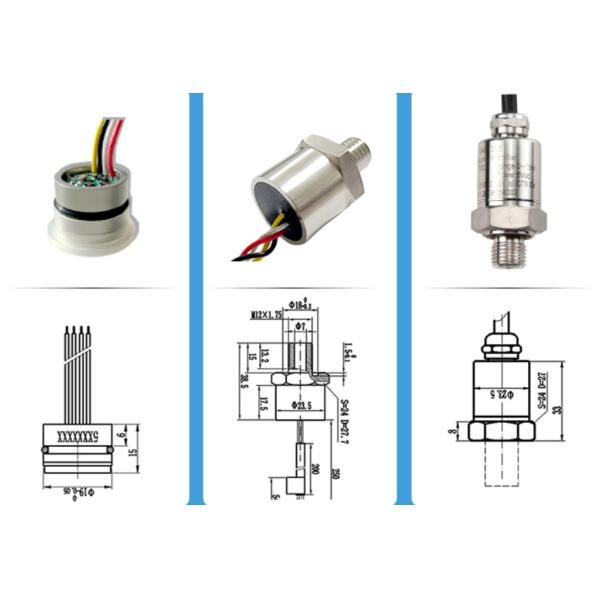

PS19 pressure sensorhigh-quality silicon piezoresistive sensor chip. The piezoresistive sensor chip is packaged in a fluid-filled cylindrical cavity and isolated from measured media by a stainless steel diaphragm and housing. The output of PS19A can be configured to 10%~90%Vs ratiometric,4~20mA, I2C by integrated the electronics.Integrated the electronicsis used for temperature compensation, offset correction.
Amplified output (ASIC inside)
Features
- 100mbar to 100bar (1.45psi to 1450psi )
- Absolute, gauge and sealed gauge
- ±0.5% static accuracy
- Calibrated and temperature compensated
- Rugged 316L stainless steel isolated package
- Piezoresistive sensor design
- 0.5~4.5Vdc(ratiometric),I2C interface
- ASIC Calibrated
- Solid state, high reliability
- Custom configurations and other pressure ranges available. Please consult the factory.
Speifications
| Parameter | Value | Units | |
| General | Pressure Range | 0-0.1,...,100 | bar |
| Overpressure | 1.5xFS | bar | |
| Environmental | Operating Temp.Range | -20 to +80 | °C |
| Compensated Temp.Range | 0 to 70 | °C | |
| Vibration | 10 | g(20 to 2000Hz) | |
| Shock | 100 | g(10ms) | |
| Cycles | 10x106 | cycles | |
| Electrical @25°C(77°F) | Analog signal Analog signal Digital signal
| 0.5~4.5 4~20 I2C
| VDC@5VDC mA@24VDC @3.3VDC
|
| Insulation Resistance | 100 | MΩ@50VDC | |
| Physical Specifications | Media Compatibility | All media compatible with 316L SS | |
| Housing | 316L stainless steel | ||
| Diaphragm | 316L stainless steel | ||
| Seal Ring | Viton or NBR | ||
| Oil Filling | Silicone oil | ||
| Net Weight | Approx.14g | ||
| Performance1 | Accuracy2 | ±0.25[typ.] | % FSO |
| Temp. Coeff– Zero3 | ±0.75[typ.] | % FSO | |
| Temp. Coeff– Span3 | ±0.75[typ.] | % FSO | |
| Long-Term Stability | ±0.3[typ.] | % FSO | |
| Measuring | range |
| A | 0-100Pa~1kPa(0-10~100 mmH2O)/(0-1~100mbar) |
| B | 0-200Pa~6kPa (0-20~6000 mmH2O)/(0-2~60mbar) |
| C | 0-400Pa~40kPa (0-40~4000 mmH2O)/(0-4~400mbar) |
| D | 0-2.5kPa~250kPa(0-0.25~25 mH2O)/(0-25~2500mbar) |
| F | 0-20kPa~3MPa(0-3~300 mH2O)/ (0-0.3~30bar) |
| G | 0-100kPa~10MPa |
| H | 0-0.21MPa~21MPa |
| I | 0-0.4MPa~40MPa |
| J | 0-0.6MPa~60MPa |
PS19pressure sensor is widely used in:
Process control system Air compressor Refrigeration system
CNGSNG gas station Natural gas HVAC
Oil pumpdrilling Food industry Chemical industry
Hydraulic control system pump&water system Others
|
