| Categories | Fiber Media Converter |
|---|---|
| Brand Name: | Sopto |
| Model Number: | SPM-EM24T2X-PX |
| Certification: | CE RoHS FCC |
| Place of Origin: | Shenzhen China |
| Payment Terms: | L/C, T/T,Paypal, D/P |
| Supply Ability: | 50000 pcs per month |
| Delivery Time: | 5-8 days |
| Packaging Details: | 1Pair in standard carton, mass order with carton box package can do OEM according to customer's request. |
| Data Rate: | 10/100/1000M |
| External Power Supply: | 220V AC |
| Service Type: | OEM |
| Fiber type: | SM / MM,SM(Single mode),Multimode |
| Feature: | Manageable |
| Humidity: | 5% to 90% |
| Remarks: | SFP Port without Transceiver |
| Ports: | 2 Fiber Ports 4 UTP Ports |
| Ambient Temperature: | 0 ~ 70℃ |
Full Duplex Multimode 100Base-TX Fiber Media Converter
This series 2 fiber to X UTP managed switch uses SFP fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 120km max on SMF. Standard in-stock fiber interface is LC.
Key Features
l 2 x SMF/MMF, simplex/duplex fiber port
l 4 ~ 8 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports
l Support Auto MDI/MDIX
l Flow control: IEEE 802.3x standard (Full-duplex) , back pressure (half-duplex)
l Compliance with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standard
l Using store and forward switching mechanism
l Built-in 2.75MB memory
l All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
l Support SNMP,WEB, ring network patent technology
l Support VLAN,QOS,RSTP/STP

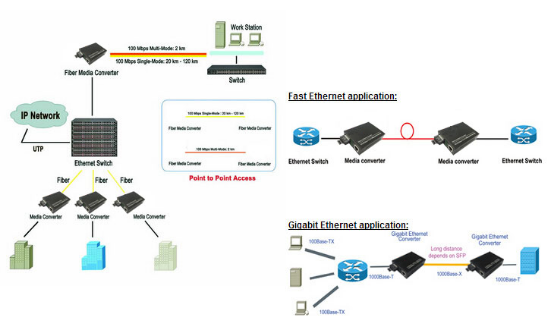

Applications
l Access Control Systems
l Building and Environmental Control Systems
l Tamper Switch
l 10/100/1000 Mbps Ethernet
l High Speed Computer Links
l Where 2 FX needs to be extended to several copper ports
| Part Number | Product Description |
| SPM-EM22T2X-PX | Media Converter Manageable 2 Fiber Ports 2 UTP Ports 10/100/1000M SFP Port without Transceiver Commercial Temperature External Power Supply 220V AC Support G.8032(ERSP)/1+1 redundant SFP |
| SPM-EM24T2X-PX | Media Converter with management 2 Fiber Ports 4 UTP Ports 10/100/1000M SFP Port without Transceiver Commercial Temperature External Power Supply 220V AC |
| SPM-EM28T2X-PX | Media Converter with management 2 Fiber Ports 8 UTP Ports 10/100/1000M SFP Port without Transceiver Commercial Temperature External Power Supply 220V AC |
if you need more information,please contact us.
|
