Product description

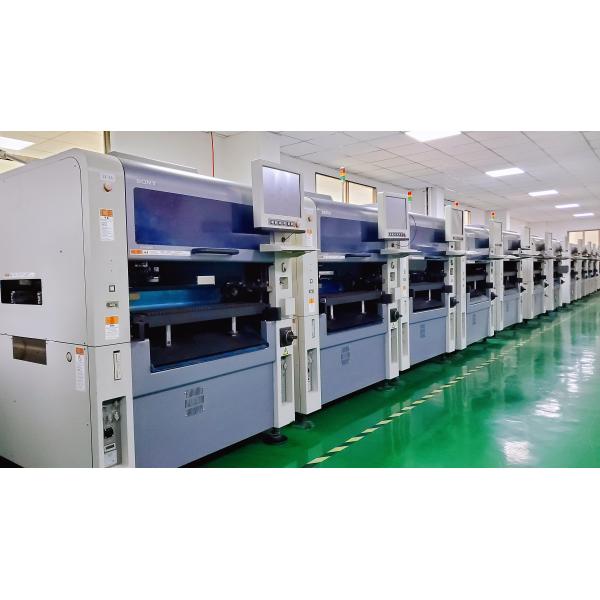

Chip Mounting Machine is for led, Lens, capacitors, resistors, IC, Shaped components, etc. Apply to Led lamp manufacturer, PCB production line etc . Chip Mounting Machine is a single module single system multi-functional SMT pick and place machine. Vision for the flight identification, mark correction. And it’s identified the correct position by camera. So it’s high precision and good stability.
Model | SM421 | SM431 |
speed | Chip 1608 21,000CPH ；SOP 15,000 CPH ；QFP 5,500 CPH | 55000CPH(best performance) |
component size | 0402mm Chip to □14mm | 0402mm Chip to □12mm |
mounting accurancy | ±50μm@μ+3σ/Chip；±30μm@μ+3σ/QFP | ±40μm |
PCB size | min:50(L)x40(W) max:(single)460(L)x400(W) ；510(L)x460(W)(option)； 610(L)x510(W)(option)；740(L)x460(W)(option) | L50 x W40 mm ~ L460 x W460 mm |
vision system | Flight vision+Fixed vision (Only one working field device can be installed when installing a
large conveyor) | Hight speed flight image recognition system |
mounting head | 6 spindles x 1 cantilever | double arms with 16 mounting heads |
component thickness | H=12mm(Standard Flying camera) H=15mm(Standard Fixed camera)6
spindles x 1 cantilever | H7mm以below |
PCB thickness | 0.38~4.2mm | 0.38-4.2 |
feeders | 120ea/112ea (feeding Quantity) | Avalibale with 48 of 8mm Feeding Machine |
voltage | AC 220/208/220/240/380/415V(50/60Hz,three phase) | AC200/208/220/240/380/415V(50-60HZ,3Phase) |
power | 5-7kg/㎡,260 NI/MIN | MAX 5.0KVA |
air pressure | 0.5~0.7MPa(5.1~7.1kgf/cm2),300NL/min | 0.5-0.7Mpa(5.1~7.1kgf/cm²) |
machine size | 1650(L) x 1,680(D) x 1,485(H) | 1,240mm(L) x 1,660mm(D) x 1,420mm(H) |
machine weight | 1680kg left right | around 1500KG |
work environment | 5～25 degree | Operating temperature :+10~+35℃,recommend:24±4℃,humidity:RH30%~80% |
work noise | 35-65 decibel | 35-65 decibel |
correction model | Machine vision system, multi-point mark vision correction. | Machine vision system, multi-point mark vision correction. |
driver system | AC servo, AC motor | AC servo, AC motor |
data transmit | USB interface input (EXCEL document format), | USB interface input (EXCEL document format), |
operation system | Chinese, English, Korean operation interface (WINDOWS system
control platform) | Chinese, English, Korean operation interface (WINDOWS system
control platform) |
control model | automatic | automatic |
