IP65 Waterproof Gprs Tracking Device For Trucks

Categories Vehicle GPS Trackers
Brand Name: Kingwo
Model Number: MT100-A
Place of Origin: China(Mainland)
MOQ: 2pieces
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs/month
Delivery Time: 10-20days
Packaging Details: carton case
GPS chip: Quectel MC25
Use: Real Time Tracking
Gsm frequency: 2G
Gps accuracy: 5-10m
Voltage: 9-100V
Function: ACC detection
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP65 Waterproof Gprs Tracking Device For Trucks

Motorcycles Car Vehicle Truck 2G GPS Tracker with Cut Off Engine ACC detection

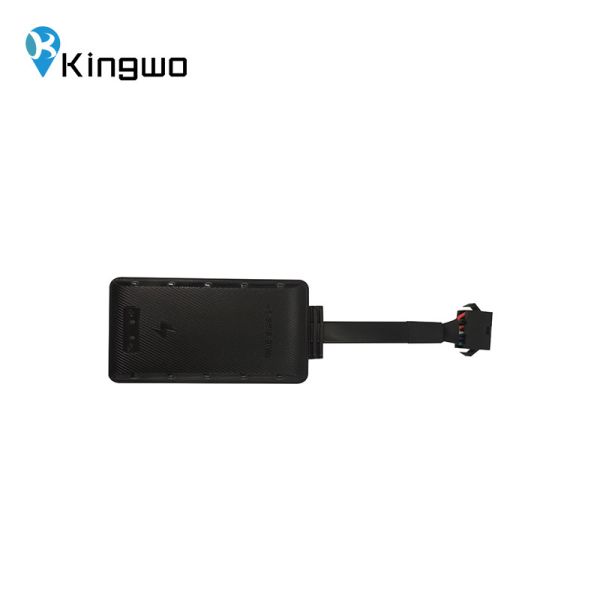

MT100 is a 2G compact GPS Tracker for vehicles, it is small in size and with internal antenna. It is designed for motorcycles, cars, vehicles and scooters, the device itself supports 9-100 volts, and it has one digital output for power off relay connecting and one digital input for ignition detect.As for the configuration can be used via platform,SMS and bluetooth.

Product Description:

● Support GPS, AGPS and LBS, super-fast and accurate positioning

● Built in high sensitive G-sensor accelerometer

● Built in light sensor for removal alarm

● Driving behavior monitor (Speeding, hard declaration, hard acceleration, cornering alarm)

● 9-90 Wide voltage

● Support dual IP and dual protocols

● Support OTA (Remote firmware upgrade feature)

● Bluetooth features for parameter setting and sensors connecting


Parameters:

Telecom Chipset : Quectel MC25

Network : GSM&GPRS

Frequency Band : GSM 850/900/1800/1900MHz

Location Way : LBS/AGPS/GPS/Glonass

Location accuracy : <10 meters

Tracking sensitivity : -162 dBm

Humidity : 5%--95% non-condensing

Internal Battery : 3.7V 60mAh Li-Polymer battery

Standby Time : 2 hours


PhysicalDimension75*40*13mm
Weight45±3g
CellularFrequency

Working Frequency: 850/900/1800/1900MHz

Network protocol: Embedded TCP/IP stack

Sensitivity: -107dBm@850/900MHz

-106dBm@1800/1900MHz

Output power: Class 4 (2W)@850/900MHz

Class 1 (1W)@1800/1900MHz

GPRS data: GPRS Class 10, Mobile Station Class B

GPS

Channels: 50

Sensitivity: -147dBm

Position accuracy:5-10m

Accuracy: 5m CEP

Cold start: <27s

Hot start: <1s

BluetoothBluetooth 5.0
PowerInput voltage9-100V
BatteryNI-MH AAA 3.6V/60mA,1.5hours working time based on 2-3 minutes upload
Power consumption

Average Current: <30mA (DC 12V)

Maximum current: <10mA (DC 12V)

Environmental ParameterWorking Temperature-20℃ ~ +70℃
Humidity5% ~ 95% (no fog)
Ingress Protection RatingIP65

FAQ:

Q: Has your product passed CE / ROHS certification?
A: Yes, the gps device has passed CE / RoHS / CCC / FCC.

Q: What is your minimum order quantity?
A: We accept a formal order of at least 1 sample and at least 100 units.

Q: Do you accept OEM / ODM?
A: We can use your logo and package for you, and free of charge, you can also modify the hardware and software according to your
requirements.

Q: Can you send samples free of charge?
A: You are required to pay for the sample and transportation.

Q: What is the final price?
A: The final price depends on the quantity of your order. Because shipping fee is depended on total weight of your order.

Q: What are your payment methods?
A: Alibaba Payment, Banktransfer,Western Union,Paypal etc.
