15m/Min Z C Profile Roll Forming Machine

CZ Shapes Interchangeable Purlin Roll Forming Machines with CW Flange punching

Product description

CZ changeable purlin roll former can produce both c and z purlin with different specifications in one machine. The change from C and Z will be done by manual adjustment, which is can be easily done. There is also not necessary to change the rollers if producing different size of C or Z purlins. It can automatically cut to length, punch and forming, workers just need to set the length, hole distance, quantity, etc into the control system. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.

Working flow

Decoiling---Leveling---Punching---Cutting---Rollforming---Hydraulic Cutting---Finished Purlins on Runout Tables

Technical Data of CZ Purlin Roll Forming Machine

1. Hydraulic Punching & Cutting

punching Type: Hydraulic Punching

Punching material: Cr12

Punching die: Cr12

Cutting type: Hydraulic cutting (100-200 use a specification shearing tool and 200-300 use a specification shearing tool. we have the patent technology.)

Cutting material: Cr12 Cr12MoV Cr12(total three blades.

Hydraulic motor power: 5.5KW

Hydraulic Pressure: 16Mpa

2. PLC Control System

Control the quantity &punching length& cutting length automatically

The Machine will be stopped while it is punching and cutting

Automatic Length measures and quantity counting (precision +- 3mm)

Voltage: customized

Main Components of CZ Purlin Roll Forming Machine

Application

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, garden, exhibition center, garage, warehouse, cinema, theatre, garden and so on.

Main features of CZ Purlin Roll Forming Machine

1. the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel

structure and process as a whole after welding. It has the ability of strong loading and stable operation when

running the machine.

2．All the components of the machine are from brand-famous enterprises so that they ensure the machine normal function very effectively.

3. we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. it is very easy to install the equipment and suitable for producing in the factory.

5. the machine has features of low noise and high efficiency.

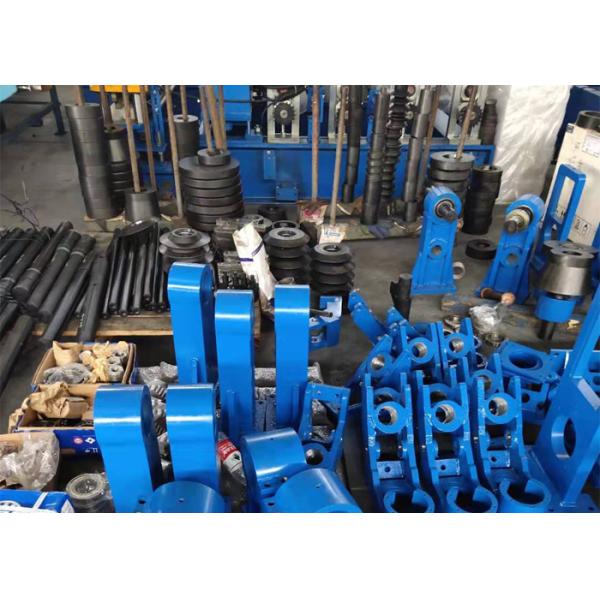

Mechanical spare parts

Wuxi Hengruiyang Technology Co., Ltd is a manufacturer of roll forming machine. At present, our products have been exported all over the world, and maintained good cooperative relations with customers.
