| Categories | Relay |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | Kampa |
| Model Number: | JQX-30F |
| Theory: | Electromagnetic Relay |
| Usage: | Power Relay |
| Size: | Miniature |
| Protect Feature: | Sealed |
| Contact Load: | High Power |
| Product name: | High quality power relay for sale cheap |
| Type: | power relay |
| Sample time: | 5 days |
| Contact type: | 1Z,1H,1D,2Z,2H,2D |
| Contact overload: | 30A |
| Rated coil power: | DC:2.0W AC:3.5VA |
| Coil spcification: | DC6V~220V AC6V~380V |

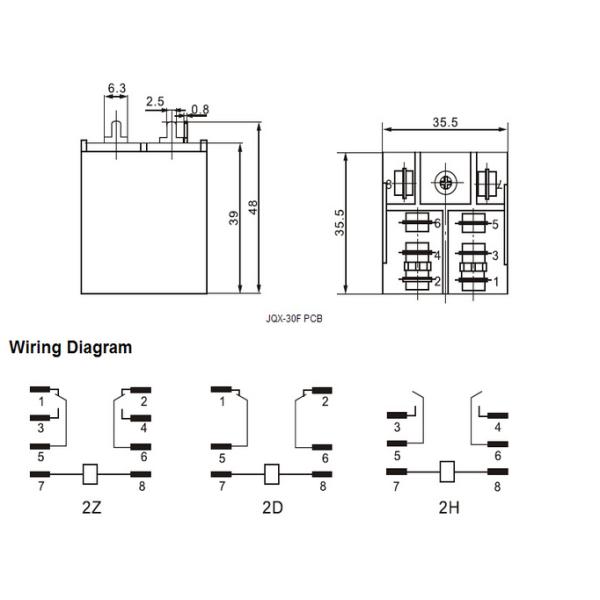

| Outline dimensions: | 43*35.5*48mm |
| MOQ: | 100PCS |
| Port: | Ningbo/Shanghai |
| Supply Ability: | 100000 Piece/Pieces per Month |
| MOQ: | 100 Pieces |
| Price: | $5.00/Pieces 100-499 Pieces |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |

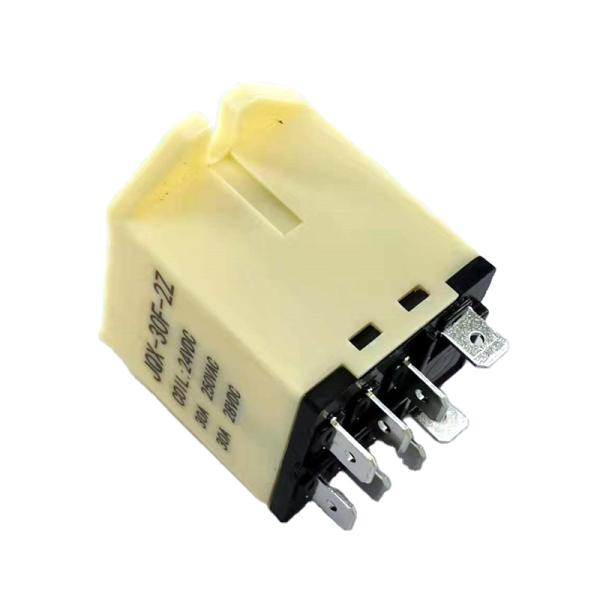

JQX-30F 2Z AC 220V 30A Coil Electrical general purpose relay
| Power Relay: JQX-30F | |||||||
| Coil voltage:DC5-60V,AC12-220V | |||||||
| Contact Specification | |||||||
| Contact form | 2Z,2H,2D | ||||||
| Contact resistance | ≤100MΩ(1A 6VDC) | ||||||
| Contact material | AgCdO AgSnO2 | ||||||
| Contact capacity | 30A 250VAC/30VDC | ||||||
| Technical Specification | |||||||
| Insulation resistance | ≥1000MΩ.500VDC | ||||||
| Dielectric strength | BCC ≥ 2500VAC 1min | ||||||
| BOC ≥1200VAC 1min | |||||||
| Operate / Release Time | ≤20ms/15ms | ||||||
| Terminal type | Quick terminal mounting | ||||||
| Coil Specification | |||||||
| Rated coil power: DC1.5W AC2.5VA | |||||||
| Coil Data | |||||||
| Nominal voltage VDC | Operate voltage VDC | Release voltage VDC | Coil resistance Ω±10% | Nominal voltage VAC | Operate voltage VAC | Release voltage VAC | Coil resistance Ω±10% |
| 6 | 4.80 | 0.60 | 24 | 12 | 9.60 | 3.60 | 20 |
| 12 | 9.60 | 1.20 | 96 | 24 | 19.20 | 7.20 | 80 |
| 24 | 19.2 | 2.40 | 384 | 48 | 38.40 | 14.4 | 320 |
| 48 | 38.4 | 4.80 | 1540 | 110 | 88.00 | 36 | 1700 |
| 60/110 | 48.0/88 | 6.00/11.0 | 2400/8060 | 220/240 | 176/176 | 72/72 | 6770/806 |
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such
as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,
Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.
We are manufacturer and have ten years experience in Electrical industry.
A.Punctual delivery time:
We carry out your order into our well-organized production
schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is
shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary
Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
|
