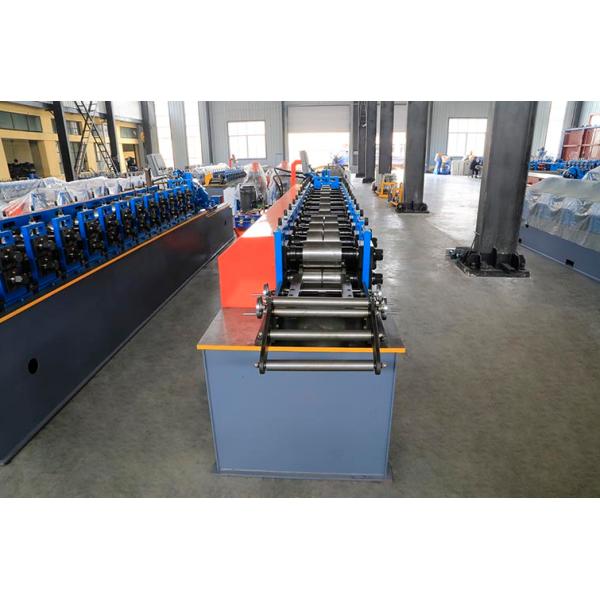

20m/Min Steel Stud Making Machine 500mm Width with quenched shaft

Siemens PLC Controlled High-Speed Steel Stud And Track Roll Forming Machine

1. Description of stud and track roll forming machine

This Stud And Track Roll Forming Machine are driven by a chain in the hydraulic system. Comparing with another system, a chain drive system can save power. Customers do not need to pay the extra power fee during production.

The shafts adopt 55mm diameter No. 45 steel. They are tooled by a grinding machine 2 times. They are strong and durable. Can ensure product accuracy.

The production speed can reach 20m/min. 9600m per shift one day (8 hours). It is automatic and easy to operate.

The rollers adopt high-grade No. 45 forged steel. Plated with 0.05mm hard chrome. Processed by digital-controlled procession.

The stud and track roll forming machine equips Siemens PLC system. The touchscreen can realize the friendly man-machine interaction. And the system is simple to learn and very easy to operate. Once you set the quantity and length data of the product, the machine will produce the products automatically.

2. Major technical parameters of the stud and track roll forming machine

3. Main components of the stud and track roll forming machine

4. Quality assurance:

The company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, we all operating a whole strict process control system. The running of the quality system performs quality manual, procedure files, work instruction, and related technical and management standards together with standard and regulation layout by company. The quality system realizes the whole screw and whole procedure control completely.

Quality assurance procedure for important out-source parts.

a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump, etc.
b. After evaluation, select qualified suppliers as business partners.
c. Purchasing according to plan, purchase contract, quality requirement, technical standard, and inspection standard.

Receiving inspection on-site either in supplier or our company with related technicians.

Jiangsu LeBron Machinery Technology Co., Ltd. (Brand Name: Lebron-Machinery) is a professional designer and manufacturer of Cold Roll Forming Machines. Founded in 2007, with over 10 years experience of in design and manufacture, now LBM is a leading and widely recognized manufacturer and exporter of the Cold Roll Forming Machines in Wuxi City, Jiangsu Province, China.

Founded in 2007, after over 10 years’ development, now, LBM company has factory and branch company employees over 130 people, total areas over 12000 square meters, plants areas over 10000 square meters. Registered capital 10 million RMB. Annual output value over 70 million RMB. The factory has 11-set advanced CNC production lines on-site, has 15 professional technicians, among them, there are 5 engineers with more than 20 years of experience.

LBM company is specialized in the production of various kinds of Cold Roll Forming Machines. The machine ranges covering Roofing Sheet Roll Forming Machine, Wall Panel Roll Forming Machine, Corrugated Roofing Sheet Roll Forming Machine, C/Z Purlin Roll Forming Machine, Floor Deck Roll Forming Machine, Sandwich Panel Roll Forming Machine, Metal Gutter Roll Forming Machine, Metal Downspout Roll Forming Machine, Door Frame Roll Forming Machine, Shutter Door Roll Forming Machine, Window Frame Roll Forming Machine, Storage Rack Roll Forming Machine, Structure Profiles Roll Forming Machine, Cable Tray Roll Forming Machine, Solar Strut Channel Roll Forming Machine, Highway guardrail roll forming machine, Car panel roll forming machine, etc.

LBM Company’s roll forming machines are widely used in the production of industrial products. With over 260 customer relationships, LBM sells to leading companies in a wide variety of industries. We service a multitude of industries with custom Cold Roll Forming Machines including Automotive parts, Vessel accessories, Decking & Panel, Garage Doors (including door skins and track), Window & Door Frame, Roofing, Siding, Purlins, Gutter, Soffit, Corner-bead, Fencing, Shelving and Racking, Construction materials, etc.

LBM constantly provides good quality machines to our clients with timely deliveries at the most competitive prices. Meantime, LBM has the people and experience to help you succeed with dedicated after-sales support, customer service, and technical expertise.
