Categories | Galvanized Barbed Wire |
---|---|
Brand Name: | HBGB |
Model Number: | GB-0012 |
Certification: | ISO 9001 |
Place of Origin: | China |
MOQ: | 50 rolls |
Price: | negotiable |
Payment Terms: | L/C, T/T |
Supply Ability: | 3000 rolls per day |
Delivery Time: | 10-20days |

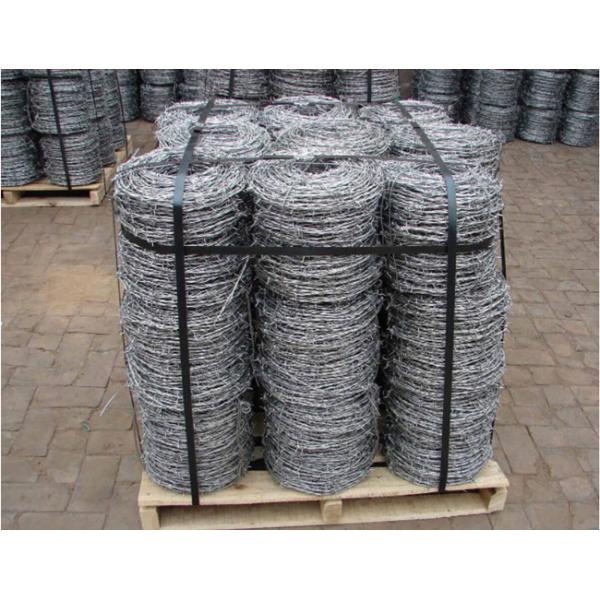

Packaging Details: | bulk or on pallet |
Product name: | Galvanized Barbed Wire |
Material: | low carbon steel wire Q 195 |
Surface treatment: | plastic coated or galvanized |
Color: | Green or bright white |
Barb length: | 1.5-3cm |
Wire diameter: | 1.6 mm - 3.2 mm |
Barb distance: | 7.5-15 cm |
Type: | Barbed Wire Coil |
Coil weight: | 25 kg |
Features: | farm fence construction |
low carbon steel wire
electronic galvanized,hot-dipped galvanized,PVC coated
Barbed wire is a kind of modern security fencing materials,Barbed
wire can be installed as deterrent to the perimeter intruders with
piecing and cutting razor blades mounted at the top of the wall .
Galvanized barbed wire offers a great protection against corrosion
and oxidation caused by the atmosphere. Its high resistance allows
greater spacing between the fencing posts.
Galvanized Barbed Wire Application:
Barbed wire suitable for industry, agriculture,animal husbandry, dwelling house, plantation or fencing, It is always used to construct inexpensive fences and is used atop walls surrounding secured property. It is also a major feature of the fortifications in trench warfare (as a wire obstacle).
Galvanized barbed wire specifications:
Specification of barbed wire | ||||
Gauge of Strand and | Approximate Length per kilogram in Meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12x12 | 6.0167 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
![]() |
