| Categories | High Temperature Pressure Transmitter |
|---|---|
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |

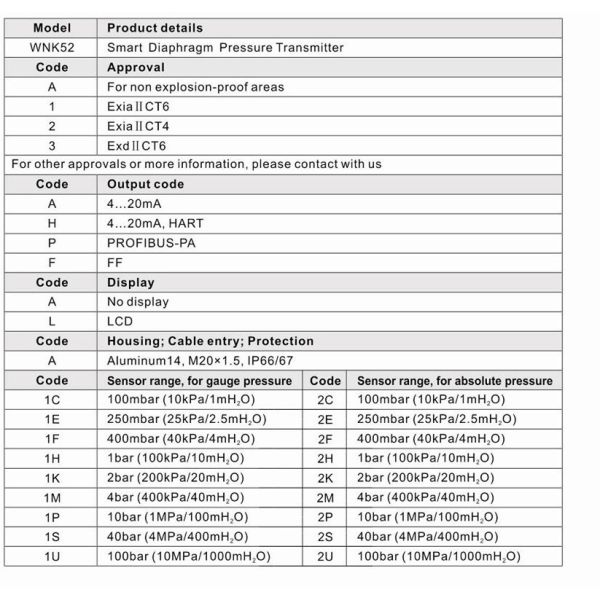

| Model Number: | WNK52 |
| Packaging Details: | each product in one inner paper box with foam protection |
| Supply Ability: | 2000 Set/Sets per Week pressure transmitter HART |
| Price: | $100.00 - $500.00/Sets |
| Warranty: | 1 YEAR |
| Customized support: | OEM, ODM |
| Output signal: | 4~20mA, Hart, PROFIBUS-PA |
| Accuracy: | 0.2%F.S |
| Range: | 10kPa to 10MPa |
| Power supply: | 10.5-55V DC, 10.5-30V DC |
| Protection: | IP66/67 |
| Stability: | ±0.25% of URL for 1 year |
| Diaphragm material: | 316L SS,Alloy C-276,Monel,Tantalum diaphragm |
| Fluid filled: | Silicon oil,Vegetable oil,Inert oil,High temperature oil |
| MOQ: | 1set |
| Keywords: | pressure transmitter/Hart Smart Diaphragm Pressure Transmitte |
| Port: | Shanghai |
| Company Info. |
| Hefei WNK Smart Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
WNK5 series pressure transmitter is the high performance pressure
transmitters provided by Anhui WNK Electronic Engineering Co., Ltd.
It transforms the physical signal of pressure, differential
pressure and level etc into standard signal, by collecting cell
sensor and digital processing circuit.
Our WNK5 series has the best precision and signal uniformity by
applying advanced specified integrated circuit digital technology.
Each set of transmitter is ambient temperature compensated in our
factory, to ensure max precision and mini drift in wide working
temperature range.
Product features
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
|
