Littlefuse Smd PCB Mount Dip 600V PPTC Resettable Smd Fuse 0.15A

600R150 Cross PCB Mount Dip PPTC Resettable Fuse 600V 0.15A For Set Top Boxes

Description Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

The TRG series was designed to protect against power fault events typically found in telecom applications. Used in applications need the requirements of GR–1089-CORE and UL60950/EN60950/ IEC60950. These resettable devices also help to meet the requirements of ITU K.20, K.21 and K.44.

Application Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

Secondary overcurrent protection for:

◆ ADSL,PBX,MDF,VOIp,IAN,WAN,T1/E1

◆ Central Office Equipment (CO)

◆ Customer Premises Equipment (CE)

◆ Alarm systems

◆ Set Top Boxes (STB)

◆ Voice over IP (VOIP)

◆ Subscriber Line Interface Circuit (SLIC)

Features Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

◆ 0.11 – 0.25A hold current range, 600VDC operating voltage

◆ 600VAC interrupt rating

◆ Fast time–to-trip

◆ Binned and sorted narrow resistance ranges available

◆ RoHS compliant, Lead– Free and Halogen-Free*

◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Meet RoHs,Reach,standard
◆ Voltage:600Vac
◆ Agency recognition: UL On Approval

Electrical Characteristics Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

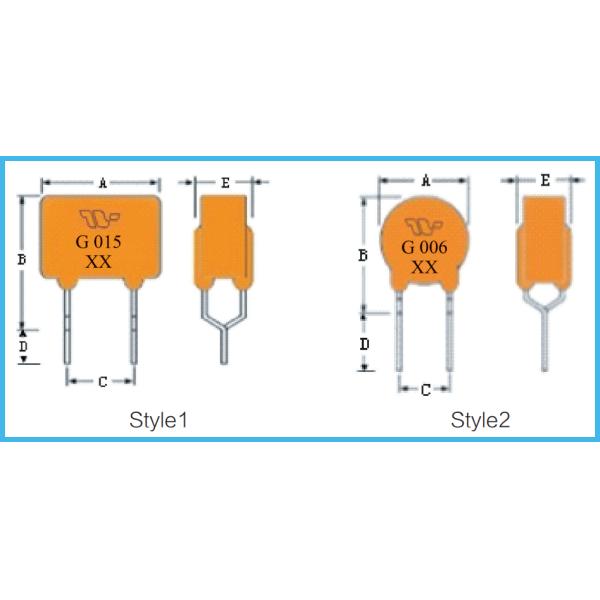

Product Dimensions Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A(Unit: mm)

Thermal Derating Chart – I hold (Amps) Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

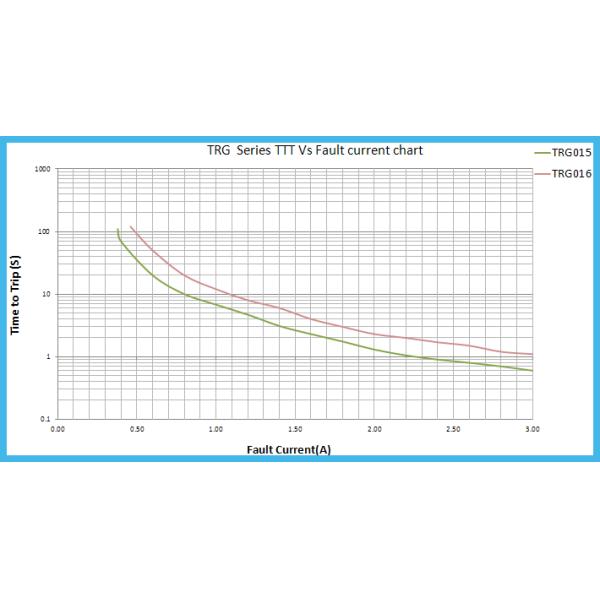

Typical time to trip at 25℃ Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

The Time to Trip curves represent typical performance of a device in a simulated application environment.

Actual performance in specific customer applications may differ from these values due to the influence of other variables.

Standard Packaging Quantity Of The PCB Mount Dip PPTC Resettable Fuse 600V 0.15A

Model Q’t y/bag
TRG006-TRG016 1000pcs
TRG020-TRG025 500pcs
Tape and Reel Specifications

Devices taped using EIA468–B/IEC286-2 standards
