| Categories | Small Scale Agricultural Machinery |
|---|---|
| Brand Name: | Easwon |
| Model Number: | 2BXF |
| Certification: | CE, ISO |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
| Delivery Time: | 15-20 days |
| Packaging Details: | steel frame or wooden case |
| Matched power: | 15-100hz |
| Rows: | 9 -24 rows |
| Basic line distance: | 160mm |
| Sowing depth: | 40-80mm |
| Working width: | 1350-3600mm |
| Volume of seed Box: | 120-300L |
| Volume of fertilizer Box: | 120-300L |
| Condition: | New |
| Warranty: | 1 year |
| After-sales service: | Free spare parts, Video technical support, Online support |
| Company Info. |
| Linyi Ruixiang Import & Export Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

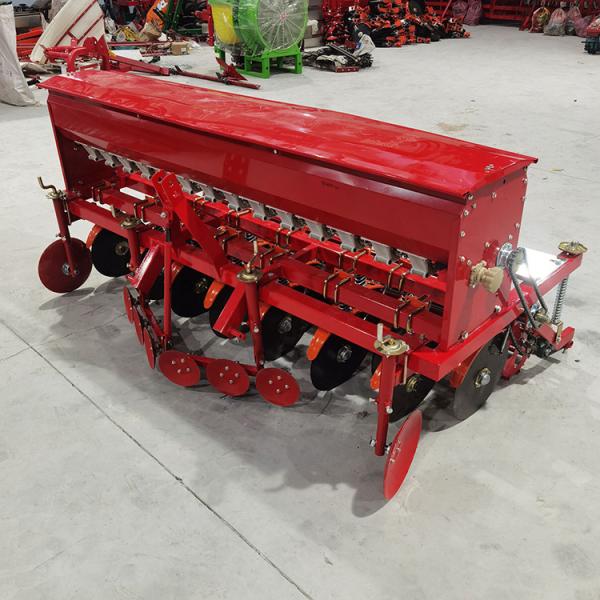

The 2BFX series wheat seeder/planter is adopted corrugated rubber tube, two smooth, double bearing steel tool, which works reliably. It adopts connecting rod and tractor hook, which is convenient for transportation. Wheat seeder is used for powder metallurgy parts, such as outer groove row seed, fertilizer, seed circle and plug etc, which has the advantages of heat and cold resistance.
The 2BFX series seeder/planter is suitable for seeding wheat, barley, millet, sorghum and other crops, it can be drilling, canning, sowing, fertilizing etc. The application rate, depth and spacking can be adjusted according to the needs of agricultural technology.
Technical specification
| Model | Unit | 2BXF-9 | 2BXF-12 | 2BXF-14 | 2BXF-16 | 2BXF-18 | 2BXF-24 |
| Matched power | HP | 15-30 | 15-30 | 18-30 | 50 | 60-80 | 70-100 |
| No. of rows | 9 | 12 | 14 | 16 | 18 | 24 | |
| Basic line distance | mm | 160 | 160 | 160 | 160 | 160 | 160 |
| Sowing depth | mm | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 |
| Weight | kg | 220 | 280 | 310 | 380 | 680 | 1080 |
| Working width | mm | 1350 | 1800 | 2100 | 2400 | 2700 | 3600 |
| Volume of seed box | L | 120 | 150 | 180 | 200 | 240 | 300 |
| Volume of fertilizer box | L | 120 | 150 | 180 | 200 | 240 | 300 |
| Working speed | km/h | 4-6 | 4-6 | 4-6 | 4-6 | 4-8 | 4-8 |
| Type of drill boot | Double disc | ||||||
| Linkage | Three point mounted | ||||||
 |  |
 |  |
Package&Shipping:
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
|
