| Product name: | Port Lifting Equipment 20ft Container Spreader With Electro-Hydraulic Pusher |
| Rated Lifting Load: | 30-35t |
| Type: | Semi-automatic spreader |
| Load container type: | 20ft |
| Dead weight: | 2t |
| Eccentricity: | 0.26m(length) |
| Design temperature: | -20 ~ + 50 ° |
Port Lifting Equipment 20ft Container Spreader With Electro-Hydraulic Pusher
OUCO Product Description
The semi-automatic spreader is designed for the handling of 20 ft
ISO containers with single or double hook jib cranes, in ports or
on vessels. The twistlocks are activated by landing and lifting the
spreader from the container by the crane operator.With Electro-Hydraulic Pusher
The fixed frame is mounted to a crane by bridle sling and provides
a simple way to load and unload containers. Great for ports who
need to handle containers on and of a ship, but have lower lift
counts.
Standard and Heavy Duty Models are available.
Technical Parameters Of Container Spreader
| For Operation With ISO Standard 20' Container | For Operation With ISO Standard 40' Container | ||
| Rated Lifting Load | 35t | Rated Lifting Load | 40t |
| Self-Weight | 2t | Self-Weight | 3.5t |
| Allowable Load Eccentricity | 10% | Allowable Load Eccentricity | 10% |
| Spring Stroke | 100mm | Spring Stroke | 100mm |
| Ambient Temperature | -20℃~ +45℃ | Ambient Temperature | -20℃~ +45℃ |
| Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring | Twistlock Mode | ISO Floating Twistlock, Driven by a Automatic Spring |
| Flippers Device | No Power, Fixed Flippers | Flippers Device | No Power, Fixed Flippers |
| Application | Portal Crane, Gantry Crane, Crane in the Plant | Application | Portal Crane, Gantry Crane, Crane in the Plant |

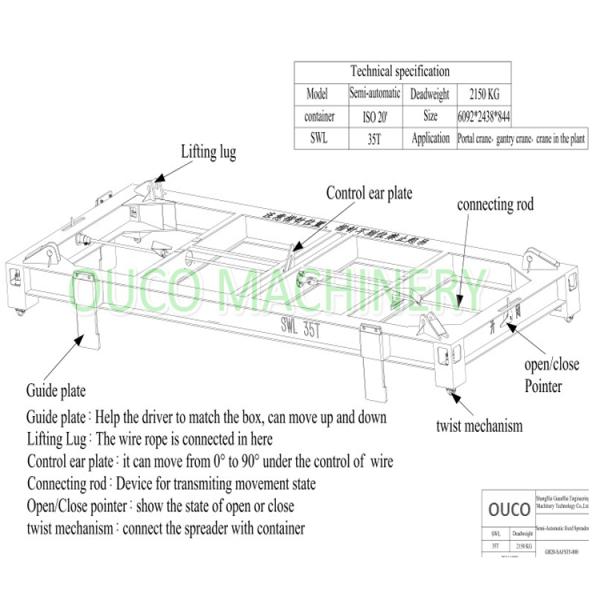

Genernal Arrangement
Product Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
OUCO is a global leading manufacturer of marine handling equipment. Our
products including:
A: Marine Crane -- Knuckle Boom Crane, Foldable Boom Crane,
Telescopic Boom Crane, Stiff Boom Crane.
B: Grab Bucket -- Remote Control Grab, Motor Hydraulic Grab
C: Port Hopper – Simple Hopper, Dedust Hopper, Mobile Hopper.
D: Material Handler Crane
E: Other Equipment- Container Spreader
OUCO provides high quality handling solutions and access systems for the Crane, port industries and various non-standard structural parts. The company has its own developing, designing, and manufacturing capacity for products of metallurgical complete sets of equipment, marine cranes, truck cranes, boiler desulfurization and denitrification environmental protection products in air pollution control field. Company products are widely used in the metallurgical, ship, port, electricity, petroleum, building materials and chemical industries.
