| Categories | Angular Contact Ball Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | 5206 ZZ |
| Place of Origin: | China |
| MOQ: | negotiable |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/MONTH |
| Delivery Time: | 20-45DAYS |
| Packaging Details: | carton,pallet |
| Bore Size: | 1 - 30 mm |
| Number of Row: | Single Row |
| Seals Type: | Open bearing, 2RS bearing, zz |
| Application: | Automotive.tractor.construction Machinery.rolling Mill |
| Material: | Chrome Steel GCR15 |
| Cage: | Iron Cage |

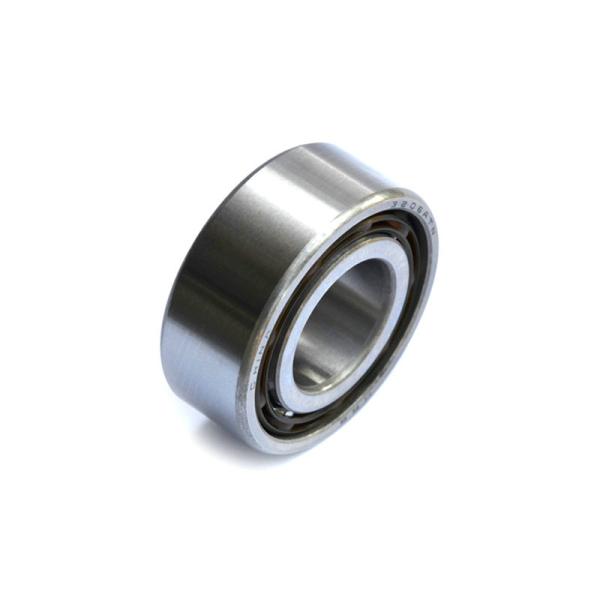

Double Row Angular Contact Ball Bearing 5206 ZZ
Angular Contact Ball Bearings:
Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, it often adopts mounting in pair. As matched pairs of bearings, preload for them is more convenient. Retainer are made of brass, synthetic resins or others subject to individual bearing feature and application conditions.
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.
Application:
(1)The single row:
machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft
(2) double row:
oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery
More Model Number We can Supply
| New Model | Old Model | ID(mm) | OD(mm) | Width(mm) | Weight(KG) |
| 5200 | 3200 | 10 | 30 | 14.3 | 0.049 |
| 5201 | 3201 | 12 | 32 | 15.9 | 0.057 |
| 5202 | 3202 | 15 | 35 | 15.9 | 0.064 |
| 5203 | 3203 | 17 | 40 | 17.5 | 0.096 |
| 5204 | 3204 | 20 | 47 | 20.6 | 0.153 |
| 5205 | 3205 | 25 | 52 | 20.6 | 0.175 |
| 5206 | 3206 | 30 | 60 | 23.8 | 0.286 |
| 5207 | 3207 | 35 | 72 | 27 | 0.436 |
| 5208 | 3208 | 40 | 80 | 30.2 | 0.59 |
| 5209 | 3209 | 45 | 85 | 30.2 | 0.64 |
| 5210 | 3210 | 50 | 90 | 30.2 | 0.689 |
| 5211 | 3211 | 55 | 100 | 33.3 | 0.986 |
| 5212 | 3212 | 60 | 110 | 38.1 | 1.27 |
| 5213 | 3213 | 65 | 120 | 39.7 | 1.57 |
| 5214 | 3214 | 70 | 125 | 41.3 | 1.8 |
| 5215 | 3215 | 75 | 130 | 44.4 | 1.9 |
|
