70m/min Light Keel Roll Forming Machine Metal Profile Drywall Framing System

70mmin drywall framing system metal profile rolling forming machine

70mmin drywall framing system metal profile rolling forming machine is designed to make the metal profiles in batch fully automatically. Drywall Framing is backed by comprehensive laboratory testing for strength, fire and sound. No other drywall framing system has been as thoroughly tested as Pro-STUD. So not only is it a dream to work with, but it also has the performance to meet the requirements of today’s building codes. Here I will show you one machine, which can be used to make some type high tech drywall framing system metal profiles. Here are some drawing profile for your reference:

About the metal embossing part:

Installation

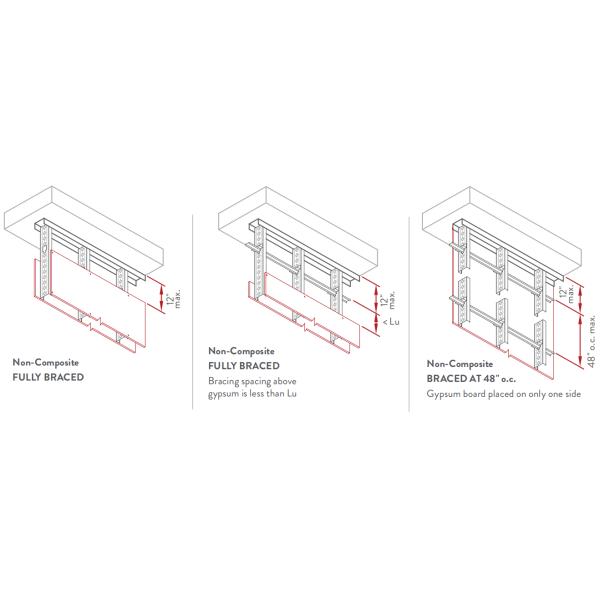

Non-composite conditions are common in all structures. When the gypsum board stops at the ceiling level, but the stud continues to the deck, it is a non-composite condition. Wall framing with Deflection Track, Resilient Channel (RC) or Sound Clips is a non-composite design since the screws attaching the gypsum board are not directly attached to the framing or top track. While there may be advantages to contacting Technical Services or a Design Professional, many conditions can be covered by limiting heights tables shown in this catalog .

70mmin drywall framing system metal profile rolling forming machine

Work flow for automatic stud & track machine

Part 2&3: Leveling & roll forming system

1) There is hand wheel on the feeding part, easy for you adjust the feeding size when produce different sizes of products

2) There is also guiding device, easy for the material go into the machine smoothly and quickly.

3) Please check the yellow box, there is oil drip device on the feeding part, it can make oils on the products, in case the finished studs are rust. We use split rollers to realize one machine to produce different sizes of drywall studs, you can adjust the size automatically by PLC.

Parameters of the machine for your reference:

Rolling shaft :Shaft material: 45# steel

Shaft diameter: 60 mm

Tempering treatment Roller

Roller material: Cr12 Quenched treatment

Rolling station number : 14 stations

Work speed : 0-70 m/min(without knurling) 0-60m/min(with knurling)

Machine frame : Base use high quality H steel;

Vertical iron arch casting frame structure

Bearing : Chinese famous brand Harbin ( high quality)

Work power :7.5 kw+11kw

70mmin drywall framing system metal profile rolling forming machine working videos for your reference:
