Categories | TN LCD Display |
---|---|
Brand Name: | gena |
Place of Origin: | china |
MOQ: | 1000pcs |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50000PCS/Day |
Delivery Time: | 10-15 days |
Packaging Details: | Carton/Pallet |
Customized: | Customized |
Backgroundcolor: | Black |
Display Color: | White |
Display Mode: | Positive |
Display Type: | Reflective |
View Angle Direction: | 6 O′clock |
Vop: | 2.9V |
Duty: | 1/4 |
Bias: | 1/3 |
Connector: | Zebra |
HS Code: | 8531200000 |
Operating Temp: | -0ºC-+50ºC |
Storage Temp: | -10ºC-+60ºC |
Production Capacity: | 800000000pieces/Year |
Transport Package: | Carton/Pallet |
Product Parameters
LCD Type | TN |
Display Type | Positive |
Display Mode | Reflective |
View Angle | 6 o'clock |

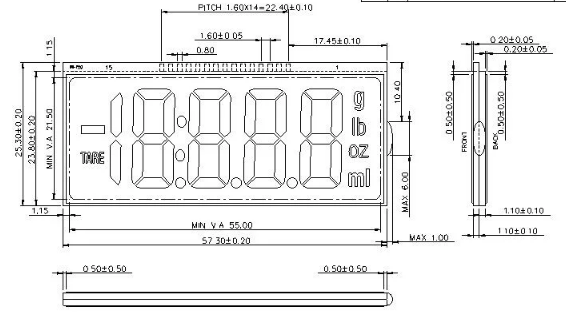

Active Area | 57.1*25.1mm |
Driving Condition | VDD2.9V |
Duty 1/4 | |
Bias 1/3 | |
Connector | Zebra |
Display Technology | TN |
Operating Temperature | -0ºC-+50ºC |
Storage Temperature | -10ºC-+60ºC |
Specification | RoHS SGS |
Applications
TN lcd display can be widely used in various industries such as,instruments and metersoffice equipments,
industrial control,household appliancecommunicationsmedical treatment,bank display terminals
digital products,navigation and so on.
![]() |
