| Categories | Cable Testing Machine |
|---|---|
| Brand Name: | AI |
| Model Number: | AIZDG-25 |
| Certification: | ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 Set Resistance to Abrasion Test Instrument |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 15 days |
| Packaging Details: | Resistance to Abrasion Test Instrument is packed in plywood case |
| Test Standard: | GB/T4074.3-2008,IEC60851-3 |
| Displacement distance of painting scraper: | copper wires covered with φ0.018-φ3.000mm enamel |
| Movement speed of painting scraper: | 400±40mm/min |
| Diameter of scraper: | 0.23±0.01mm |
| Test voltage: | DC6.5±0.5V |
| Short-circuit current: | 20±0.5mA |
| Power consumption: | ≤150W |
| Overall Dimension: | 640×350×355mm |
| Weight: | 45KG |
| Display: | LED |
| Company Info. |
| Advanced Instruments Co.,Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Performance Characteristics
1.Executive standard: GB/T4074.3-2008/IEC60851-3; Inspection
standard: JB/T4279.9-2008

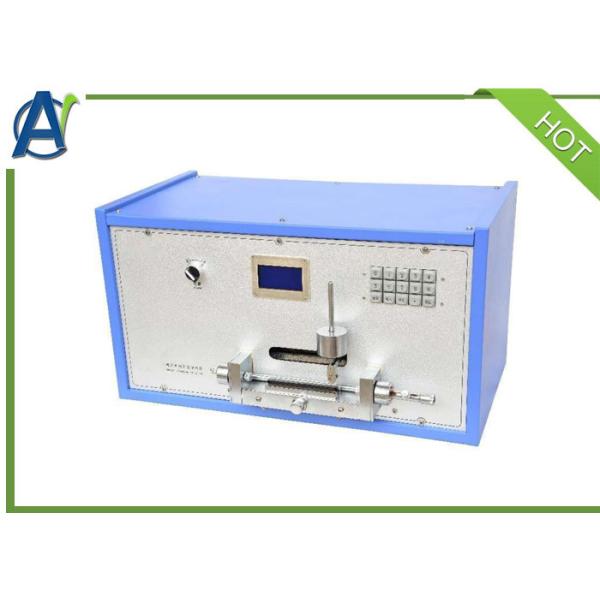

2.This Resistance to Abrasion Test Instrument is used to measure
the film scrap resistance of enameled round wires with nominal
conductor diameter above 0.250mm;
3.Application of SCM control allows for fast operation and strong
anti-interference capacity;
4.This Resistance to Abrasion Test Instrument can automatically
complete the whole test process and work out the average of
scraping forces obtained in three times;
5.Sample support table allows for parallel rise and fall,
maintaining close contact between the entire plane with sample;
6.As driven by precision linear rail, scraper is free from shake
during movement;
7.When film is scratched, painting scraper would automatically stop
scraping, with exposed conductor of sample<3mm;
8.Chinese/English LCD displays test operating procedure and test
results;
Major Technical Parameters
| Displacement distance of painting scraper | >100mm |
| Movement speed of painting scraper | 400±40mm/min |
| Diameter of scraper | 0.23±0.01mm |
| Test voltage | DC6.5±0.5V |
| Short-circuit current | 20±0.5mA |
| Scraping force error | <±5% |
| Input power | AC220V±10% 50Hz |
| Power consumption | <150W |
| Overall dimensions | L×W×H 640×350×355mm |
| Weight | 45kg |
|
