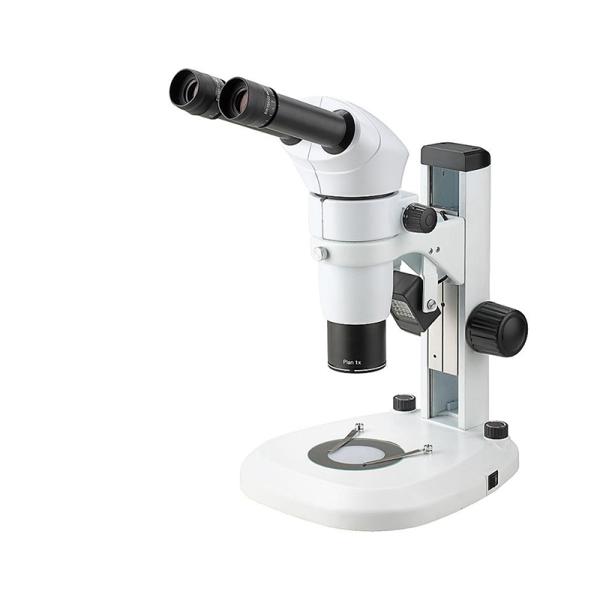

Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x

Categories Stereo Optical Microscope
Brand Name: OPTO-EDU
Model Number: A23.1001
Certification: CE, Rohs
Place of Origin: China
MOQ: 1pc
Price: FOB $1~1000, Depend on Order Quantity
Payment Terms: Western Union, T/T Paypal
Supply Ability: 5000 pcs/ Month
Delivery Time: 5~20 Days
Packaging Details: Carton Packing, For Export Transportation
Head: Binocular Head 20° Inclined
Eyepiece: Extra Wide Field Eyepiece EWF10x/22mm,Diopter Adjustable,Interpupillary 55-75mm
Auxiliary Lens: Plan Achromatic Lens 1.0x
Focusing: Coarse Focusing Konb, Range 105mm
Illumination: Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
Working Distance: 78mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Inclined Head A23.1001 Stereo Zoom Binocular Microscope Max 0.8~8x

  • Parallel Optical System, Module Design to Add Function Easily
  • Large Zoom Ratio Up to 1:10 With Tilting Head 0°-35° Viewing Angle Adjustable for User
  • Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
  • Complete Accessories Include Polarizing, Dark Field, Fluorescent Attachment
  • Plan Apochromatic Objective 0.5x Optional













A23.1001 Zoom Stereo MicroscopeA23.1001-06A23.1001-08A23.1001-10
Optical SystemParallel Optical System, Module Design to Add Function Easily
HeadBinocular Head 20° Inclined
Titling Head 0°-35° Viewing Angle Adjustable for User
With Titling Head, Model Change to A23.1001-T
ooo
EyepieceExtra Wide Field Eyepiece EWF10x/22mm,Diopter Adjustable,Interpupillary 55-75mm
Zoom Body0.8~5.0x, Zoom Ratio 1:6--
0.8~6.4x, Zoom Ratio 1:8--
0.8~8.0x, Zoom Ratio 1:10--
Auxiliary LensPlan Achromatic Lens 1.0x
Working Distance78mm
FocusingCoarse Focusing Konb, Range 105mm
Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm
IlluminationTransmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
A23.1001 Zoom Stereo MicroscopeCata. No.
HeadTitling Head 0°-35° Viewing Angle Adjustable for User
Model Change to A23.1005
A53.1014
EyepieceWF15x/16mmA51.1027-1516
WF20x/12mmA51.1027-2012
WF30xA51.1027-30
Auxiliary LensPlan Apochromatic Lens 0.5xA52.1023-05A
Plan Achromatic Lens 1.0xA52.1023-10
Plan Achromatic Lens 2.0xA52.1023-20
Achromatic Lens 0.3xA52.1023-03
Achromatic Lens 0.5xA52.1023-05
IlluminationCoaxial Illumination Set:A56.1021
--Cold Light Power Supplier,
--Dual Light Guide,
--Coaxial Episcopic Illuminator,
--Iris Diaphragm
Iris DiaphragmA56.1021-2
Working StageTemperature Control StageA54.1004
Movable Working StageA54.1007
Stand Click to SeeUniversal Table StandA54.1011
A54.1012
Track Stand, Transmit & Reflect Light Source
With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F
A54.1013
A54.1014
A54.1019
A54.1020
A54.1021
Fluorescent
EPI-Fluorescent Attachment For Stereo Microscope
Model Change to A36.100-F
A5F.1020
Dark FieldDark Field Attachment For Stereo MicroscopeA5D.1001
PolarizingSimple Polarizing Attachment For Stereo MicroscopeA5P.1003
LCD Monitor8.4" TFT Touch Screen LCD Monitor & Connector
Model Change to A36.1001
A59.1006
AdapterPhoto Tube, Beamsplitter 1 PortA55.1003-S1
Photo Tube, Beamsplitter 2 PortA55.1003-S2
Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR CameraA55.1020-2X
C-mount 0.5xA55.1021-05
C-mount 1.0xA55.1021-10
