| Categories | Button Type Load Cell |
|---|---|
| Series: | Capsule type load cell |
| Mounting Type: | Fixed installation |
| Description: | Capsule type load cell, SC220 |
| Model Number: | SC220 |
| Type: | Load Cell |
| Place of Origin: | Guangdong, China |
| Brand Name: | SNC |
| Use: | Force measurement |
| Theory: | strain gauge sensor |
| Output: | mV/V |
| Product name: | SC220 load washer load cell |
| Capacity: | 50kg-5000kg |
| Rated Output: | 1.0-1.5 mV/V |
| Input resistance: | 735±35 ohm |
| Output resistance: | 700±3 ohm |
| Recommended excitation voltage: | 5-12VDC |
| Insulation resistance: | ≥5000MΩ |
| Operating temp. range: | -30~+70℃ |
| Safe overload: | 120 %RO |
| Accuracy: | 0.2% |
| Price: | $50-100/units |
| Company Info. |
| Hunan Jinlian Cloud Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Features:
Model: SC220
Capacity: 50kg, 100kg, 200kg, 300kg, 500kg, 1T, 2T, 5T
Material: Stainless steel

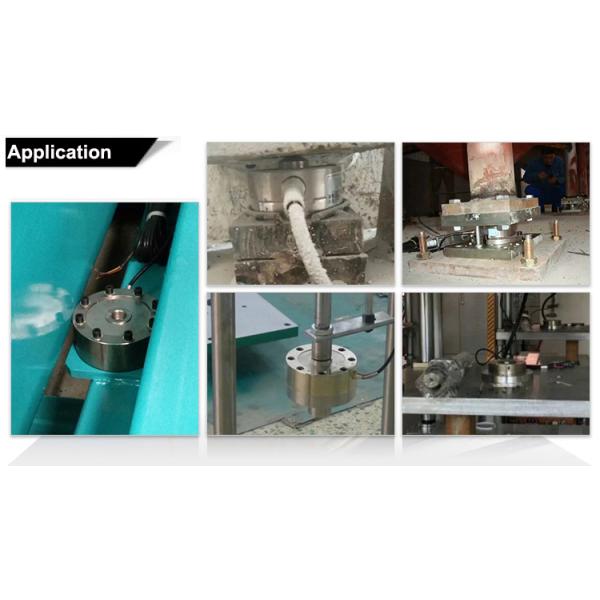

Application: testing machine, force measure and control system
Parameter:
| Model Number | SC220 |
| Capacity | 50kg,100kg, 200kg, 500kg, 1ton, 2ton 5ton |
| Rated Output | 1.5±0.1 mV/V |
| Accuracy | 0.20%F.S |
| Linearity | ±0.3%F.S |
| Hysteresis | ±0.3%F.S |
| Repeatibility | ±0.3%F.S |
| Zero Balance | ±1%F.S |
| Comprehensive Error | 0.5%FS |
| Inout Impedance | 370±20 ohm |
| Output Impedance | 352±2 ohm |
| Insulation | ≥5000MΩ |
| Temperature range | -30~+70℃ |
| Safe Overload | 120%F.S |
| Ultimate overload | 150% F.S |
| Excitation Voltage | 5-12VDC |
| Water proof grade | IP66 |
| Cable length | dia.3 × 2000 mm, 4 core shield cable |
| Material | stainless steel |
| Cable definition | RED:EXC+ /Black:EXC-/Green:Signal +/White:Signal - |
| Sensorcon Product Lists | |||
| Strain Gauge | Load Cell | Torque Sensor | Display |
| Linear Strain gauge-AA | Wireless sensor | Slip ring rotary torque sensor | Platform scale display |
| Half bridge strain gauge-BB,HA,GB,FB | Micro load cell | Contactless rotary torque sensor | Truck scale display |
| Shear/torque strain gauge-AB,HA | Single point load cell | Static torque sensor | Controller |
| Full bridge strain gauge-EB, FG,FD | Button load cell | Meters | Junction box |
| Tee Rosettes strain gauge-CA,BA | Shear beam load cell | Coupling | Big screen display |
| Round type strain gauge | S type load cell | Amplifier | |
| Semi-conductor strain gauge | Column load cell | ||
| Bridge type load cell | |||
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
1.How to place an order ?
Please provide us more details of what you want, such as:
application, measurement range, output, accuracy, thread type,
electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a
big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your
payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are
fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some
products we offer 15month to 24 months warranty.
