| Categories | LED Point Lights |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | XQD |
| MOQ: | 20 pieces |
| Price: | $0.50 - $0.79/pieces |
| Model Number: | k25/35/45 |
| Delivery Time: | 10 work days |
| Certification: | CE, RoHS, FCC |
| Packaging Details: | XQD PACKING/customized |
| Supply Ability: | 50000PCS/Day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Color Temperature(CCT): | 6000K (Daylight Alert) |
| Input Voltage(V): | DC 24V |
| Warranty(Year): | 5-Year |
| Type: | LED Modules |
| Support Dimmer: | Yes |
| Lighting solutions service: | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation |
| Luminous Efficacy(lm/w): | 80 |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 |
| Chip Material: | Epistar |
| Emitting Color: | Tri-Color(Red-Blue-Green) |
| Luminous Intensity: | 10000 |
| Luminous Flux(lm): | 63.3 |
| Optical Attenuation(%): | 2 |
| Power: | 0.72-1.92W |
| Power Dissipation: | DC12-24V |
| Viewing Angle(°): | 120 |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | RGB with IC |
| Operating Temperature(℃): | -25 - 45 |
| Storage Temperature(℃): | -30 - 60 |
| Usage: | Indoor &Outdoor |
| IP Rating: | IP68 |
| IC chip: | TM1914/RT16703 |
| LED Chip: | SMD5050 |
| name: | K Series point light |
| Company Info. |
| Shenzhen Xinqidian Photo-Electric Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product features:
Furniture and display Lighting:
Display cabinets and shelves: used for lighting display cabinets
and shelves to highlight product characteristics.
Artwork lighting: illuminates artwork to enhance display effect.
Special Application:
Water lighting: Used for water feature edge or underwater lighting
to create unique visual effects.
Interactive installation: Combine sensors to create an interactive
lighting experience.
K25 Dust proof engineering point light source technical parameters
| Basic product parameters | Product protection parameter | ||
| Product model | XQD-K25 | Waterproof grade | IP67 |

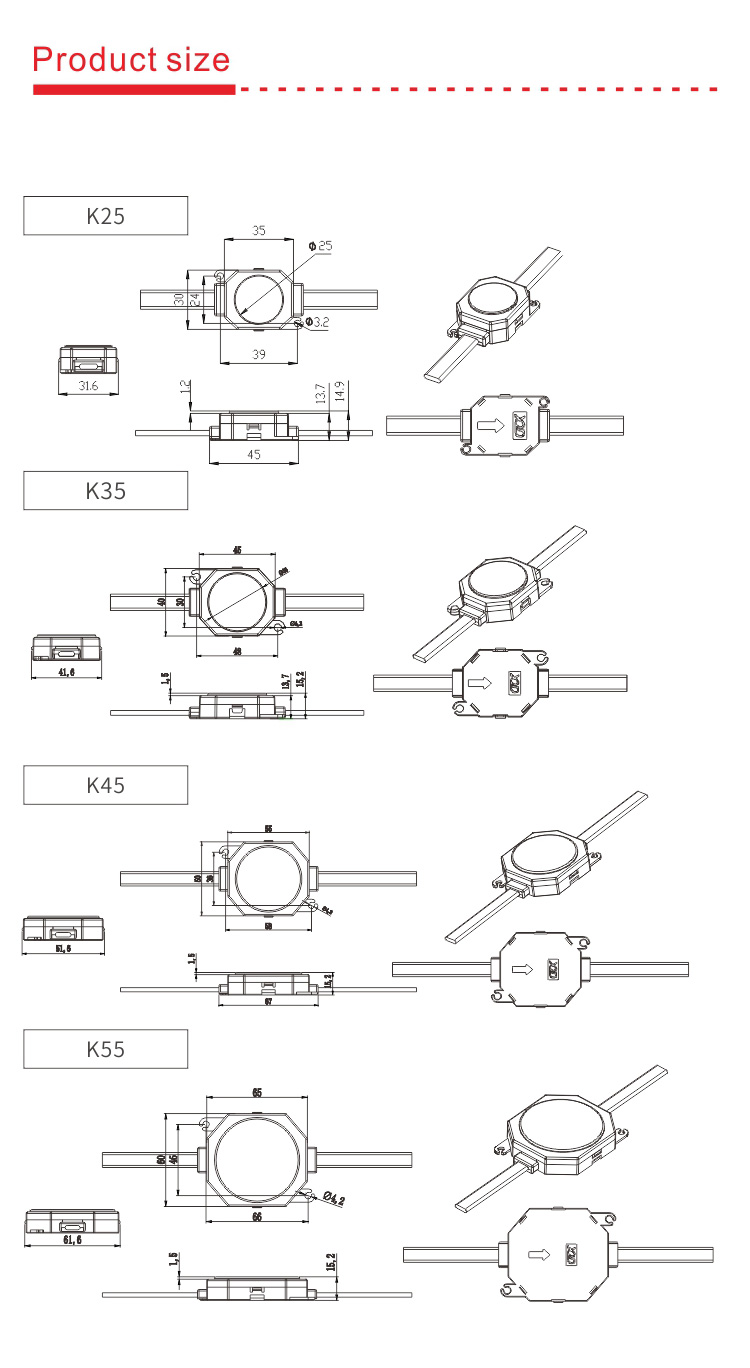

| Product size | 35mm*30mm*15.2mm | Shell flame retardant | V-0 |
| Application environment | Indoor and outdoor | UV resistance grade | 4 |
| Product weight | About 22g | Salt spray test | Salt spray resistance |
| Shell material | PC | Impact resistance | IK10 |
| Maximum number of connections | 100PCS/string | Electrical safety class | Ⅲ class |
| Center distance | Minimum 10CM | Safety certification | CE FCC ROHS |
| Average product life | 50,000 hours | Operating temperature | -40℃-55℃ |
| Optional accessories | Aluminum groove, steel wire buckle | ||
| Wire core | 2x0.75mm2+3x0.3mm2 | ||
| Wire material | PVC | ||
| PCB material | FR-4 Fiberglass board | ||
| Product optical parameters | Electrical parameters of the product | ||
| LED color | RGB | Operating voltage | DC12V |
| Luminous Angle | 120° | Rated power | 0.72W |
| Color resolution | 3*8bit | Supporting system | |
| Lamp bead | SMD3535*3LED | Control system | DMX512 |
| Pixel point luminous flux | 21LM | Power supply system | DC12V Constant voltage |
| luminance | 6-7cd | ||
|
