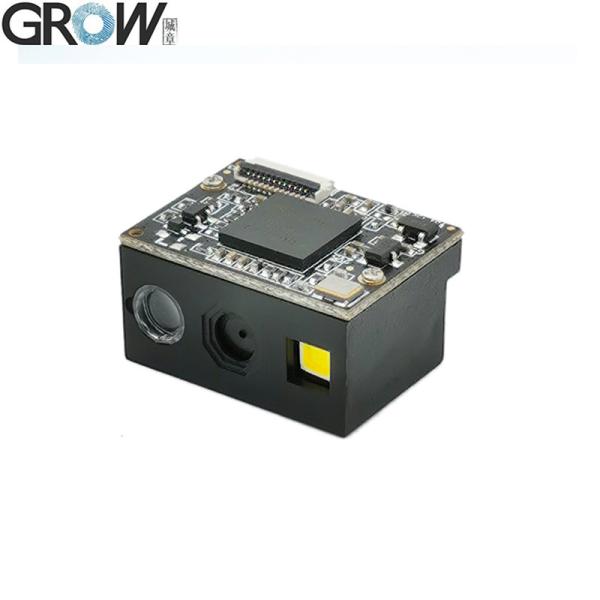

GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader

Categories	Barcode Scanner Module
Place of Origin:	China
Certification:	CE
MOQ:	1
Packaging Details:	Carton
Delivery Time:	Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms:	T/T,PayPal
Supply Ability:	5000
Operating Current:	180mA
Interface:	USB/Uart
Resolution:	1d>=4mil, 2D>=7.54mil
Size:	21.4(W)16(D)12(H)mm
Scan Mode:	1280*800 CMOS
Transport Package:	Standard Export Carton Package
Specification:	Black
Trademark:	GROW
Origin:	China
HS Code:	8473309000
Interface Type:	Uart, USB
Scan Element Type:	CMOS
Operating Voltage:	3.3V
Samples:	US$ 43/Piece 1 Piece(Min.Order) \|
Customization:	Available \| Customized Request
Shipping Cost:	about shipping cost and estimated delivery time.
Payment Method:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You can apply for a refund up to 30 days after receipt of the products.

Contact Now

Add to Cart

Company Info.

Hangzhou Grow Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

GROW GM69-S 1280*800CMOS High Density Bar Code Readable 1D 2D USB UART PDF417 Bar Code Qr Code Scanner Module Reader

Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

Scanning Performance	Scan Mode		1280*800 CMOS
	Lighting		White LED
	Collimate		Red LED
	Read Code Type	2D	QR Code, Data Matrix, PDF417,Aztec,Micro QR, Micro PDF417,Maxicode,Hanxin Code
		1D	EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar,
			Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey
			GS1 Databar ,Code 11,Industrial 25,GS1 Composite
			Standard 25,Plessey, Matrix 2 of 5
	Accuracy of reading		1D≥4mil , 2D≥7.54mil
	Depth of Field	EAN-13	35mm-220mm (13mil 13byte)
		Code 39	30mm-135mm (5mil 4 byte)
		QR Code	45mm-460mm (20mil 16 byte)
		Data Marix	25mm-180mm (10mil 20 byte)
		PDF417	30mm-160mm (6.67mil 7 byte)
	Contrast		≥25%
	Scanning angle		Intersection angle 360°,Elevation ± 55° Deflection angle ± 55°
	Viewing Angle		H:52° V:38°
Mechanical/ Electrical Parameters	Interface		TTL-232 , USB (HID-KBW, Virtual serial port)
	Dimension		21.4(W)16(D)12(H)mm
	Operating Voltage		DC 3.3V
	Operating Current		180mA
Environmental Parameters	Operating Temperature		-20ºC~+50ºC
	Storage Temperature		-40ºC~+70ºC
	Operating Humidity		5%~95%(Non-Condensing)
	Environmental Light		0~100000LUX

Files

·Provide User Manual

You can download the GM69-S user manual from this website link:
https://hzgrow.en.made-in-china.com
