7.84 inch LCD TFT display with 400*1280 Resolution and 850nits Brightness
Product Description:
HC078IW85048-D24V02 is a premium 7.84-inch Bar Type TFT Display Screen with a resolution of 400*1280 and a backlight luminance of 850nits, this LCD TFT Display can offer awesome images and bring superior color reproduction to users.This display is embedded in a compact frame with the size of 67.80*205.78*4.75mm, offering active area of 59.40*190.08mm.It comes with IPS panel, which makes it be compatible with various equipment,such as,video splice processor, lighting control cosole. Its exceptional features and high- performance make it become a ideal option for harsh requirements.With 40pin MIPI interface, making sure users can transmit integral data reliably without transmission issues. Furthermore, this display’s feature of wide temperature can ensure its stable operation in a variety of harsh environments!
General Specification:
| P/N | HC078IW85048-D24V02 |
| Size | 7.84 inch |
| Display type | Normally Black/Transmissive |
| Resolution | 400*1280 |
| Outline Dimension(mm) | 67.80(W)*205.78(H)*4.75(D) mm |
| Active Area(mm) | 59.40(W)*190.08(H) mm |
| Brightness(cd/m²) | 850 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinMIPI |
| Operation Temperature | -20~70℃ |
| Storge Temperature | -30-80℃ |
| Aspect ratio | ＜1:3 |
| Contrast ratio | 900 |
| Application | video splice processor, lighting control cosole |

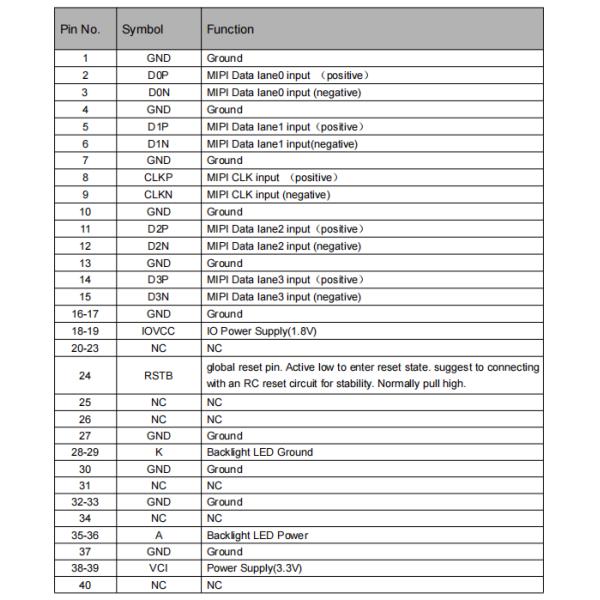

Pin assignment:
Electrical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Supply Voltage | Vf | - | 18 | - | V | If=160mA |
| Supply Current | If | - | 160 | 180 | mA | - |
| Life Time | - | 20000 | - | - | hrs | If=160mA |
Product drawings:
Bar type lcd display series:
Bar Type LCD Display Sizes | |||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 3.9" | HC039IX80036-F64 | IPS | 480*128 | 102.46*34.40*3.6mm | 95.04*25.34mm | 40pinRGB | 1000 | 800 | -20~70℃ | -30~80℃ |
| 2 | 4.1" | HC041IXA5030-F77 | IPS | 1280*640 | 106.9*61.9*2.9mm | 92.544*46.272mm | 40pinRGB | 1500 | 1500 | -40~105℃ | -40~105℃ |
| 3 | 6.86" | HC068IS55046-B67 | IPS | 480x1280 | 66.5*180.8*4.64mm | 60.22x160.58mm | 40pinMIPI | 1500 | 500 | -20~85℃ | -30~85℃ |
| 4 | 6.86" | HC068IS55046-F03 | IPS | 480*1280 | 66.60*181.00*4.6mm | 60.22*160.59mm | 40pinMIPI | 900 | 550 | -20~85℃ | -30~85℃ |
| 5 | 7" | HC070Ix35035-D39 | IPS | 280x1424 | 38.2*181.5*3.45mm | 33.6*170.88mm | 40pinMIPI | 1000 | 350 | -20~70℃ | -30~80℃ |
| 6 | 7" | HC070Ix35035-D39V.C | IPS | 280*1424 | 52.0*189.28*6.4mm | 33.6*170.88mm | 20pinMIPI | 1000 | 300 | -20~70℃ | -30-80℃ |
| 7 | 7.84" | HC078IW85048-A24 | IPS | 400*1280 | 67.8*205.78*4.75mm | 59.40*190.08mm | 40pinLVDS | 900 | 850 | -20~70℃ | -30-80℃ |
| 8 | 7.84" | HC078IW85048-D24V02 | IPS | 400*1280 | 67.8x205.78x4.75mm | 59.40x190.08mm | 40pinMIPI | 900 | 850 | -20~70℃ | -30-80℃ |
| 9 | 7.84" | HC078IW45048-D24V.C | IPS | 400*1280 | 82.30*233.71*6.95mm | 59.40*190.08mm | 40pinMIPI | 900 | 380 | -20~70℃ | -30-80℃ |
| 10 | 7.84'' | HC078IW72067-B80V.G | IPS | 400*1280 | 67.80*205.78*4.75mm | 59.4*190.08mm | 40pinLVDS | 900 | 720 | -20~70℃ | -30-80℃ |
| 11 | 8.8'' | HC088IXA0045-F97 | IPS | 1280x480 | 229.7*97.3*4.5mm | 209.28*78.48mm | 60pinLVDS | 1000 | 1000 | -30-80℃ | -30-80℃ |
| 12 | 10.11'' | HC101IX25064-F13 | IPS | 440*1920 | 64.98*266.39*4.60mm | 57.95*252.86mm | 40pinMIPI | 1000 | 250 | -20~70℃ | -30-80℃ |
| 13 | 10.25'' | HC103IX80065-B06 | IPS | 1920*720 | 260.15*110.5*6.52mm | 243.648*91.368mm | 50pinLVDS | 1000 | 800 | -40~90℃ | -30~85℃ |
| 14 | 10.25'' | HC103IT80060-F95 | IPS | 1920*720 | 255.60x105.80x6.0mm | 243.65*91.37mm | 50pinLVDS | 1300 | 800 | -40~85℃ | -40~90℃ |
| 15 | 11.26'' | HC113IX50046-N88 | IPS | 440*1920 | 266.39*64.98*4.6mm | 57.908*252.69mm | 40pinMIPI | 500 | 500 | -20~70℃ | -20~75℃ |
| 16 | 12.3'' | HC123IT50032-E23 | IPS | 1920*720 | 302.03*124.31*3.20mm | 292.03*109.51mm | 50pinLVDS | 1000 | 500 | -30~85℃ | -30~85℃ |
| 17 | 12.3'' | HC123IT50032-E23V.C | IPS | 1920*720 | 326.63*142.11*5.25mm | 292.03*109.51mm | 50pinLVDS | 1000 | 500 | -30~85℃ | -40~90℃ |
| 18 | 12.3'' | HC123ITA0068-D88 | IPS | 1920*720 | 310*128*6.4mm | 292.03*109.51mm | 50pinLVDS | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 19 | 12.3'' | HC123IT80068-D88V.C | IPS | 1920*720 | 326.63*141.81*8.50mm | 292.03*109.51mm | 50pinLVDS | 1000 | 800 | -30-80℃ | -30-70℃ |
| 20 | 15'' | HC150IT80068-F72 | IPS | 1920*720 | 371.12*150.95*6.8mm | 355.68*133.38mm | 60pinLVDS | 1300 | 800 | -30~85℃ | -40~90℃ |
| 21 | 15'' | HC150IT90093-F72V.C | IPS | 1920*720 | 379.42*160.05*9.3mm | 355.68*133.38mm | 60pinLVDS | 1300 | 900 | -30~85℃ | -40~90℃ |
| 22 | 19.1'' | HC191IX700A1-A88 | IPS | 1920*340 | 497.4*109.5*14.5mm | 476.64*84.405mm | 30pinLVDS | 1000 | 700 | 0~50℃ | -20~60℃ |
| 23 | 19.4'' | HC194IXB00A2-F20 | IPS | 1920*510 | 495.6*150.7*12mm | 476.64*126.6mm | 30pinLVDS | 3000 | 2000 | 0~50℃ | -20~60℃ |
| 24 | 19.5'' | HC195IX500A2-N88 | IPS | 1920*540 | 495.6*158*12mm | 476.64*134.055mm | 30pinLVDS | 3000 | 500 | 0~50℃ | -20~60℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty
from the start of shipping.
If there are special conditions, the warranty time will be
separately notified.
|
