| Categories | 5 inch TFT LCD Display |
|---|---|
| Brand Name: | HETECH |
| Model Number: | HC050IG40031-B04V.C |
| Certification: | ISO9001,ISO14001,ISO13485,IATF16949 |
| Place of Origin: | China |
| MOQ: | 100pcs |
| Payment Terms: | T/T |
| Supply Ability: | 50K/month |
| Delivery Time: | 4-6weeks |
| P/N: | HC050IG40031-B04V.C |
| Size: | 5"(IPS) |
| Display type: | (IPS) |
| Resolution: | 800*480 |
| Outline dimension: | 127.0(W )*85.8(H)*4.8(D)mm |
| Active area: | 108(W)*64.8(H)mm |
| Brightness: | 350cd/m2 |
| Interface: | 40pinRGB |
| Viewing angle: | 80/80/80/80 |
| Operation Temp.: | -20~70℃ |
| Storage Temp.: | -20~70℃ |
| Contrast ratio: | 1000 |
| Aspect rati16:9o: | 16:9 |
| Application: | deskphone, fishfinder, digital race dash, micro spectrophotometer |
| Company Info. |
| Heng Cheng Electronics Technology (HK) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
5-inch touch screen LCD display module with 350nits Brightness and 800*480 resolution
Product Description:
HC050IG40031-B04V.C is a 5-inch IPS display with a capacitive touchscreen designed to enhance your interactive solutions. It features a precision multi-touch panel, which offers a brightness of 350nits and receives a non-glare treatment for improved visibility. With a resolution of 800*480 pixels and a contrast ratio of 1000:1, this display is not inferior to other displays in terms of color performance. Its interface of 40pin RGB meets most users’ requirements for the signal transmission and color reproduction. The outline size of this display is 120.70mm*85.80mm*4.80mm, and the active area is 108.00mm*64.80mm. It can be perfectly used in deskphone, fishfinder, digital race dash and micro spectrophotometer. In terms of operation temperature, the HC050IG40031-B04V.C can stay normal operating conditions at temperatures from -20℃ to 70℃.
General Specification:
| P/N | HC050IG40031-B04V.C |
| Size | 5inch |
| Display type | Normally Black,IPS,Anti-glare |
| Resolution | 800*480 |
| Outline Dimension(mm) | 127.0(W )*85.8(H)*4.8(D)mm |
| Active Area(mm) | 108(W)*64.8(H)mm |
| Brightness(cd/m²) | 350 |
| Viewing Angle(L/R/T/B) | 80/80/80/80 |
| Interface | 40pinRGB |
| Operation Temperature | -20~70℃ |
| Storge Temperature | --20~70℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | deskphone, fishfinder, digital race dash, micro spectrophotometer |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Voltage for LED backlight | Vf | - | 19.8 | - | V | If=40mA |
| Current for LED backlight | If | - | 40 | - | mA | - |
| LED life time | - | - | 20000 | - | hrs | If=40mA |

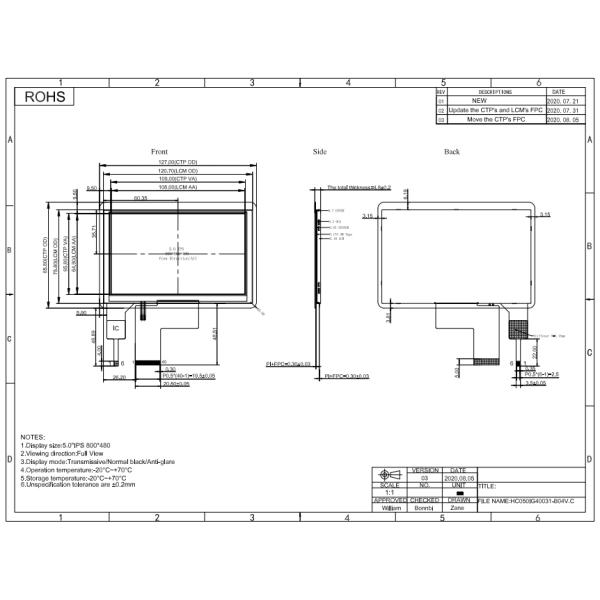

Product drawings:
5-inch lcd display series:
5-inch LCD Display Sizes | |||||||||||
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. | |||||||||||
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 5" | HC050IG25031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 2 | 5" | HC050IG40031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 400 | -20~70℃ | -30~80℃ |
| 3 | 5" | HC050IG50031-B04V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 500 | -20~70℃ | -30~80℃ |
| 4 | 5" | HC050IG80031-B04V03 | IPS | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 1000 | 800 | -20~70℃ | -30~70℃ |
| 5 | 5" | HC050IG80031-B04V05 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 6 | 5" | HC050IGA0031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1000 | -30~85℃ | -30~85℃ |
| 7 | 5" | HC050IGA5031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 1500 | -20~70℃ | -30-80℃ |
| 8 | 5" | HC050IGB0031-B04 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 1000 | 2000 | -20~70℃ | -30-80℃ |
| 9 | 5" | HC050IG35031-B04 | IPS | 800*480 | 120.7×76.4×3.1mm | 108*64.8mm | 50pinRGB | 800 | 350 | -20~70℃ | -20~70℃ |
| 10 | 5" | HC050IG40031-B04 | IPS | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 1000 | 400 | -20~70℃ | -30-80℃ |
| 11 | 5" | HC050IG40031-B04V.C | IPS | 800*480 | 127.0*85.8*4.8mm | 108*64.8mm | 40pinRGB | 1000 | 350 | -20~70℃ | -20~70℃ |
| 12 | 5" | HC050IG50031-B06V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 1000 | 500 | -20~70℃ | -30-80℃ |
| 13 | 5" | HC050IG40031-B06V01 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 1000 | 400 | -20~70℃ | -30-80℃ |
| 14 | 5" | HC050IG40029-D58 | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 20pinLVDS | 1000 | 400 | -20~70℃ | -30-80℃ |
| 15 | 5" | HC050IG40029-D58V.C | IPS | 800*480 | 130.70*85.80*4.68mm | 95.04*53.856mm | 20pinLVDS | 1000 | 300 | -20~70℃ | -30-80℃ |
| 16 | 5" | HC050IGA0031-B08H | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinLVDS | 1000 | 1000 | -20~70℃ | -20~70℃ |
| 17 | 5" | HC050IGA3070-F22 | IPS | 800*480 | 121*78.8*7mm | 108*64.8mm | 50pinRGB | 1000 | 1300 | -30~85℃ | --30~85℃ |
| 18 | 5" | HC050IG30029-F41V.C | IPS | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 12pinRGB | 1000 | 300 | -20~70℃ | -30~80℃ |
| 19 | 5" | HC050IV60016-B17 | IPS | 1080x1920 | 64.5x117.7x1.6mm | 61.641*109.584mm | 34pinMIPI | 1000 | 600 | -20~60℃ | -30~70℃ |
| 20 | 5" | HC050IV60016-B17 V.C | IPS | 1080x1920 | 64.5x117.7x1.6mm | 61.641*109.584mm | 34pinMIPI | 1000 | 600 | -20~60℃ | -30~80℃ |
| 21 | 5" | HC050TG25031-27 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 22 | 5" | HC050TG25031- 27V01 | TN | 800*480 | 120.7*75.8*3.1mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -20~70℃ |
| 23 | 5" | HC050TG40031-27 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 40pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 24 | 5" | HC050TG30029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 300 | -20~70℃ | -30~80℃ |
| 25 | 5" | HC050TGA0029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 26 | 5" | HC050IG30029-F41 | IPS | 800*480 | 120.7*76.3*4.75mm | 108*64.8mm | 12pinSPI | 1000 | 300 | -20~70℃ | -30~80℃ |
| 27 | 5" | HC050TG50029-D12 | TN | 800*480 | 120.7*75.8*2.9mm | 108*64.8mm | 50pinRGB | 500 | 500 | -20~70℃ | -30~80℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6
weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty
from the start of shipping.
If there are special conditions, the warranty time will be
separately notified.
|
