PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail

PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail

PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail
PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail
Categories PLC IO Module
Brand Name: Olycom
Model Number: OM523S-1BL22-TCP1
Certification: CE RoHS FCC
Place of Origin: Guangdong, China
MOQ: 1 pc
Price: Negotiable
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Delivery Time: 3~5 working days
Packaging Details: 1pc in a box
Product name: Modbus-TCP/IP io module
Use: Industrol Control
Protocol: Modbus-TCP/IP,S7-TCP/IP
Working Voltage: 24VDC (voltage range 18VDC~28VDC)
Protection Grade: IP20
Communication Interface: 2*RJ45
Working Temperature: -20~60℃
Contact Now
Company Info.
Shenzhen Olycom Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail

PLC Module Modbus-TCP/IP I/O Module 100Mbit/s

24VDC input 16DI +16DO IP20 Din Rail


Product Features of PAL I/O System


  • 2 RJ45 interfaces, 100Mbit/s
  • Bus, power isolation technology, and reliability
  • Standalone as Modbus-TCP slave station

Specification of Modbus-TCP/IP PAL I/O system


ModelOM52xS Modbus TCP Slave Module
Technical Specifications
Working Voltage24VDC (allowable voltage range 18VDC~28VDC)
Operating Current LossBased on different product models, please refer to the product manual for details
Power ProtectionAnti reverse connection protection, surge absorption
Communication Interface2*RJ45
Power Terminal TypePlugged connector, screw wiring connection port
Signal Terminal TypePlugged connector, straight in PUSH-IN wiring port
Display IndicationPower supply, NET green indicator light, SF red indicator light, IO signal green indicator light
ProtocolModbus-TCP/IP,S7-TCP/IP
Master-slave Categoriesstandalone slave devices
Main IO PointsYes, please refer to the ordering data for details
Overcurrent Protection Threshold1.5A,5ms
IO Response TimeMin 2ms
ScalabilityDo not support Extension
Cable length (shielding)Maximum 500m
Cable length (unshielded)The maximum length of the input point is 300m, and the maximum length of the output point is 150m
Slave Station Settings
IP SettingsSet by dial switch or webpage
Maximum number of Stations per Segment255 (The specific number of supported stations is determined by the main station)
Work Environment
Working Temperature-20~60℃
Working Humidity5%~90% (non-condensation)
AltitudeBelow 2000 meters (80kPa)
Protection GradeIP20
Dimensions (L* W* H)27mm*94mm*114mm

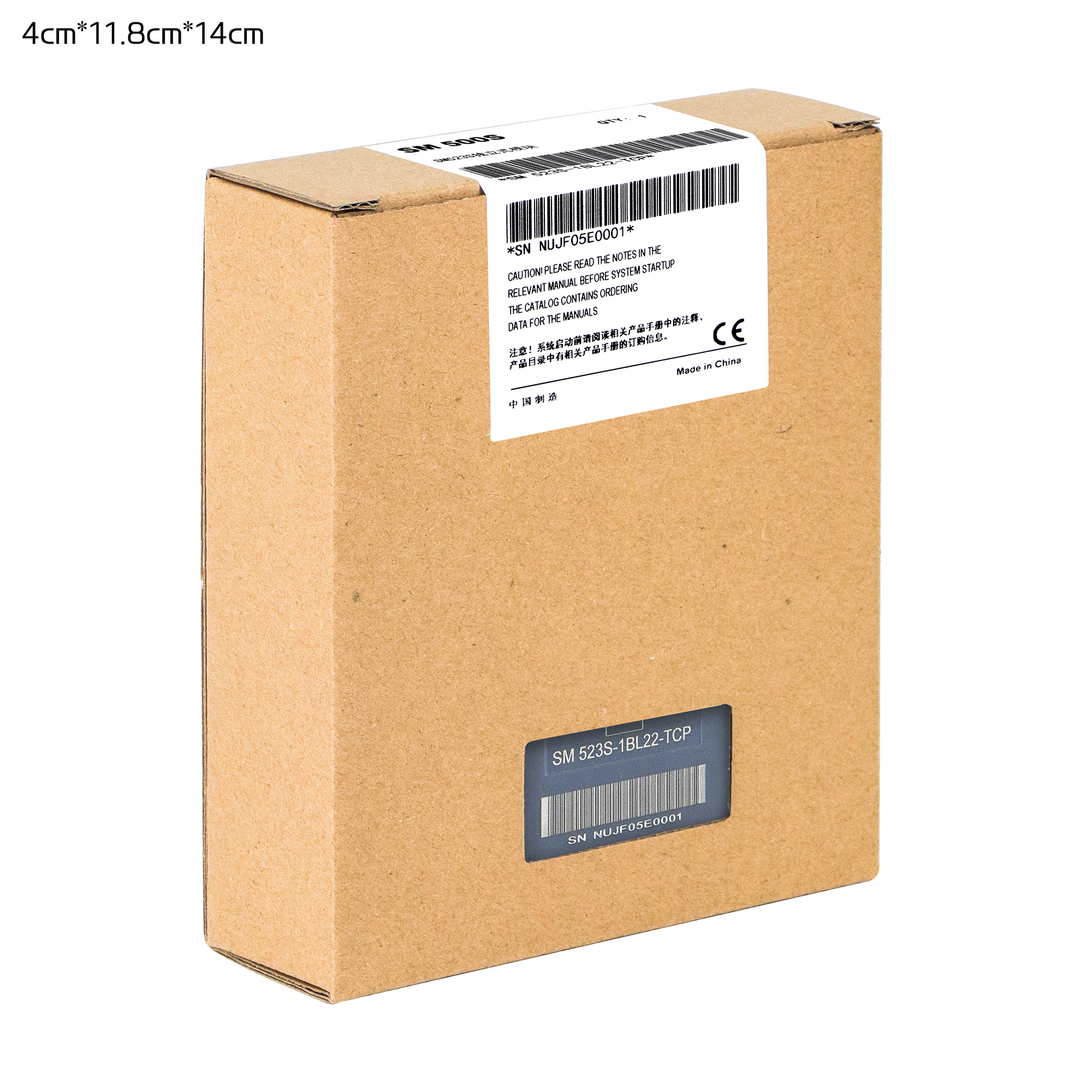

Packing



Ordering Details


SpecificationsProduct No.
OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (PNP output), IP20 protection level, supports DN35 rail installation

OM523S-1BL22-TCP

OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (NPN output), IP20 protection level, supports DN35 rail installation

OM523S-1NL22-TCP


FAQ:


1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
