Name: Precise Compressed Air Filter for Food Industry
Brand: Yuka
Price: 1 USD

Home > Industrial Controls >

Precise Compressed Air Filter for Food Industry

Categories	Activated Carbon Compressed Air Filter
Model No.:	YF-B100 ACS
Material:	Aluminum Alloy
Housing Serve Lige:	15 Years
Element Serve Life:	6000~8000 Hours
Filtration Performance:	From 5 μm To 0.01μm
Maxi. Operate Pressure:	1.6 Mpa
Operate Temperature:	1.5~80ºc
Connection:	Rc2 1/2"
Flow Rate:	13.0 M³/Min
Resistance Corrosion:	Inside And Outside
Color:	Light Blue
Trademark:	Yuka
Transport Package:	Brown Inner Box & Cardboard
Specification: Dimension:	174 X 142x 558mm
HS Code:	8421399090
Clapboard:	Without Clapboard
Filter Number:	1
Medium Material:	Fiberglass
Efficiency:	F5
Filtration Grade:	Medium Filter
Type:	Cartridge Filter
Place Of Origin:	China
Place of Origin:	China
Brand Name:	Yuka
Price:	Negotiable
Packaging Details:	Box Package
Delivery Time:	3-7working days
Payment Terms:	L/C,T/T
MOQ:	50pcs
Supply Ability:	300,000pcs/month

Contact Now

Add to Cart

Company Info.

Hongrijia Depurate Facility Science & Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Precise Compressed Air Filter for Food Industry

Product Description

Feature & Benefit

* Maxi.working pressure: 16 bar (232CFM),Maxi.working temperature: 80℃

* Rc1/2" to Rc 4" BSP connection, 1m³/min to 48 m³/min capacity

* Ball Valve for Water Drain System,Instead ofn auto drain trap, avoid unexpected blockages

* Internal & External with anti-corrision treatment

* Removed particles dust diameter up to 0.01 Micron, Oil residual content less than 0.003mg/m³

Filter Element Grades

-PF (5 μm) pre-filter

-AO (1 μm) precise air filter

-AA (0.01 μm) Ultra air filter

-AX (0.01 μm) After-filter

-ACS (0.003mg/m³) Activated Carbon, removed oil aerosol and vapour

-AR (1 μm), removed dust particle only

-AAR (0.01 μm), removed dust particle

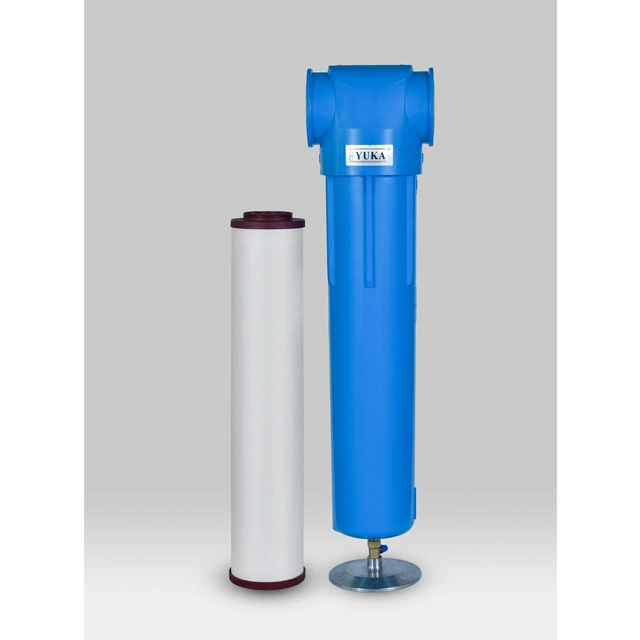

Product Picture
13.0 M³ /Min Capacity High Pressure Air Filter for Pneumatic Industry

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

Model	Pipe size	Flow rates			Dimension (mm)
Model	Pipe size	L/S	m³/min	scfm	W(Width)	D(Depth)	H(Height)	A	B	C
YF-B010	RC1/2"	16.7	1.0	35.5	96	79	245	29	223	118
YF-B020	RC3/4"	25.0	1.5	53.0	96	79	245	29	223	118
YF-B030	RC3/4"	30.0	1.8	63.6	96	79	274	29	257	153
YF-B040	RC1"	33.3	2.0	71.0	96	79	274	29	257	153
YF-B060	RC1"	60.0	3.6	127.0	138	111	349	37	421	303
YF-B070	RC1"	83.3	5.0	177.0	138	111	450	37	421	303
YF-B080	RC1-1/2"	125.0	7.5	265.0	138	111	450	37	421	303
YF-B090	RC2"	166.7	10.0	353.1	174	142	558	58	500	467
YF-B100	RC2-1/2"	216.7	13.0	459.0	174	142	558	58	780	794
YF-B110	RC2"	283.3	17.0	600.0	174	142	838	58	780	794
YF-B120	RC2-1/2"	316.7	19.0	671.0	174	142	838	74	571	514
YF-B130	RC3"	416.7	25.0	883.0	220	184	616	74	571	514
YF-B140	RC4"	466.7	28.0	989.0	220	184	616	74	571	514
YF-B150	RC3"	683.3	41.0	1448.0	220	184	892	74	828	764
YF-B160	RC4"	800.0	48.0	1695.0	220	184	892	74	828	764
Technical requirements	Maxi. operating pressure: 16 barg Operating temperature: 1.5°C~80°C

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51

Product Application
13.0 M³ /Min Capacity High Pressure Air Filter for Pneumatic Industry

YUKA CE & ISO9001-2015 Certificate

13.0 M³ /Min Capacity High Pressure Air Filter for Pneumatic Industry

YUKA Factory
13.0 M³ /Min Capacity High Pressure Air Filter for Pneumatic Industry

YUKA Attended Exhibitions in ComVac Asia & Hannover Messe

YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty

Q:Why choose us?
a. 24 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.

Frequently Asked Questions:

Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
