| Categories | 0.85"~2.8" TFT display |
|---|---|
| Brand Name: | HOTHMI |
| Model Number: | TFT-H028B23VGIST5N30 |
| Place of Origin: | dongguan,China |
| MOQ: | 2 |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 99999 |
| Delivery Time: | 25 days |
| Display content: | 480x640 dots |
| Dimensions (mm): | 65.9x50.9x2.36 |
| Field of view window size: | Full viewing angle |
| Backlight brightness: | 500cd/m2 |
| driver chip: | ST7701 |
| Interface: | MIPI |
| Operating Temperature:: | -20~70℃ |
| Company Info. |
| Hotdisplay Technology Co.Ltd |
| View Contact Details |
| Product List |

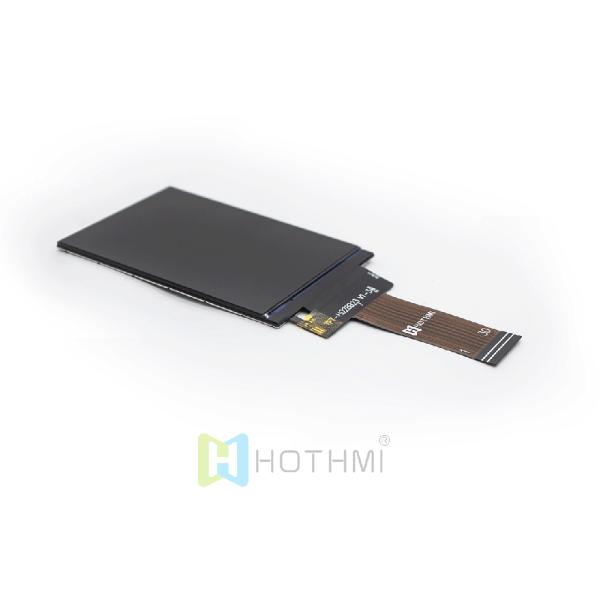

This 2.8-inch TFT LCD display is suitable for a variety of projects, from embedded systems to industrial equipment and handheld devices. It offers a crisp 480x640 pixel resolution and a bright LED backlight with a brightness of 500 cd/m², ensuring high-quality color images. It features a MIPI interface, which improves communication efficiency with devices such as Arduino and C8051. This flexible interface supports fast data transfer, enabling real-time updates, smooth animations, and dynamic visual effects.
While this display lacks touchscreen functionality and a glass cover, we can add touch functionality and a cover. We support custom cover glass, custom capacitive/resistive touchscreens, and custom FPCs. This product features IPS with a full viewing angle, ensuring excellent viewing quality from any angle. This makes it an ideal choice for projects that don't require touch functionality but require portrait mode visual output. The touchscreen model is the TFT-H028C2QVTST4C45, while the resistive touchscreen model is the TFT-H028A17QVTST2R37. These models come with an FPC cable that can be plugged in or soldered, allowing users to flexibly develop their own compatible control boards. They support development platforms such as Arduino and C8051. We also offer a 2.8-inch smart display with a driver board or a 2.8-inch SPI TFT LCD module with SPI communication. Users can easily assemble the display.
Furthermore, this display is RoHS-compliant and adheres to strict environmental and safety standards, demonstrating our commitment to both environmental protection and user safety. Overall, this display combines performance, flexibility, and reliability, making it suitable for a variety of modern electronic devices and projects.
| parameter | Specification content | Unit |
| TFT series | TFT-H028B23VGIST5N30 | |
| Diagonal size | 2.8” | Inch |
| Resolution | 480x640 | Dot |
| Dimensions | 65.9*50.9*2.36 | mm |
| Active area (AA) | 57.6*43.2 | mm |
| LCD type | TFT wide temperature and full viewing angle display | mm |
| Display viewing angle | IPS | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7701<TFT> or compatible | |
| Brightness | 500 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
|
