| Categories | PU Rod |
|---|---|
| Brand Name: | jiuna |
| Model Number: | 10mm-300mm |
| Certification: | iso9001:2015 |
| Place of Origin: | China |
| MOQ: | 100 PIECES |
| Supply Ability: | 100 Tons/Per Month |
| Delivery Time: | 7working days |
| Packaging Details: | Wooden Case or Woven Bags, Pallet |
| Tensile Strength: | 30-40MPa |
| Resistant to: | Oils, Greases, Solvents, and Many Chemicals |
| Diameter: | 10mm-300mm |
| Specification: | standard or customized |
| Origin: | China |
| Production Capacity: | 100 Tons/Per Month |
| Contraction Percentage: | 1.0%-2.5% |
| Hardness: | 60A-95A |
| Process: | Moulding ,Cutting |
| Transport Package: | Wooden Case or Woven Bags, Pallet |
| HS Code: | 3926909090 |
| Company Info. |
| Jiangsu Jiunai Intelligent Manufacturing Technology Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

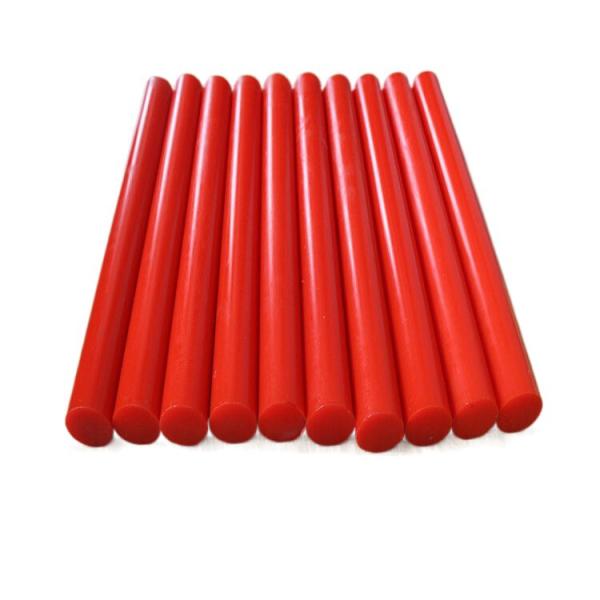

PU rods are specialist materials used widely in machining applications to provide a durable, valuable solution for many manufacturing lines. Made from premium-quality polyurethane materials, PU rods are cylindrical in shape and come in varying thicknesses, depending on the specific requirements of your project.
There are numerous features that make PU rods highly effective. However, some of the most common features include versatility (PU rods often come in variable shore hardness levels between 40 and 90°A). Furthermore, PU rods can come in several colors, offer excellent resistance to many chemicals, and are ideal for heavy-duty applications thanks to their superior durability compared to traditional materials, such as rubber. Finally, they are also highly stable in extremes of temperature, making them easy to apply in many scenarios and environments.
| Description | |||
|---|---|---|---|
| ITEM No. | Specification | ||
| RDB01030 | OD : 10mm | x | L : 300mm |
| RDB01230 | OD : 12mm | x | L : 300mm |
| RDB01430 | OD : 14mm | x | L : 300mm |
| RDB01530 | OD : 15mm | x | L : 300mm |
| RDB01650 | OD : 16mm | x | L : 500mm |
| RDB01850 | OD : 18mm | x | L : 500mm |
| RDB02050 | OD : 20mm | x | L : 500mm |
| RDB02250 | OD : 22mm | x | L : 500mm |
| RDB02550 | OD : 25mm | x | L : 500mm |
| RDB02850 | OD : 28mm | x | L : 500mm |
| RDB03050 | OD : 30mm | x | L : 500mm |
| RDB03250 | OD : 32mm | x | L : 500mm |
| RDB03550 | OD : 35mm | x | L : 500mm |
| RDB04050 | OD : 40mm | x | L : 500mm |
| RDB04550 | OD : 45mm | x | L : 500mm |
| RDB05050 | OD : 50mm | x | L : 500mm |
| RDB05550 | OD : 55mm | x | L : 500mm |
| RDB06050 | OD : 60mm | x | L : 500mm |
| RDB06350 | OD : 63mm | x | L : 500mm |
| RDB06550 | OD : 65mm | x | L : 500mm |
| RDB07050 | OD : 70mm | x | L : 500mm |
| RDB07550 | OD : 75mm | x | L : 500mm |
| RDB08050 | OD : 80mm | x | L : 500mm |
| RDB08550 | OD : 85mm | x | L : 500mm |
| RDB09050 | OD : 90mm | x | L : 500mm |
| RDB09550 | OD : 95mm | x | L : 500mm |
| RDB10050 | OD : 100mm | x | L : 500mm |
| RDB11050 | OD : 110mm | x | L : 500mm |
| RDB12050 | OD : 120mm | x | L : 500mm |
| RDB12550 | OD : 125mm | x | L : 500mm |
| RDB13050 | OD : 130mm | x | L : 500mm |
| RDB14050 | OD : 140mm | x | L : 500mm |
| RDB15050 | OD : 150mm | x | L : 500mm |
| RDB16050 | OD : 160mm | x | L : 500mm |
| RDB17050 | OD : 170mm | x | L : 500mm |
| RDB17550 | OD : 175mm | x | L : 500mm |
| RDB18050 | OD : 180mm | x | L : 500mm |
| RDB20050 | OD : 200mm | x | L : 500mm |
| RDB22550 | OD : 225mm | x | L : 500mm |
| RDB25050 | OD : 250mm | x | L : 500mm |
| RDB27550 | OD : 275mm | x | L : 500mm |
| RDB30050 | OD : 300mm | x | L : 500mm |
| Physical Properties | ||||||
|---|---|---|---|---|---|---|
| Hardness, Shore A | 90 | |||||
| 100% Modulus, psi | 1330 | |||||
| 300% Modulus, psi, psi | 2380 | |||||
| Tensile, psi | 5475 | |||||
| Elongation, % | 431 | |||||
| Tear Strength (D624), pli Die C | 293 | |||||
| Tear Strength (D1938), pli Die C | 125 | |||||
| Bashore Rebound, % | 42 | |||||
| Compression Set (22 hrs @ 70℃), % | 32 | |||||
| Bell Brittle, ℃ | >62 | |||||
| Specific Gravity, g/cm3 | 1.13 | |||||
| Notice: These values are based on the test of our present laboratory test specimens. | ||||||
|
