Fully Automatic Heat Shrink Machine for Paper Rolls 30-90mm Diameter

Categories Paper Making Machine
Brand Name: FOCUS
Model Number: FMPM
Certification: SGS, FSC,ISO
Place of Origin: China
MOQ: 1
Payment Terms: T/T, L/C
Packaging Details: Sea-Worthy Wooden Case
Product name: Heat shrink packaging machine
Function: Used for small thermal paper rolls packaging
Voltage: 220V/50-60Hz
Power: 1.5kw
Dimension size: 1900*1030*1430mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fully Automatic Heat Shrink Machine for Paper Rolls 30-90mm Diameter

AUTOMATIC HEAT SHRINKABLE PACKAGING MACHINE
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Specification
Paper roll diameter
30-90mm
Paper roll length
35-90mm
Transmission belt length
125mm
Breaking off speed
125 times/min(max)
Flat punching speed
125 times/min(max)
Transmission belt speed
40-500mm/s
Plastic package propelling speed
22 times/min(max)
Plastic package propelling length
30-400mm
Voltage
220V/50HZ
Machine weight
380kg
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Technical parameters of the cutting machine
model number
FQL550
current source
220V/50-60Hz
rate of work
1.5KW
air supply
0.6-0.8Mpa
Maximum package size L+H(H<150mm)
<600mm
Maximum package size W+H(H<150mm)
<400mm
L * W Cutter size
670*570mm
Applicable shrinkagefilm
POF/PE
production rate
15-25bags/min
Shrinkage ratioof optimal film
50%~60%
Table height
780mm

(adjustable)
Weight(kg)
350
outline dimension
1900°1030*1430mm
Woodencabinet size (length x width x height)
1950x1100x1650mm

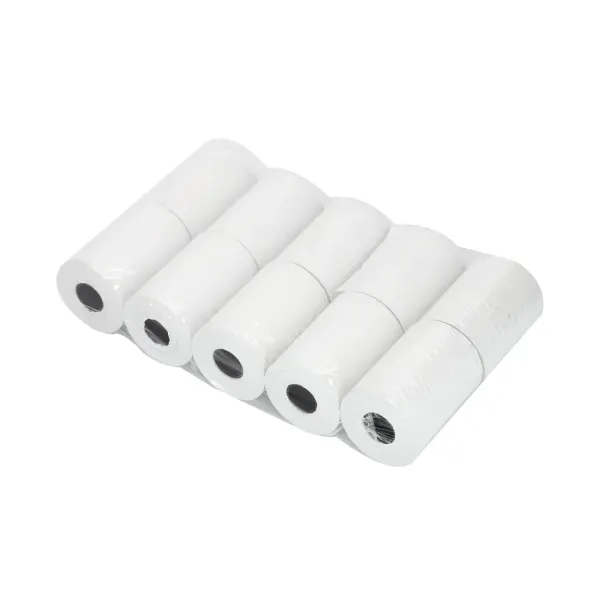

Finished rolls
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Company Profile
Focus Brand The Automatic Heat Shrinkable Packaging Machine
QINGDAO FOCUS Machinery Co., Ltd.
Qingdao FOCUS MACHINERY Co., Ltd, founded in 1990s, was dedicated to manufacture paper machines and provide production line for paper industry.
Based on leading technologies, experiences and knowhow, we could meet a variety of requirements and offer turn key projects.
We are also one of the subsidiary companies of Goodwill Group Limited who was founded in U.K.Since we built more than 30 successful production lines and exporting lots of machines in South America, Asia, Africa, Europe, etc., more customers desired to visit us personally, not only check capacity but also to see our machines how to work and paper quality made by them, so 15 years ago we built paper factory by machines and production lines we produced and designed.
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Why Choose Us?
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Focus Brand The Automatic Heat Shrinkable Packaging Machine
Focus Brand The Automatic Heat Shrinkable Packaging Machine
