3.7V Lithium Battery Cable Tester - Network Line Tester with LCD Display for RJ45/Phone Wires, Portable Wire Detector Tool

Categories Distance measuring instrument
warranty: 1 Year
customized support: OEM, ODM, OBM
Place of Origin: Guangdong, China
Brand Name: RONGCE
material: ABS+ELECTRONIC
color: OTHER
power: Battery
Storage temperature: 14~122°F (-10~50°C)
Application: PoE Splitter
Cable length measurement range: 2~500m
Use: Network line finder Line finder
Low pressure tips: 3.5v+/-0.1v
Network: wifi, Wireless Lan, Wired LAN
Power: 3.7v 1400mAh lithium battery
LCD display: 128*64 Dot-matrix with backlight
Wiremap Cable type: CAT5,CAT6 (STP & UTP)
NCV: AC 70V~1000V 50/60Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3.7V Lithium Battery Cable Tester - Network Line Tester with LCD Display for RJ45/Phone Wires, Portable Wire Detector Tool

3.7V Lithium Battery Cable Tester - Network Line Tester with LCD Display for RJ45/Phone Wires, Portable Wire Detector Tool

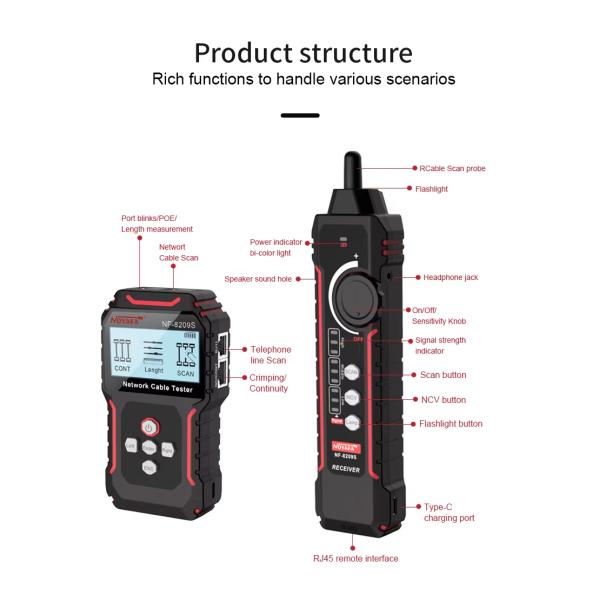

Product Overview

Feature

1.Dual scan modes selectable: AC filter & Non AC filter.
2.Detect AC voltage presence (70V-1000V).
3.Test physical status for STP, UTP lan cable.
4.Measure cable length accurately , the range is 500m.
5.Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
6.PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).
7.Quallity verify the crimping crystal.

Specification

MaterialABS
Package Weight460g / 16.23oz
Package Size23 * 16.5 * 4.5cm / 9.06 * 6.50 * 1.77in
LCD Display128*64 dot-matrix with backlight
Power Supply3.7v 1400mAh lithium battery
Auto-off Time15min/30min/60min/OFF
Voltage ProtectionDC48V, 5mA
Max. Working Current<150mA
Size125 * 70 * 32mm / 4.92 * 2.76 * 1.26in
Cable TypeCAT5, CAT6, (STP & UTP)
Test with Switch DirectlyYes
Max. Range600m
Product Description
