| Categories | HD TFT LCD Display |
|---|---|
| Brand Name: | OEM/Customized |
| Model Number: | ZH101HH058-01 |
| Certification: | ROHS、ISO9001、CE |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500K pcs/ Month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | Foam Cotton And Carton Boxes |
| Size: | 10.1 Inch |
| Resolution: | 1280x800 |
| Brightness: | 1000 cd/m² （Typ.） |
| Display type: | IPS, Normally Black |

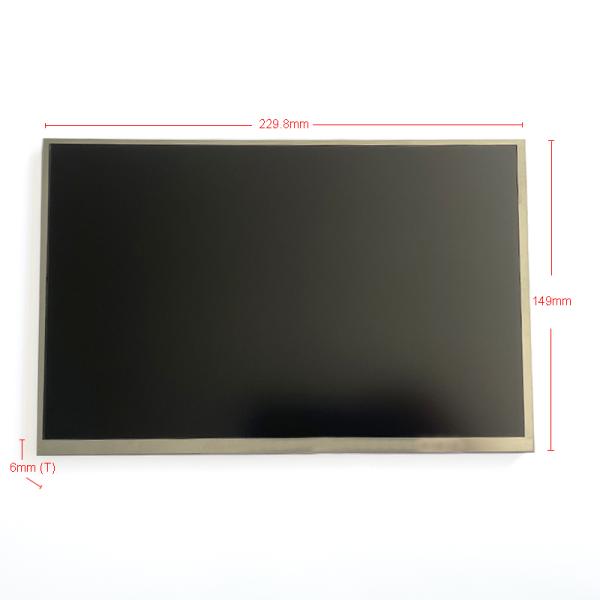

| Outline Dimensions: | 229.8(W) x149.0(H) x 6.0(T) mm |
| Operating Temperature: | -20℃~+70℃ |
| Company Info. |
| Shenzhen Zhanhui Photoelectric Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
10.1 Inch Resolution 1280x800 HD TFT LCD Display Optional CTP
The ZH101HH058-01 10.1 Inch HD TFT LCD Display offers high-quality, reliable, and energy-efficient performance with a 1000 cd/m² brightness and 1280x800 resolution. Featuring IPS technology for wide viewing angles and vivid color reproduction, this HD TFT LCD Display is ideal for industrial control systems, digital signage, POS terminals, and embedded applications. With its 50,000-hour lifetime and wide operating temperature range, it is engineered for long-term use in challenging environment.
The 1000 cd/m² brightness ensures that your content remains visible even in high ambient light conditions, such as industrial spaces, control rooms, and digital signage applications. This HD TFT LCD Display guarantees clarity and readability, even in bright environments.
Wide Operating Temperature Range
Designed to operate in a wide temperature range of -20℃ to +70℃,
the ZH101HH058-01 is built for use in harsh environments. Whether
placed in a factory, outdoor kiosk, or vehicle system, this HD TFT
LCD Display performs reliably, even in temperature extremes.
Optional Touch Panel for Interactive Use
The optional touch panel enhances the interactivity of the
ZH101HH058-01, making it perfect for self-service kiosks, POS
systems, digital signage, and other interactive applications. The
touch panel offers high precision and responsiveness, providing an
enhanced user experience.
Product Specification
| Item Number | ZH101HH058-01 |
| Screen Size | 10.1 Inch |
| Resolution | 1280x800 |
| Brightness | 1000 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Lifetime | 50,000 Hrs (Typ.) |
| Interface | LVDS, 40pins connector |
| Active Aera | 216.96(W) x 135.6(H) mm |
| Outline Dimension | 229.8(W) x149.0(H) x 6.0(T) mm |
| Backlight | 40-Chip White LED, 300mA 23V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our
salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD
Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP
touch modules manufacturers is the level of customization we offer.
There is no limit to what we can create when we take on a custom
project!
Upgrade your device visibility with this premium HD TFT LCD Module!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
|
