F-Axis Adjustable Incremental Encoder Module with Integrated Switch

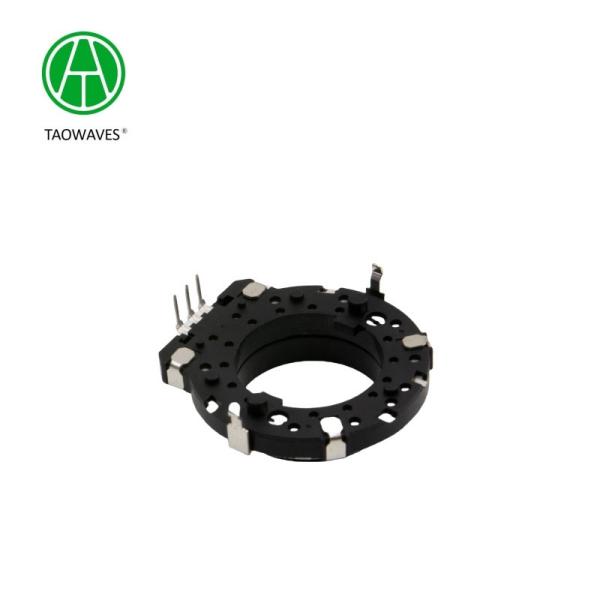

F-Axis Adjustable Incremental Encoder Module with Integrated Switch

F-Axis Adjustable Incremental Encoder Module with Integrated Switch
F-Axis Adjustable Incremental Encoder Module with Integrated Switch
Categories Incremental Encoder
Model NO.: EC30A00V02
Readout Mode: Contact
Operating System: Contact Brush Type
Signal Output: Voltage Output
Axle Sleeve Type: Empty Type
Package: -
Installation Form: -
Brand: Taowaves
Axonia: -
Customized: Support Customization
Transport Package: Carton
Specification: 30mm
Trademark: TAOWAVES
Origin: China
Customization: Available
Type: Rotary Encoder
Working Principle: Incremental
Contact Now
Company Info.
Dongguan Taotao Electronics Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

F-Axis Adjustable Incremental Encoder Module with Integrated Switch

High quality 30mm incremental encoder Hollow shaft 16 pulses rotary Encoder for microwave
F-Axis Adjustable Incremental Encoder Module with Integrated Switch
EC30 Series Product Specifications
1.Electrical Characteristics
Rated voltage:DC 5V
Resolution:16pulses/360°
Insulation resistance:10MΩ Min at DC 50V
Dielectric strength:1 minute at AC300V
Phase Difference:16≥5.0ms
2.Mechanical Characteristics
Total ratational angle:360°(Endless)
Detent torque:2±20mN.m.(20-200gf.cm)
Shaft wobble:1.0*L/30mm p-p Max(L:shaft length)
Push-Pull Strength of shaft10N
3.Endurance Characteristics
Rotational life:30,000cycles
Operating temperature range:-20ºC to 80ºC
Storage temperature range:-40ºC to+85ºC


Our Factory
F-Axis Adjustable Incremental Encoder Module with Integrated SwitchF-Axis Adjustable Incremental Encoder Module with Integrated SwitchF-Axis Adjustable Incremental Encoder Module with Integrated SwitchApplication:
F-Axis Adjustable Incremental Encoder Module with Integrated Switch

F-Axis Adjustable Incremental Encoder Module with Integrated Switch
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
