Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness

Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness

Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness
Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness
Categories Edge Banding Machine
Place of Origin: China
Brand Name: Rensolin
Packaging Details: Wrapped film or wooden box
Supply Ability: 300Sets/Month
Price: $7,000.00/sets 1-4 sets
Certification: CE,ISO
MOQ: 1Set
Delivery Time: 5-7days
Payment Terms: T/T
Voltage: 220/380/415v, 220/380/415v
Dimension(L*W*H): 5000*750*1600mm
Power (kW): 12.21kw
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Other
Warranty: 2 years
Key Selling Points: Automatic
Contact Now
Company Info.
Qingdao Run Sheng Lin Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic Woodworking Corner Rounding Edge Banding Machine with 0.4-3mm Edge Thickness

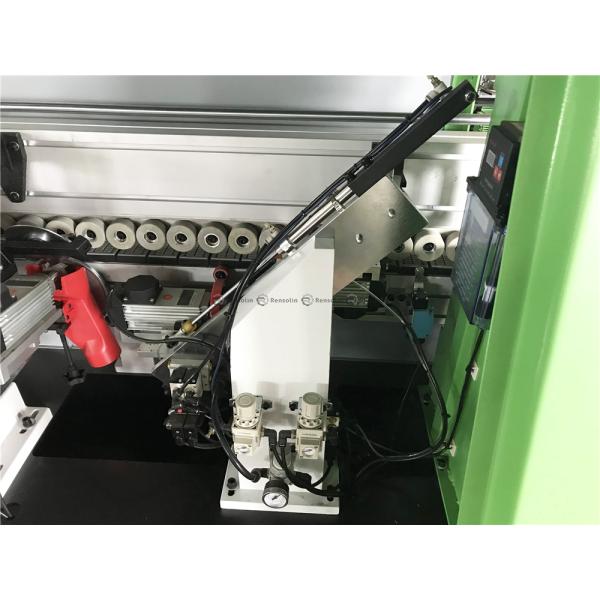

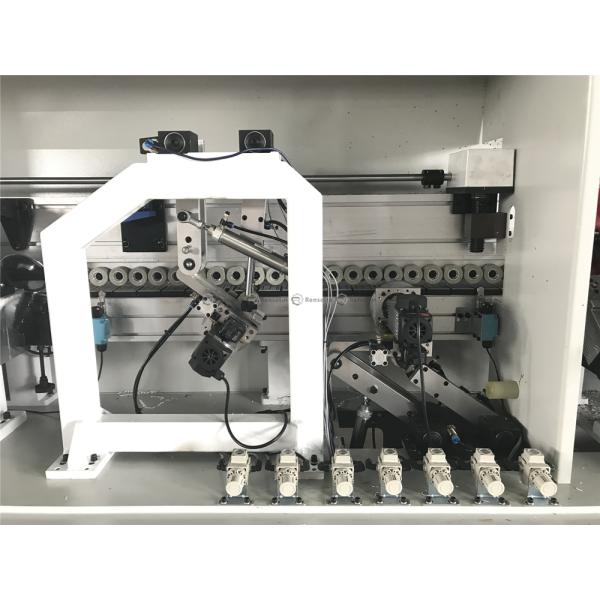

Products picture
Specification
Name
Edge Banding Machine
Model
RSL550ADF
Panel thickness
10-60mm
Belt thickness
0.4-3mm
Min. width of panel
>=60mm
Min. width of panel
>=50mm
Belt thickness
15-65mm
Conveyor speed
15-23meters/min
Total power
12.21KW
Air pressure
0.8Mpa
Voltage
380V/220v/415v
Weight
2300KG
Overall dimensions
5600*750*1600MM
Products Display

High efficiency and stability

1.PLC microcomputer controlled three-speed regulating
preheating function.Low speed :13 m/min Medium speed :
18 m/min High speed :25 m/min Efficiency greatly improved at the same time, edge sealing effect is not affected by any, high-match models can achieve high stability.

Glue evenly bond firm

2.Gluing and pressing
Through the processing center of the one-time forming of the glue pot heating sol, using the spiral structure of glue feeding, so that the plate uniformly coated with glue, after the press wheel sealing strip and plate pressed, so that the adhesive force is more firm..

German high matching technology cutting surface smooth

3.End cutting
Adopt high matching German technology, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive

Reduce the cutting force and wear of the finishing tool

4.Rough Trimming
It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm. If sealing PVC,acrylic and wood veneer, it must be roughened to reduce the cutting force and wear of the finishing tool

Not seal edge strip surface dark mark

5.Fine Trimming
Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip (such as acrylic edge strip), will not seal edge strip surface dark mark, and the use of flat repair process, the surface will produce dark mark.

The end face of plate more smooth

6. Round Corner
Adopt high speed motor, can make the end face of plate more smooth.

The arc angle can be adjusted

7.Scraping
It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.

Cotton polishing wheel

8.Buffing
Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing
9.Customizing Plus Features
①Vertical Slotting Function
It can be used for grooving the back plate, and it is more convenient to finish the edge sealing and grooving at one time.
②Horizontal slotting function
Can be used for wardrobe side board, floor and other direct slotting, can also be used for door aluminum edge slotting, reducecutting board saw or end milling machine process.
③ Pre-milling
Double milling cutter is used to modify the ripple marks caused by cutting board saw, and the burr is modified again to achieve better sealing effect.
